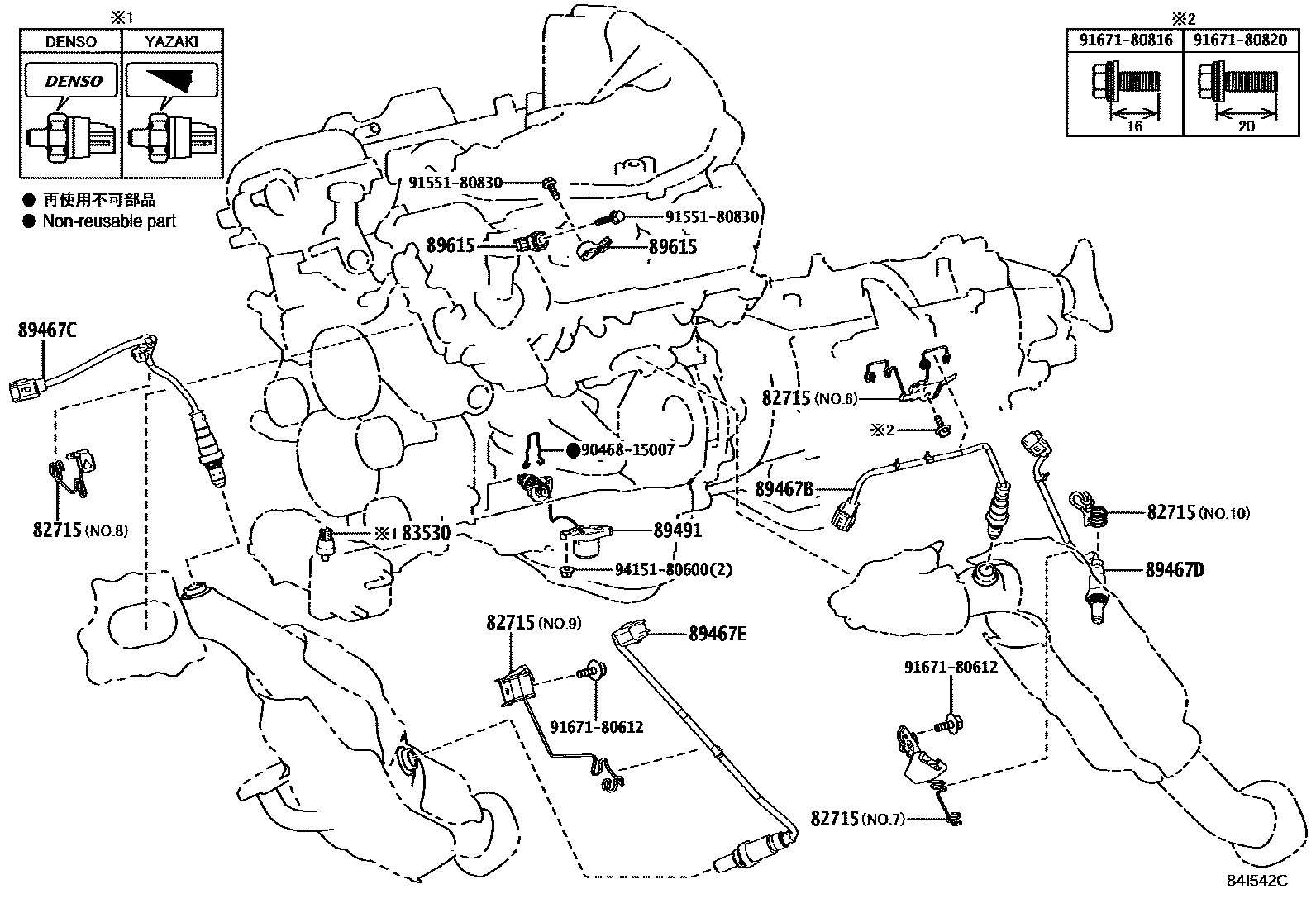

82715BRACKET,WIRING HARNESS CLAMP

main82715-11060iGSF50202011-202410

NO.8

main82715-11070iGSF50202011-202410

NO.7

main82715-44510iGSF50,GVF5#201710-202010

NO.10

main82715-50F20iGSF50202011-202410

NO.9

main82715-50F30iGVF5#201710-202010

NO.11

main82715-50F40iGVF55201710-202010

NO.12

main82715-50F50iVXFA55201712-202010

NO.1

main82715-50F60iVXFA55202011-202410

NO.2

main82715-50F90iVXFA55201712-202010

NO.4

main82715-50G00iVXFA55202011-202410

NO.5

main82715-50G10iGVF5#202011-202509

NO.6

main82715-50M20iGSF50,VXFA55202011-202410

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSF50,GVF5#,VXFA55201710-202010

DENSO,*369

main83530-60020iGSF50,VXFA55202011-202410

YAZAKI,*369

89467BSENSOR, AIR FUEL RATIO

main89467-11010iGSF50,GVF5#201710-202010

main89467-50110iVXFA55202011-202410

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-11020iGSF50202011-202410

main89467-50120iVXFA55202011-202410

89467DSENSOR, AIR FUEL RATIO, NO.3

main89467-11030iGSF50,GVF50201710-202010

main89467-50100iGVF55201710-202010

main89467-50150iVXFA55202011-202410

89467ESENSOR, AIR FUEL RATIO, NO.4

main89467-11040iGVF5#201710-202010

main89467-50090iGSF50202011-202410

main89467-50160iVXFA55202011-202410

89491SENSOR, ENGINE OIL LEVEL

main89491-30100iGSF50,GVF5#201710-201808

main89491-30101iGVF5#202011-202509

main89491-50080iVXFA55201712-201805

main89491-50081iVXFA55201806-202010

main89491-50082iVXFA55202205-202410

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGSF50,VXFA55202011-202410

9046815007

main90468-15007

9155180830

main91551-80830

9167180612

main91671-80612

9167180816

main91671-80816

9167180820

main91671-80820

9415180600

main94151-80600

14 parts on this diagram · 34 diagrams in section
