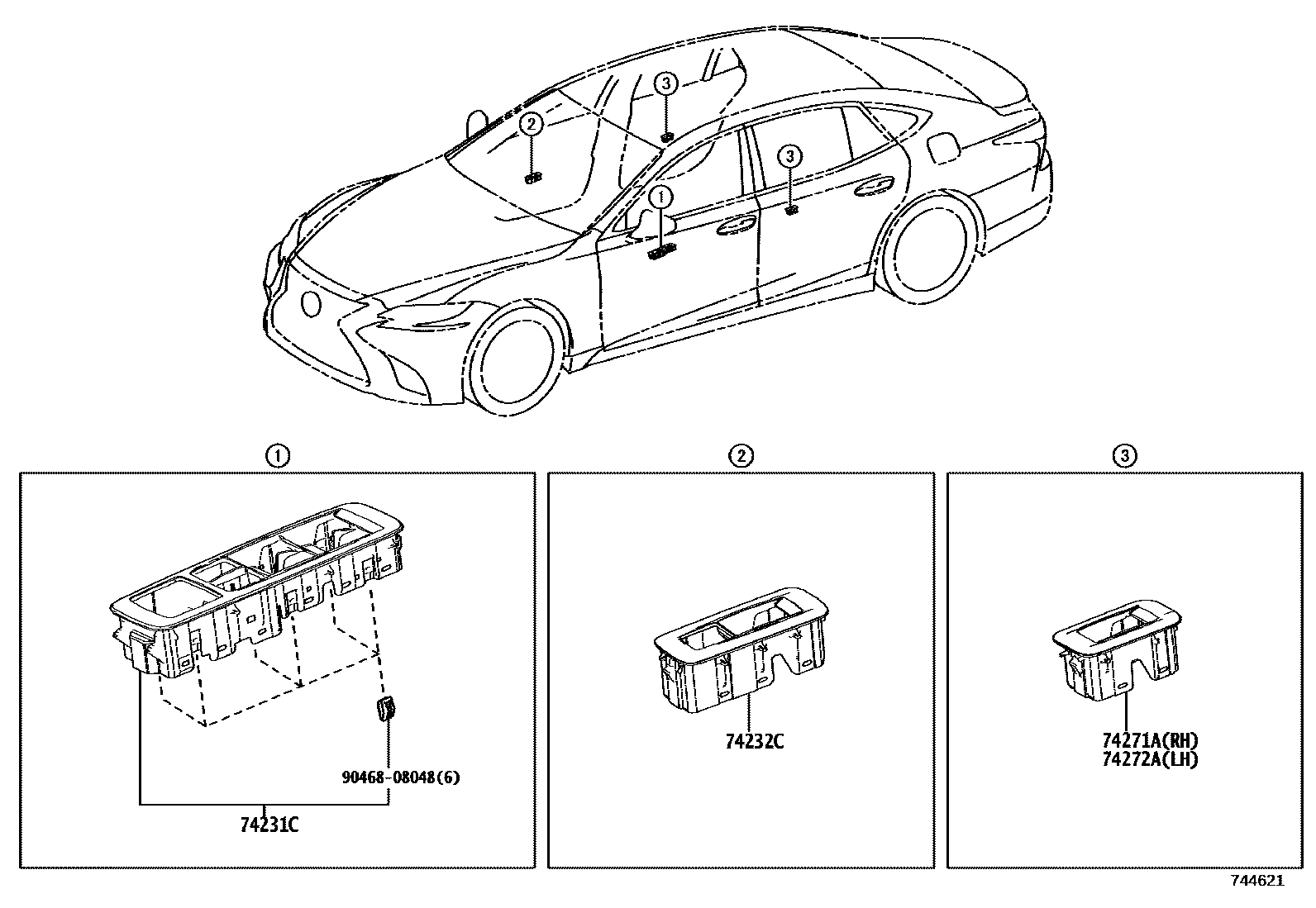

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74232-50230iGSF50,GVF5#,VXFA55201710-202010

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-50290iGSF50,GVF5#,VXFA55201710-202010

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-48110iGSF50,GVF5#,VXFA55201710-201910

main74271-48111iGVF5#202011-202509

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74271-48110iGSF50,GVF5#,VXFA55201710-201910

main74271-48111iGSF50,VXFA55202011-202410

9046808048

main90468-08048

5 parts on this diagram · 3 diagrams in section
