REAR DOOR LOCK & HANDLE

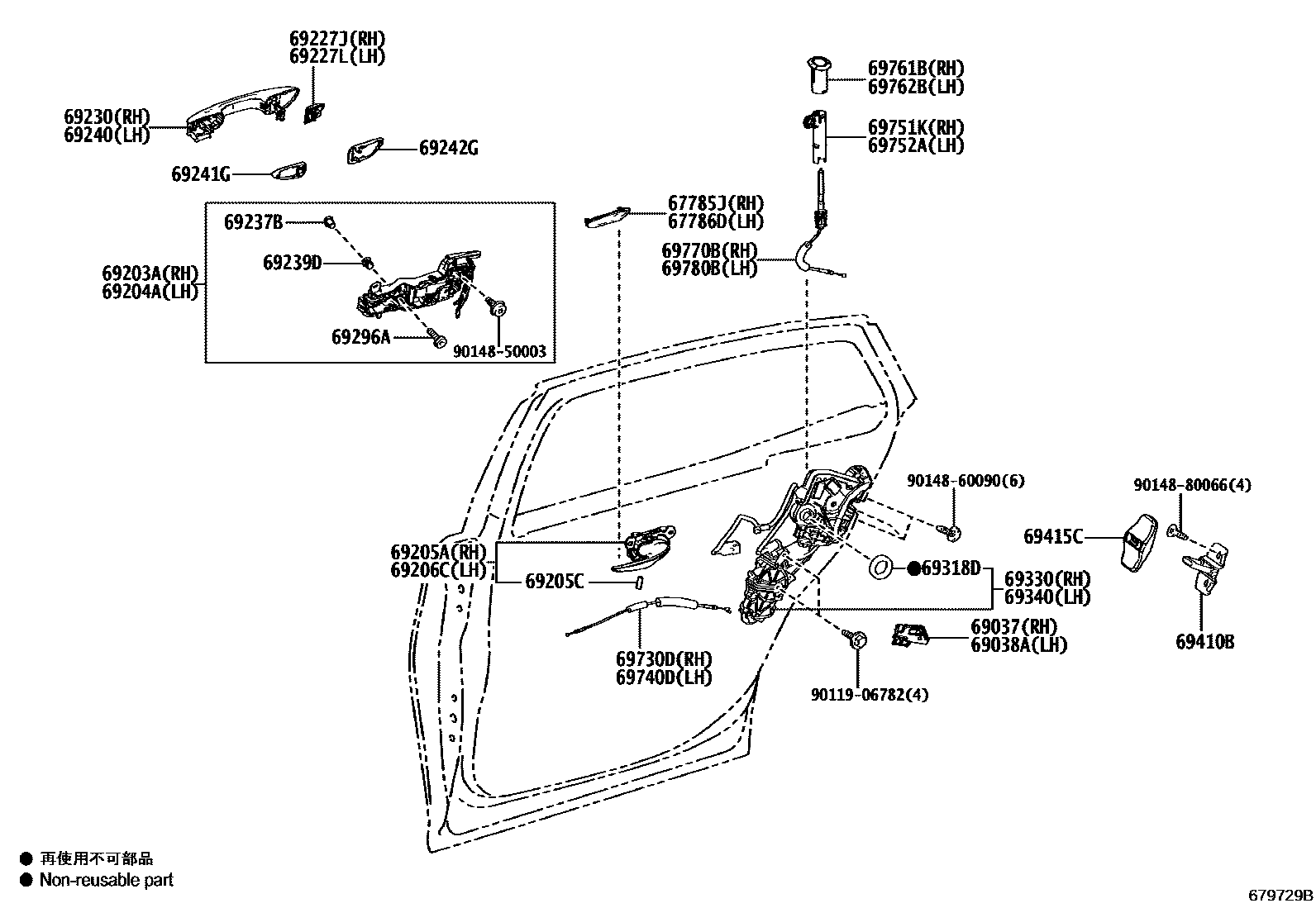

Parts diagram
67785JCOVER, REAR DOOR TRIM, UPPER RH
main67785-50020i202011-202410
67786DCOVER, REAR DOOR TRIM, UPPER LH
main67786-50020i202011-202410
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
main69037-30010i201710-202010
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
main69038-30010i202011-202410
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-50060i201710-201809
main69203-50061i201809-202010
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-50060i201710-201809
main69204-50061i202011-202509
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69270-50030i201710-202010
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main69275-30070×2i201808-202010
main90541-07050×2i201710-201807
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69280-50030i201710-202010
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-50060i202011-202410
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69228-50040i202011-202509
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-50070-A0i201710-201808
WHITE NOVA GF.,083
main69210-50070-A1i201710-201808
SONIC QUARTZ,085
main69210-50070-B0i201710-201808
SONIC SILVER,1J2
main69210-50070-B1i201710-201808
SONIC TITANIUM,1J7
main69210-50070-B2i201710-201808
MANGANESE LUSTER,1K2
main69210-50070-C0i201710-201808
BLACK,212
main69210-50070-C1i201710-201808
GRAPHITE BLACK GF.,223
main69210-50070-D0i201710-201808
RED MC.CS.,3R1
main69210-50070-D1i201710-201808
SONIC AGATE,3U3
main69210-50070-E0i201710-201808
SLEEK ECRU ME.,4U7
main69210-50070-E1i201710-201808
AMBER CS.,4X2
main69210-50070-J0i201710-201808
HEAT BLUE CONTRAST LAYERI,8X1
main69210-50070-J1i201710-201808
DEEP BLUE MC.,8X5
main69210-50071-A0supersedes 69210-50101-A0i201809-202010
WHITE NOVA GF.,083
main69210-50071-A1supersedes 69210-50101-A1i201809-202010
SONIC QUARTZ,085
main69210-50071-B0i201809-202010
SONIC SILVER,1J2
main69210-50071-B1supersedes 69210-50101-B1i201809-202010
SONIC TITANIUM,1J7
main69210-50071-B2supersedes 69210-50101-B2i202011-202509
MANGANESE LUSTER,1K2
main69210-50071-B3supersedes 69210-50101-B3i202011-202509
SONIC IRIDIUM,1L2
main69210-50071-B4supersedes 69210-50101-B4i202011-202509
I SILVER,1L3
main69210-50071-C0supersedes 69210-50101-C0i201809-202010
BLACK,212
main69210-50071-C1supersedes 69210-50101-C1i201809-202010
GRAPHITE BLACK GF.,223
main69210-50071-D0supersedes 69210-50101-D0i201809-202010
RED MC.CS.,3R1
main69210-50071-D1supersedes 69210-50101-D1i202011-202509
SONIC AGATE,3U3
main69210-50071-E0i201809-202010
SLEEK ECRU ME.,4U7
main69210-50071-E1i201809-201909
AMBER CS.,4X2
main69210-50071-G0i201909-202010
TERRANE KHAKI M.M.,6X4
main69210-50071-J0supersedes 69210-50101-J0i202011-202410
HEAT BLUE CONTRAST LAYERI,8X1
main69210-50071-J1supersedes 69210-50101-J1i202011-202509
DEEP BLUE MC.,8X5
main69210-50100-A0i201710-201808
RUSSIA SPEC,WHITE NOVA GF.,083
main69210-50100-A1i201710-201808
RUSSIA SPEC,SONIC QUARTZ,085
main69210-50100-B0i201710-201808
RUSSIA SPEC,SONIC SILVER,1J2
main69210-50100-B1i201710-201808
RUSSIA SPEC,SONIC TITANIUM,1J7
main69210-50100-B2i201710-201808
RUSSIA SPEC,MANGANESE LUSTER,1K2
main69210-50100-C0i201710-201808
RUSSIA SPEC,BLACK,212
main69210-50100-C1i201710-201808
RUSSIA SPEC,GRAPHITE BLACK GF.,223
main69210-50100-D0i201710-201808
RUSSIA SPEC,RED MC.CS.,3R1
main69210-50100-D1i201710-201808
RUSSIA SPEC,SONIC AGATE,3U3
main69210-50100-E0i201710-201808
RUSSIA SPEC,SLEEK ECRU ME.,4U7
main69210-50100-E1i201710-201808
RUSSIA SPEC,AMBER CS.,4X2
main69210-50100-J0i201710-201808
RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main69210-50100-J1i201710-201808
RUSSIA SPEC,DEEP BLUE MC.,8X5
main69210-50101-A0i201809-202010
RUSSIA SPEC,WHITE NOVA GF.,083
main69210-50101-A1i201809-202010
RUSSIA SPEC,SONIC QUARTZ,085
main69210-50101-B0i201809-202010
RUSSIA SPEC,SONIC SILVER,1J2
main69210-50101-B1supersedes 69210-50071-B1i202011-202310
RUSSIA SPEC,SONIC TITANIUM,1J7
main69210-50101-B2i201809-202010
RUSSIA SPEC,MANGANESE LUSTER,1K2
main69210-50101-B3supersedes 69210-50071-B3i202011-202310
RUSSIA SPEC,SONIC IRIDIUM,1L2
main69210-50101-B4supersedes 69210-50071-B4i202011-202310
RUSSIA SPEC,I SILVER,1L3
main69210-50101-C0supersedes 69210-50071-C0i202011-202310
RUSSIA SPEC,BLACK,212
main69210-50101-C1supersedes 69210-50071-C1i202011-202310
RUSSIA SPEC,GRAPHITE BLACK GF.,223
main69210-50101-D0i201809-202010
RUSSIA SPEC,RED MC.CS.,3R1
main69210-50101-D1supersedes 69210-50071-D1i202011-202310
RUSSIA SPEC,SONIC AGATE,3U3
main69210-50101-E0i201809-202010
RUSSIA SPEC,SLEEK ECRU ME.,4U7
main69210-50101-E1i201809-201909
RUSSIA SPEC,AMBER CS.,4X2
main69210-50101-J0supersedes 69210-50071-J0i202011-202310
RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main69210-50101-J1supersedes 69210-50071-J1i202011-202310
RUSSIA SPEC,DEEP BLUE MC.,8X5
69237BNUT, REAR DOOR HANDLE
main69237-62010×2i201710-202010
69239DBUSH, REAR DOOR HANDLE
main69239-47010×2i201710-202010
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69220-50040-A0i201710-201808
WHITE NOVA GF.,083
main69220-50040-A1i201710-201808
SONIC QUARTZ,085
main69220-50040-B0i201710-201808
SONIC SILVER,1J2
main69220-50040-B1i201710-201808
SONIC TITANIUM,1J7
main69220-50040-B2i201710-201808
MANGANESE LUSTER,1K2
main69220-50040-C0i201710-201808
BLACK,212
main69220-50040-C1i201710-201808
GRAPHITE BLACK GF.,223
main69220-50040-D0i201710-201808
RED MC.CS.,3R1
main69220-50040-D1i201710-201808
SONIC AGATE,3U3
main69220-50040-E0i201710-201808
SLEEK ECRU ME.,4U7
main69220-50040-E1i201710-201808
AMBER CS.,4X2
main69220-50040-J0i201710-201808
HEAT BLUE CONTRAST LAYERI,8X1
main69220-50040-J1i201710-201808
DEEP BLUE MC.,8X5
main69220-50041-A0supersedes 69220-50071-A0i202011-202509
WHITE NOVA GF.,083
main69220-50041-A1supersedes 69220-50071-A1i201809-202010
SONIC QUARTZ,085
main69220-50041-B0i201809-202010
SONIC SILVER,1J2
main69220-50041-B1supersedes 69220-50071-B1i201809-202010
SONIC TITANIUM,1J7
main69220-50041-B2supersedes 69220-50071-B2i202011-202509
MANGANESE LUSTER,1K2
main69220-50041-B3supersedes 69220-50071-B3i202011-202509
SONIC IRIDIUM,1L2
main69220-50041-B4supersedes 69220-50071-B4i202011-202509
I SILVER,1L3
main69220-50041-C0supersedes 69220-50071-C0i201809-202010
BLACK,212
main69220-50041-C1supersedes 69220-50071-C1i201809-202010
GRAPHITE BLACK GF.,223
main69220-50041-D0supersedes 69220-50071-D0i201809-202010
RED MC.CS.,3R1
main69220-50041-D1supersedes 69220-50071-D1i202011-202509
SONIC AGATE,3U3
main69220-50041-E0i201809-202010
SLEEK ECRU ME.,4U7
main69220-50041-E1i201809-201909
AMBER CS.,4X2
main69220-50041-G0i201909-202010
TERRANE KHAKI M.M.,6X4
main69220-50041-J0supersedes 69220-50071-J0i202011-202410
HEAT BLUE CONTRAST LAYERI,8X1
main69220-50041-J1supersedes 69220-50071-J1i201809-202010
DEEP BLUE MC.,8X5
main69220-50070-A0i201710-201808
RUSSIA SPEC,WHITE NOVA GF.,083
main69220-50070-A1i201710-201808
RUSSIA SPEC,SONIC QUARTZ,085
main69220-50070-B0i201710-201808
RUSSIA SPEC,SONIC SILVER,1J2
main69220-50070-B1i201710-201808
RUSSIA SPEC,SONIC TITANIUM,1J7
main69220-50070-B2i201710-201808
RUSSIA SPEC,MANGANESE LUSTER,1K2
main69220-50070-C0i201710-201808
RUSSIA SPEC,BLACK,212
main69220-50070-C1i201710-201808
RUSSIA SPEC,GRAPHITE BLACK GF.,223
main69220-50070-D0i201710-201808
RUSSIA SPEC,RED MC.CS.,3R1
main69220-50070-D1i201710-201808
RUSSIA SPEC,SONIC AGATE,3U3
main69220-50070-E0i201710-201808
RUSSIA SPEC,SLEEK ECRU ME.,4U7
main69220-50070-E1i201710-201808
RUSSIA SPEC,AMBER CS.,4X2
main69220-50070-J0i201710-201808
RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main69220-50070-J1i201710-201808
RUSSIA SPEC,DEEP BLUE MC.,8X5
main69220-50071-A0supersedes 69220-50041-A0i202011-202310
RUSSIA SPEC,WHITE NOVA GF.,083
main69220-50071-A1supersedes 69220-50041-A1i202011-202310
RUSSIA SPEC,SONIC QUARTZ,085
main69220-50071-B0i201809-202010
RUSSIA SPEC,SONIC SILVER,1J2
main69220-50071-B1i201809-202010
RUSSIA SPEC,SONIC TITANIUM,1J7
main69220-50071-B2i201809-202010
RUSSIA SPEC,MANGANESE LUSTER,1K2
main69220-50071-B3supersedes 69220-50041-B3i202011-202310
RUSSIA SPEC,SONIC IRIDIUM,1L2
main69220-50071-B4supersedes 69220-50041-B4i202011-202310
RUSSIA SPEC,I SILVER,1L3
main69220-50071-C0supersedes 69220-50041-C0i202011-202310
RUSSIA SPEC,BLACK,212
main69220-50071-C1supersedes 69220-50041-C1i202011-202310
RUSSIA SPEC,GRAPHITE BLACK GF.,223
main69220-50071-D0i201809-202010
RUSSIA SPEC,RED MC.CS.,3R1
main69220-50071-D1supersedes 69220-50041-D1i202011-202310
RUSSIA SPEC,SONIC AGATE,3U3
main69220-50071-E0i201809-202010
RUSSIA SPEC,SLEEK ECRU ME.,4U7
main69220-50071-E1i201809-201909
RUSSIA SPEC,AMBER CS.,4X2
main69220-50071-J0supersedes 69220-50041-J0i202011-202310
RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main69220-50071-J1i201809-202010
RUSSIA SPEC,DEEP BLUE MC.,8X5
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-50040i202011-202410
RH
main69242-50040i201710-202010
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-50050i202011-202410
RH
main69242-50050i202011-202509
LH
69296ASCREW, DOOR INSIDE HANDLE
main69296-30010×2i201710-202010
main90148-50006×2i202202-202410
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i202011-202509
69330LOCK ASSY, REAR DOOR, RH
main69050-50150i201710-202010
main69050-50140i202011-202310
INDIA SPEC
69340LOCK ASSY, REAR DOOR, LH
main69060-50150i202011-202509
main69060-50140i202011-202310
INDIA SPEC
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-50030×2i201710-202010
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-50020×2i202011-202509
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-50060i202011-202410
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-50060i202011-202509
69751KHOLDER, DOOR LOCK CONTROL KNOB, RH
main69751-50010i202011-202509
69752AHOLDER, DOOR LOCK CONTROL KNOB, LH
main69751-50010i202011-202410
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
main69761-50060-C0i202011-202410
BLACK,TRIM0#,1#,2#,36,38,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#
main69761-50060-D0i202011-202410
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
main69761-50060-E0i201710-202010
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
main69762-50050-C0i202011-202410
BLACK,TRIM0#,1#,2#,36,38,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#
main69762-50050-D0i202011-202410
CRIMSON,TRIM3#; CRIMSON,TRIM30,37
main69762-50050-E0i201710-202010
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-50100i202011-202410
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-50100i201710-202010
9011906782
main90119-06782
9014850003
main90148-50003
9014860090
main90148-60090
9014880066
main90148-80066

35 parts on this diagram · 1 diagram in section
