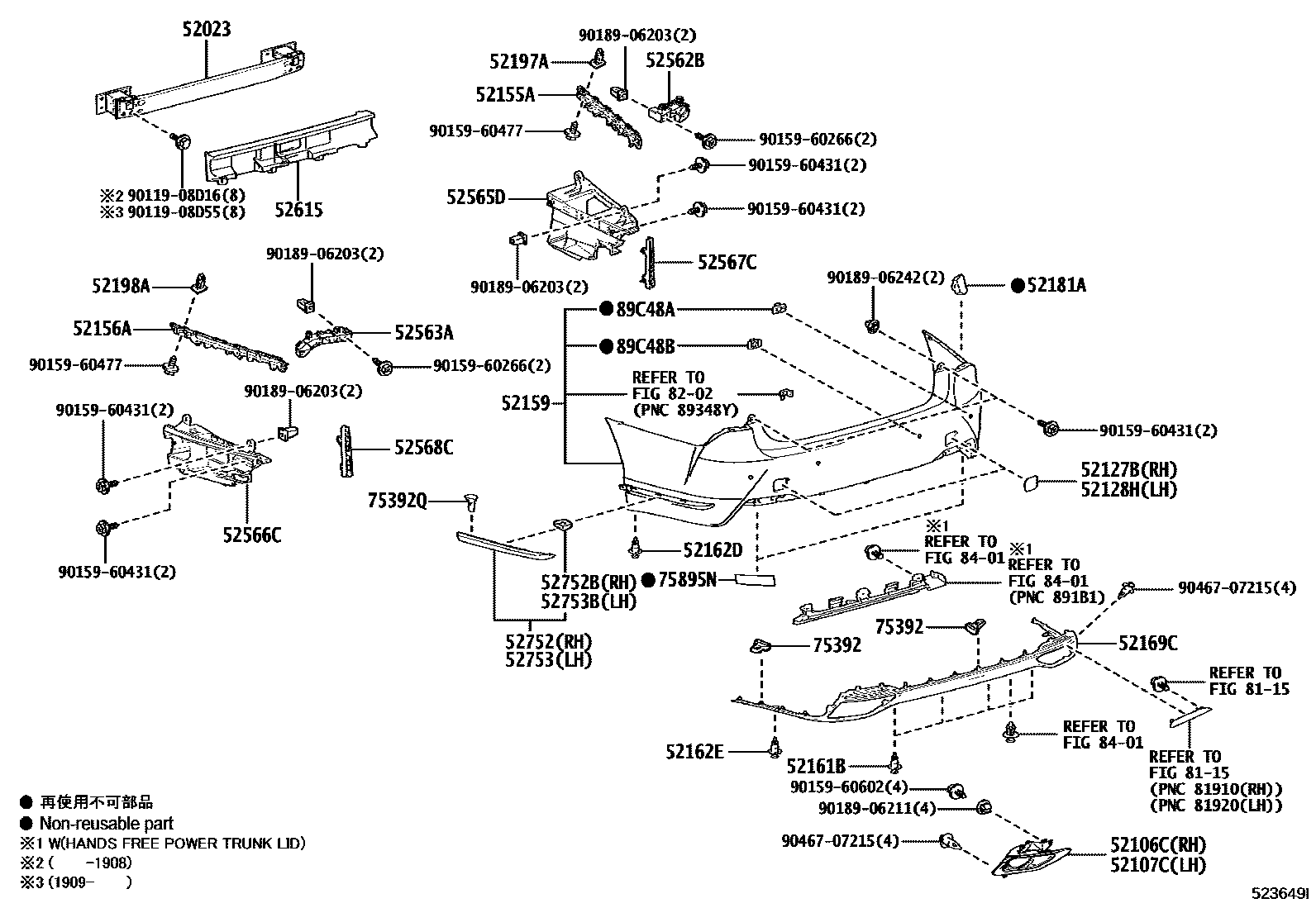

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52106CEXTENSION SUB-ASSY, REAR BUMPER, RH
52107CEXTENSION SUB-ASSY, REAR BUMPER, LH
52127BCOVER, REAR BUMPER HOLE, RH
RUSSIA SPEC
RUSSIA SPEC&"EXECUTIVE"*(E)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNKLID)
RUSSIA SPEC&"VERSION L"*(L)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNKLID)
RUSSIA SPEC&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID)
52128HCOVER, REAR BUMPER HOLE, LH
RUSSIA SPEC
RUSSIA SPEC&"EXECUTIVE"*(E)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNKLID)
RUSSIA SPEC&"VERSION L"*(L)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNKLID)
RUSSIA SPEC&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID)
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
RUSSIA SPEC&"F SPORT"*(F)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID)
KAZAKHSTAN SPEC&"F SPORT"*(F)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID)
"F SPORT"*(F)&LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID)
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
52181AARM, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52752MOULDING, REAR BUMPER SIDE, RH
PLATED
52752BCLIP, REAR BUMPER SIDE MOULDING
52753MOULDING, REAR BUMPER SIDE, LH
PLATED
52753BCLIP, REAR BUMPER SIDE MOULDING
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
75895NTAPE, MOULDING, NO.1
8115REFLEX REFLECTOR
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011908D16
main90119-08D16
9011908D55
main90119-08D55
9015960266
main90159-60266
9015960431
main90159-60431
9015960477
main90159-60477
9015960602
main90159-60602
9018906203
main90189-06203
9018906211
main90189-06211
9018906242
main90189-06242
9046707215
main90467-07215
44 parts on this diagram · 4 diagrams in section
