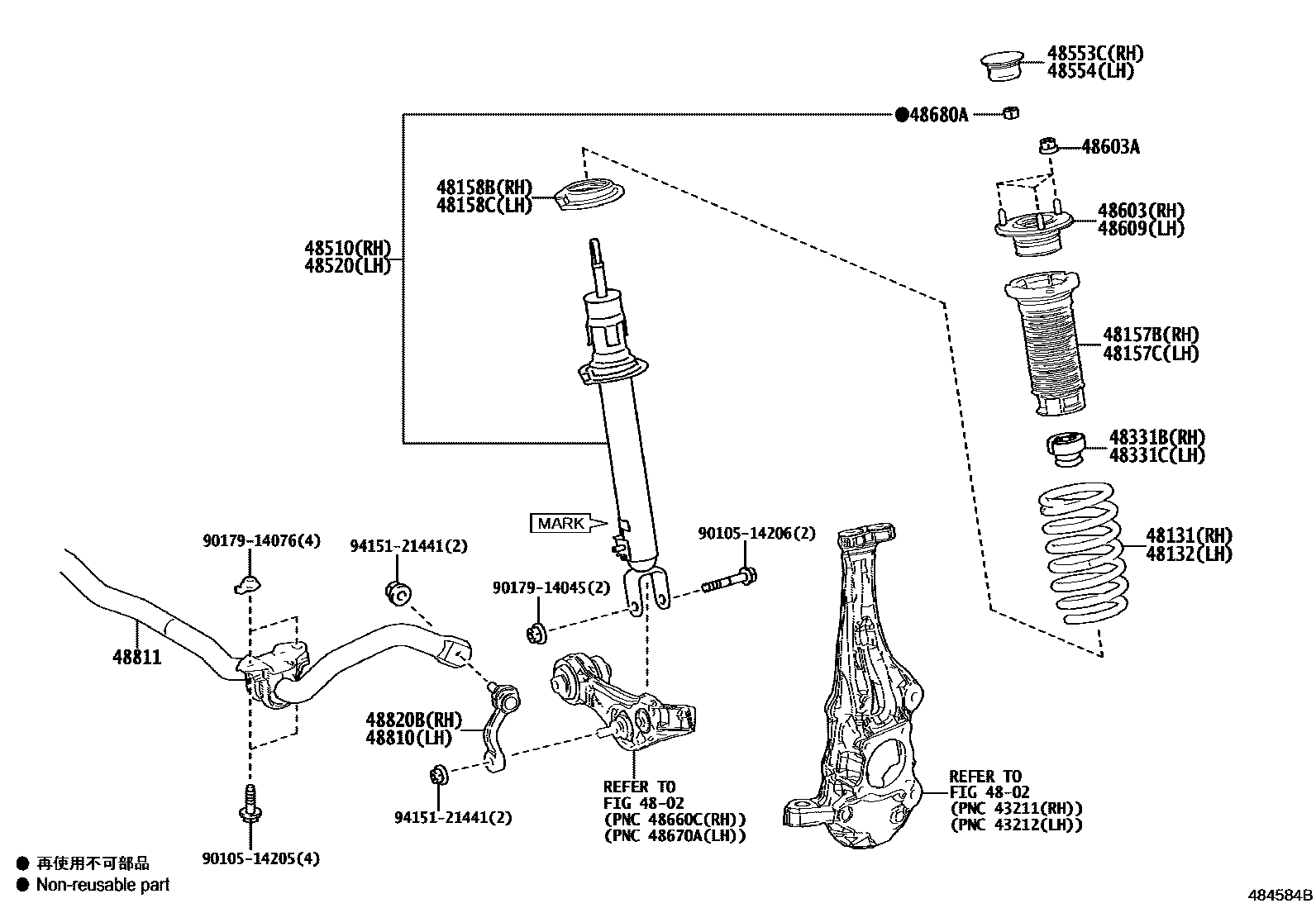

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-50271i201711-201909

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50291i201711-201909

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50360i201909-202010

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50270supersedes 48131-50360i201710-201711

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50280i201710-201711

SUSPENSION-COIL SPRING & *AVS

main48131-50281i201711-201909

SUSPENSION-COIL SPRING & *AVS

main48131-50290i201710-201711

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

48132SPRING, FRONT COIL, LH

main48131-50271i201711-201909

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50291i201711-201909

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50360i201909-202010

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50270supersedes 48131-50360i201710-201711

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

main48131-50280i201710-201711

SUSPENSION-COIL SPRING & *AVS

main48131-50281i201711-201909

SUSPENSION-COIL SPRING & *AVS

main48131-50290i201710-201711

"EXECUTIVE"*(E); "F SPORT"*(F); "VERSION L"*(L)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-50070i201710-201909

main48157-50090i201710-202010

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-50080i201710-201909

main48157-50090i201710-202010

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020i201710-201909

SUSPENSION-COIL SPRING & *AVS

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020i202011-202410

48331BBUMPER, FRONT SPRING, RH

main48331-50150i202011-202410

main48331-50160i201710-201909

48331CBUMPER, FRONT SPRING, LH

main48331-50150i202011-202410

main48331-50160i201710-201909

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80870i201710-201909

MARK 48510-50280; MARK 48510-50280,"EXECUTIVE"*(E); MARK 48510-50280,"F SPORT"*(F); MARK 48510-50280,"VERSION L"*(L)

main48510-80868i201710-202010

MARK 48510-50290; MARK 48510-50290,"EXECUTIVE"*(E); MARK 48510-50290,"F SPORT"*(F); MARK 48510-50290,"VERSION L"*(L)

main48510-80869i201710-201909

MARK 48510-50270,SUSPENSION-COIL SPRING & *AVS

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80543i201710-201909

MARK 48520-50040; MARK 48520-50040,"EXECUTIVE"*(E); MARK 48520-50040,"F SPORT"*(F); MARK 48520-50040,"VERSION L"*(L)

main48520-80541i202011-202212

MARK 48520-50050,"EXECUTIVE"*(E); MARK 48520-50050,"VERSION L"*(L)

main48520-80542i201710-201909

MARK 48520-50030,SUSPENSION-COIL SPRING & *AVS

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50150i201710-202010

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50150i201710-202010

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-11010i201710-202010

main48609-50050i201710-201909

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10033×6i201710-202010

main90178-10039×6i202306-202509

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-11010i201710-202010

main48609-50060i201710-201909

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002×2i201710-201909

SUSPENSION-COIL SPRING & *AVS

48810LINK ASSY, FRONT STABILIZER, LH

main48810-11010i202011-202410

main48810-50040i202011-202410

48811BAR, STABILIZER, FRONT

main48804-50020i201710-202010

main48804-50080supersedes 48804-50040i202011-202410

main48804-50090supersedes 48804-50050i202011-202403

"F SPORT"*(F)

main48804-50091supersedes 48804-50051i202404-202410

"F SPORT"*(F)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-11010i201710-202010

main48820-50050i202011-202509

9010514205

main90105-14205

9010514206

main90105-14206

9017914045

main90179-14045

9017914076

main90179-14076

9415121441

main94151-21441

25 parts on this diagram · 5 diagrams in section
