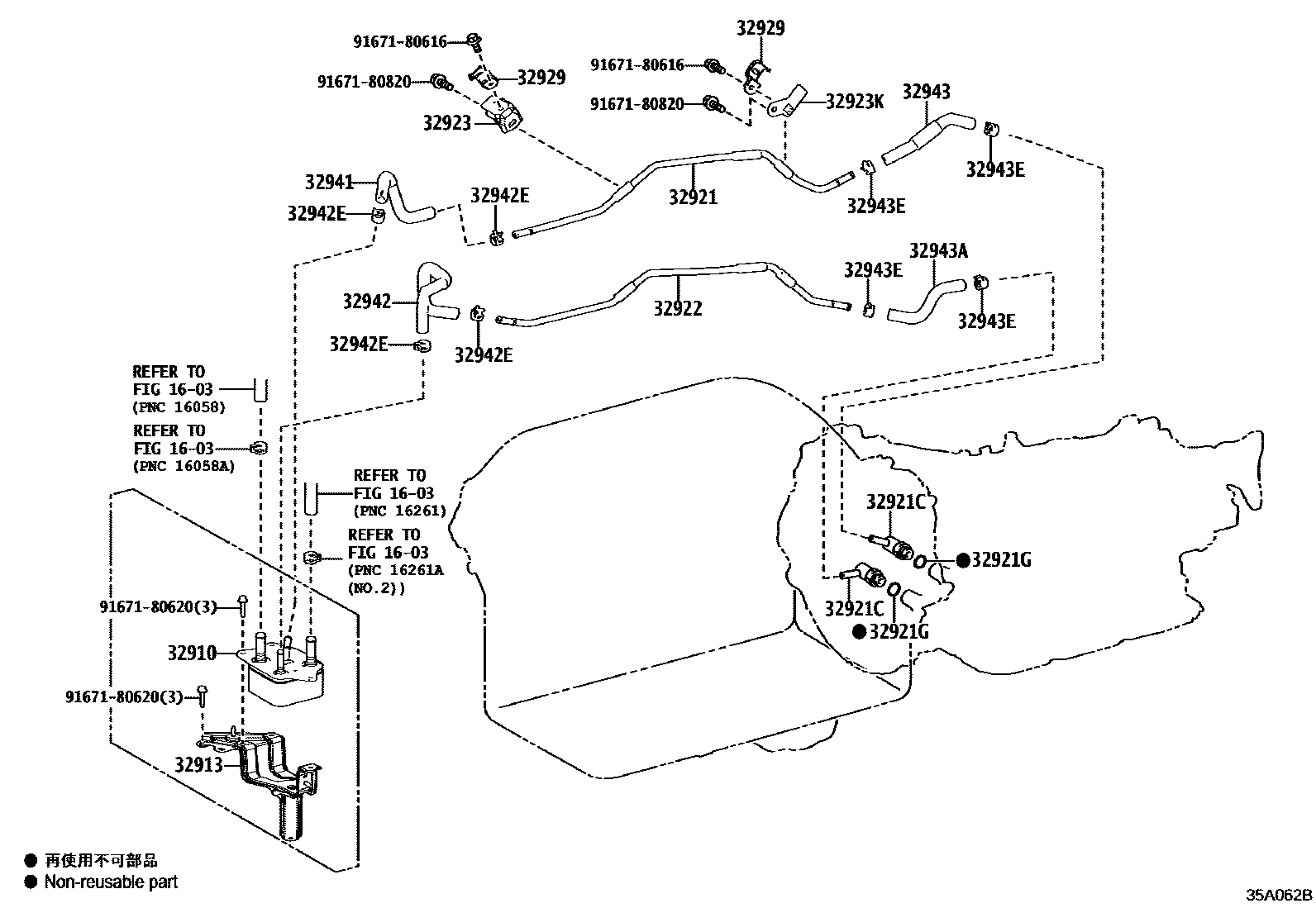

OIL COOLER & TUBE (ATM)

0001 1AGA0E 0002 1AGA0F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32910COOLER ASSY, OIL

main32910-11010iGSF50,VXFA55202011-202410

32913BRACKET, OIL COOLER

main32913-11020iGSF50201710-202010

main32913-50030iVXFA55201712-202010

32921TUBE, OIL COOLER INLET, NO.1

main32921-50080iGSF50202011-202410

main32921-50100iVXFA55201712-202010

32921CUNION(FOR OIL COOLER TUBE)

main90407-14034×2iGSF50,VXFA55201710-202010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGSF50,VXFA55201710-202010

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-50080iGSF50201710-202010

main32922-50100iVXFA55201712-202010

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-50060iGSF50,VXFA55201710-202010

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32923-30270iGSF50201710-202010

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-30180×2iGSF50,VXFA55201710-202010

32941HOSE, OIL COOLER INLET, NO.1

main32941-50110iGSF50202011-202410

main32941-50120iVXFA55202011-202410

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-50110iGSF50201710-202010

main32942-50130iVXFA55202111-202410

main32942-50140iVXFA55201712-202010

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×4iGSF50,VXFA55201710-202010

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-50050iGSF50202011-202410

main32943-50070iVXFA55201712-202003

TYPE A:REFER ILLUST.

main32943-50071iVXFA55202003-202010

TYPE B:REFER ILLUST.

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-50060iGSF50202011-202410

main32943-50080iVXFA55201712-202003

TYPE A:REFER ILLUST.

main32943-50081iVXFA55202011-202410

TYPE B:REFER ILLUST.

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iGSF50201710-202010

9167180616

main91671-80616

9167180620

main91671-80620

9167180820

main91671-80820

19 parts on this diagram · 2 diagrams in section
