OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

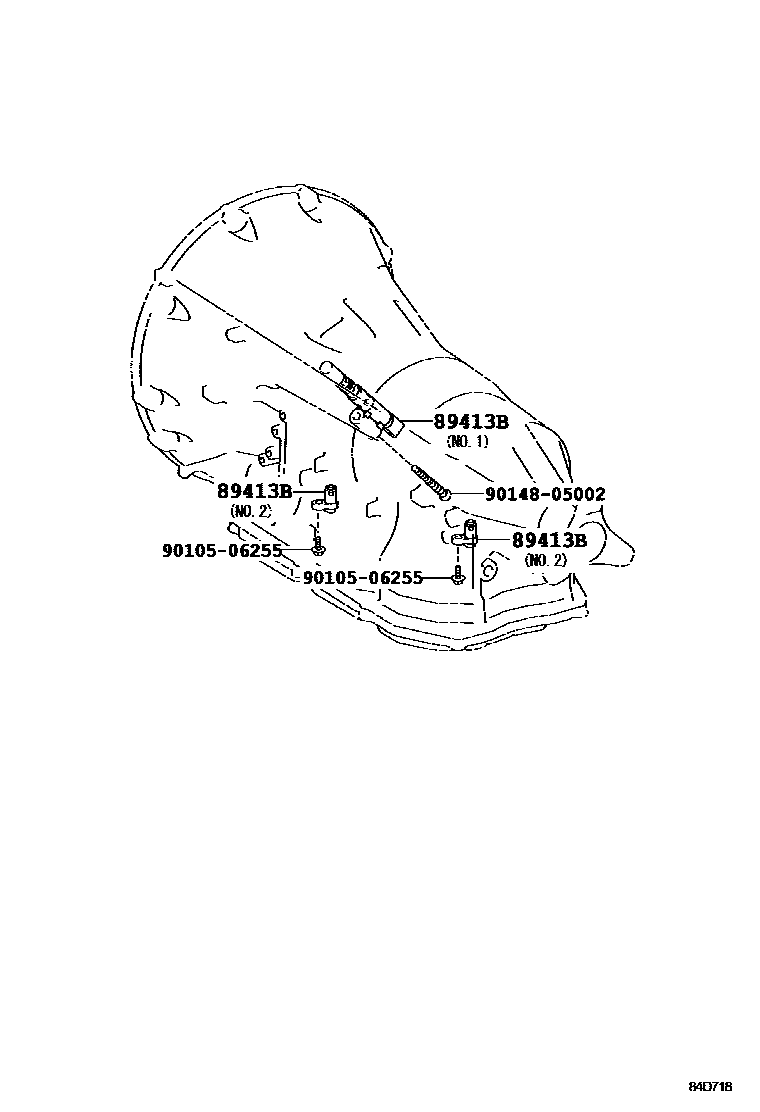

Parts diagram

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-50010i201209-201708

NO.1

main89413-50020×2i201209-201708

NO.2

9010506255

main90105-06255

9014805002

main90148-05002

3 parts on this diagram · 1 diagram in section
