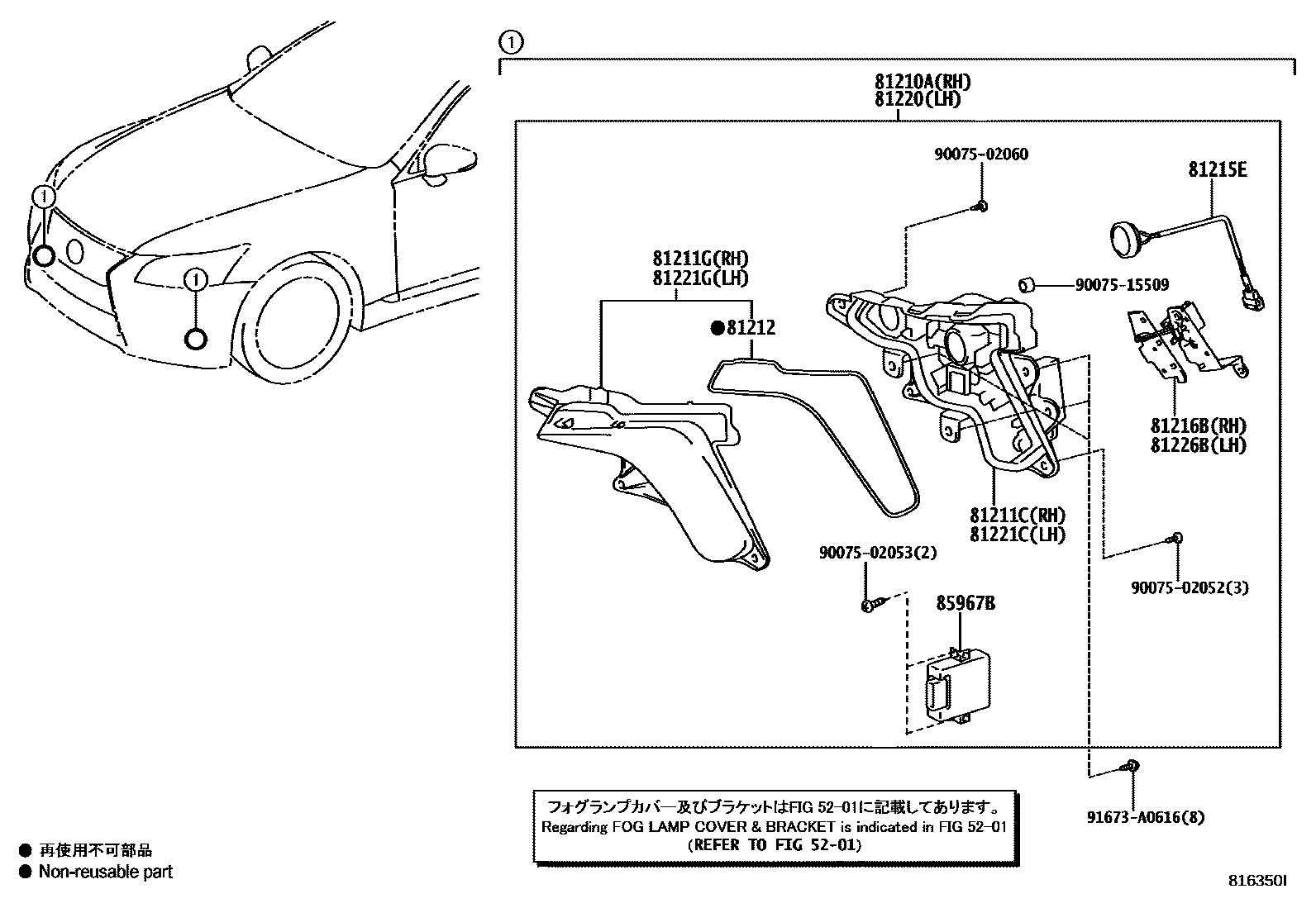

FOG LAMP

0001 1NORMAL 0002 1F SPORT

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-50100iUSF4#201209-201708

main81210-50130iUSF40..LHD201410-201509

THE CRAFTED LINE

81211CLAMP UNIT, FOG LAMP, RH

main81211-50100iUSF4#201209-201708

main81211-50130iUSF40..LHD201410-201509

THE CRAFTED LINE

81211GLENS, FOG LAMP, RH

main81213-50100iUSF4#201209-201708

main81213-50130iUSF40..LHD201410-201509

THE CRAFTED LINE

81212GASKET, FOG LAMP LENS

main81212-50100×2iUSF4#201209-201708

81215ECORD, FOG LAMP

main81215-50100×2iUSF4#201209-201708

main81215-50130×2iUSF40201210-201708

F SPORT

81216BRIM, FOG LAMP, RH NO.1

main81216-50100iUSF4#201209-201708

81220LAMP ASSY, FOG, LH

main81220-50100iUSF4#201209-201708

main81220-50130iUSF40..LHD201410-201509

THE CRAFTED LINE

81221CLAMP UNIT, FOG LAMP, LH

main81221-50100iUSF4#201209-201708

main81221-50130iUSF40..LHD201410-201509

THE CRAFTED LINE

81221GLENS, FOG LAMP, LH

main81223-50100iUSF4#201209-201708

main81223-50130iUSF40201210-201708

F SPORT

81226BRIM, FOG LAMP, LH

main81226-50100iUSF4#201209-201708

85967BCOMPUTER, LIGHT CONTROL LED

main85967-50110×2iUSF4#; USF40,45201209-201708

F SPORT

9007502052

main90075-02052

9007502053

main90075-02053

9007502060

main90075-02060

9007515509

main90075-15509

91673A0616

main91673-A0616

17 parts on this diagram · 2 diagrams in section
