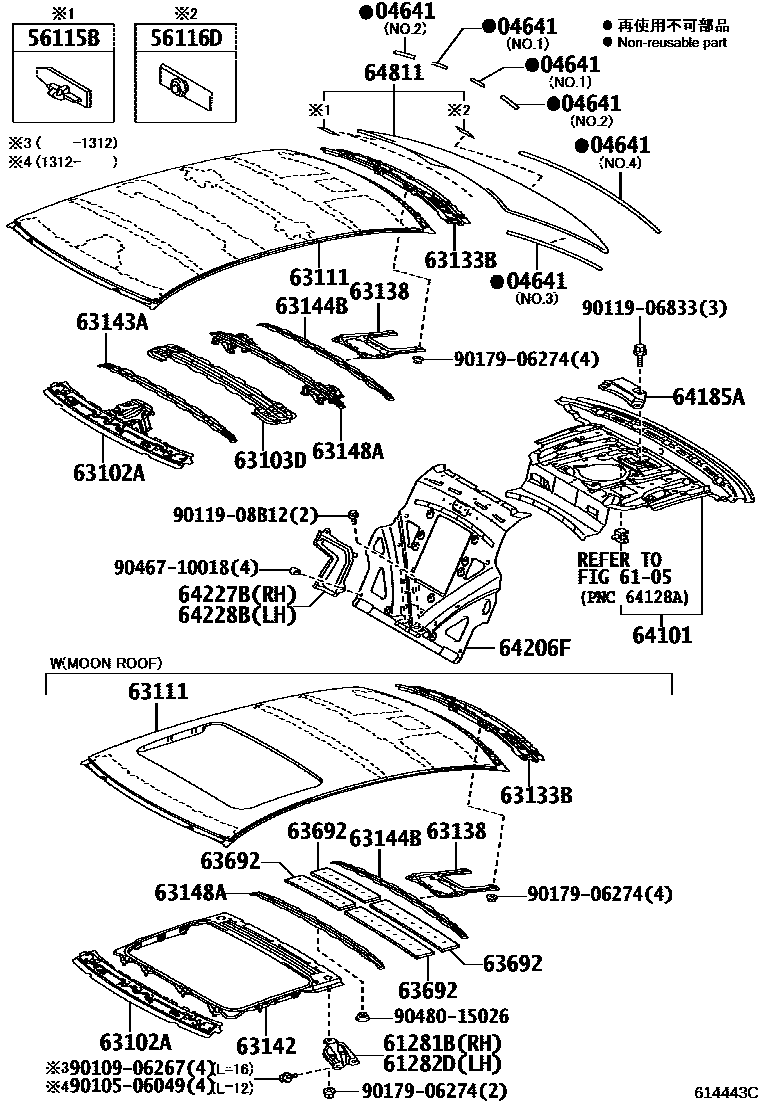

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
NO.3
NO.4
NO.1
NO.2 RH
NO.2 LH
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
6105LUGGAGE COMPARTMENT DOOR & LOCK
61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61282DBRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITHOUT
MOON ROOF-WITHOUT
63103DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
MOON ROOF-WITHOUT
63111PANEL, ROOF
MOON ROOF-WITHOUT
MOON ROOF-WITHOUT
63133BFRAME, BACK WINDOW
63138BRACKET, DOME LAMP, NO.2
63142REINFORCEMENT, ROOF PANEL, NO.2
63143AREINFORCEMENT, ROOF PANEL
MOON ROOF-WITHOUT
63144BREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
MOON ROOF-WITHOUT
63692PAD, ROOF SILENCER, NO.22
64101PANEL SUB-ASSY, UPPER BACK
64185ADAMPER, UPPER BACK, NO.1
64206FPANEL SUB-ASSY, ROOM PARTITION
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64811GLASS, BACK WINDOW
*UVCEHT,T=5.0,GREEN; *UVCEHT,T=5.0,GREEN,LATIN AMERICA SPEC; *UVCEHT,T=5.0,GREEN,TAIWAN SPEC
*UVCEHT,T=5.0,GREEN; *UVCEHT,T=5.0,GREEN,PHILIPPINES,VIETNAM SPEC
9010506049
main90105-06049
9010906267
main90109-06267
9011906833
main90119-06833
9011908B12
main90119-08B12
9017906274
main90179-06274
9046710018
main90467-10018
9048015026
main90480-15026
29 parts on this diagram · 2 diagrams in section
