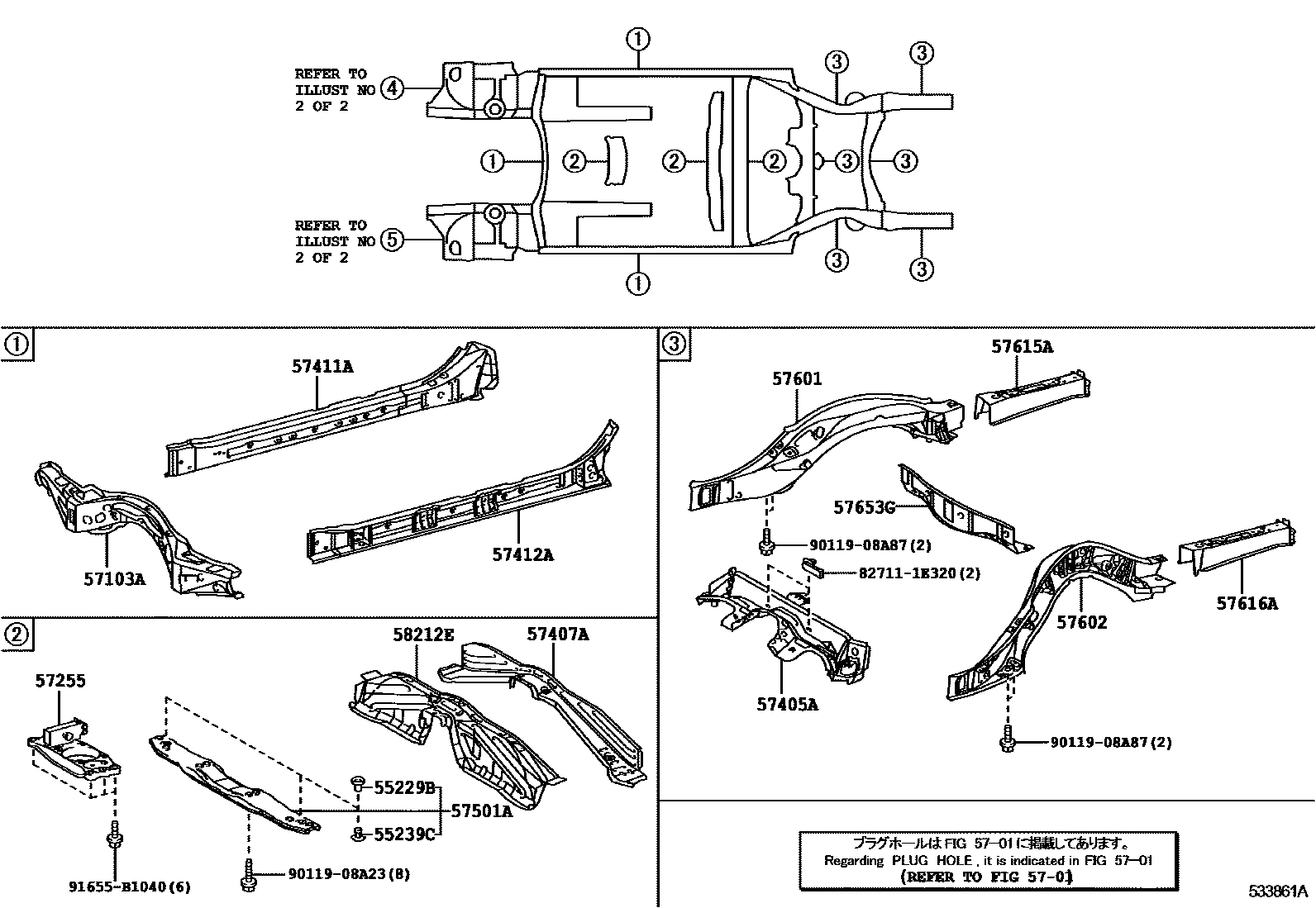

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

55229BPLATE, DASH PANEL INSULATOR, NO.4

main55229-48010×2iUSF4#201209

55239CPLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×2iUSF4#201209

5701HOLE PLUG

→ Go to FIG 57-01

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-50030iUSF40,41..LHD201209

main57103-50040iUSF40,41..RHD201209

main57103-50050iUSF45,46201209

57255MEMBER, ENGINE REAR MOUNTING

main57209-50010iUSF45,46201209

main57209-50020iUSF40,41201209-201504

main57209-50021iUSF40,41201505

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-50020iUSF4#201209-201708

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50060iUSF4#201209-201708

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-50061iUSF40,45201209

main57401-50071iUSF41,46201209

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-50051iUSF40,45201209

main57402-50061iUSF41,46201209

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-50020iUSF4#201209

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50908iUSF4#201209-201706

main57601-50910iUSF4#201706

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50908iUSF4#201209-201509

main57602-50910iUSF4#201509-201706

main57602-50912iUSF4#201706

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50906iUSF4#201209-201612

main57615-50907iUSF4#201612

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50906iUSF4#201209-201612

main57616-50907iUSF4#201612

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-50040iUSF4#201209-201708

58212EPAN, CENTER FLOOR, FRONT

main58202-50020supersedes 58202-50010iUSF41..LHD..D4..EUR201209-201309

main58202-50021iUSF40,45;USF41..LHD..D4..EUR; USF41..LHD..D4..EUR; USF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201612-201708

EXECUTIVE PACKAGE(4SEAT); EXECUTIVE PACKAGE(5SEAT); VERSION L

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9011908A23

main90119-08A23

9011908A87

main90119-08A87

91655B1040

main91655-B1040

20 parts on this diagram · 3 diagrams in section
