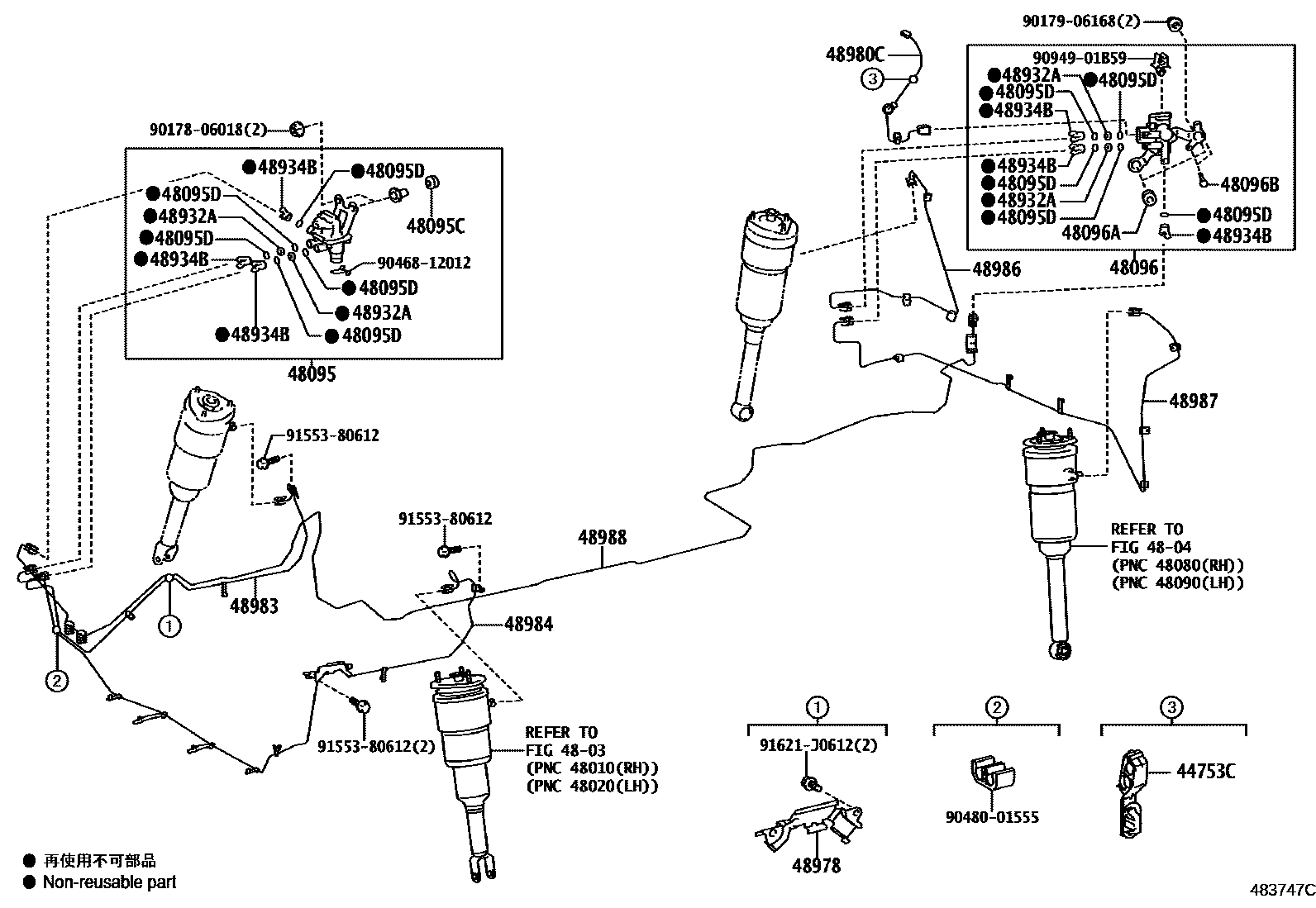

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1

44753CCLAMP, HEIGHT CONTROL TUBE, NO.2

main90989-01107iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1

main48095-30060iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48095CBUSH(FOR HEIGHT CONTROL VALVE NO.1)

main90385-09010×2iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48095DRING, O(FOR HEIGHT CONTROL VALVE)

main90301-04011×10iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

main48096-50050iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)

main48912-30020×2iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)

main90541-05023×2iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48932APLATE, HEIGHT CONTROL TUBE

main48932-30010×4iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48934BCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×6iUSF41..LHD..D4..EUR201209-201309

48978COVER, HEIGHT CONTROL COMPRESSOR

main48978-50020iUSF41..LHD..D4..EUR201209-201309

48980CHARNESS ASSY, HEIGHT CONTROL VALVE

main48980-50030iUSF41..LHD..D4..EUR201209-201309

48983TUBE, HEIGHT CONTROL, NO.3

main48983-50090iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48984TUBE, HEIGHT CONTROL, NO.4

main48984-50090iUSF41..LHD..D4..EUR201209-201309

48986TUBE, HEIGHT CONTROL, NO.6

main48986-50050iUSF41..LHD..D4..EUR201209-201309

48987TUBE, HEIGHT CONTROL, NO.7

main48987-50040iUSF40..GCC; USF41..HTWC..EUR; USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION; VERSION L

48988TUBE, HEIGHT CONTROL, NO.8

main48988-50100iUSF40,45..EUR; USF40..GCC201209-201708

VERSION L

main48988-50110iUSF41..LHD..D4..EUR201209-201309

9017806018

main90178-06018

9017906168

main90179-06168

9046812012

main90468-12012

9048001555

main90480-01555

9094901B59

main90949-01B59

9155380612

main91553-80612

91621J0612

main91621-J0612

25 parts on this diagram · 2 diagrams in section
