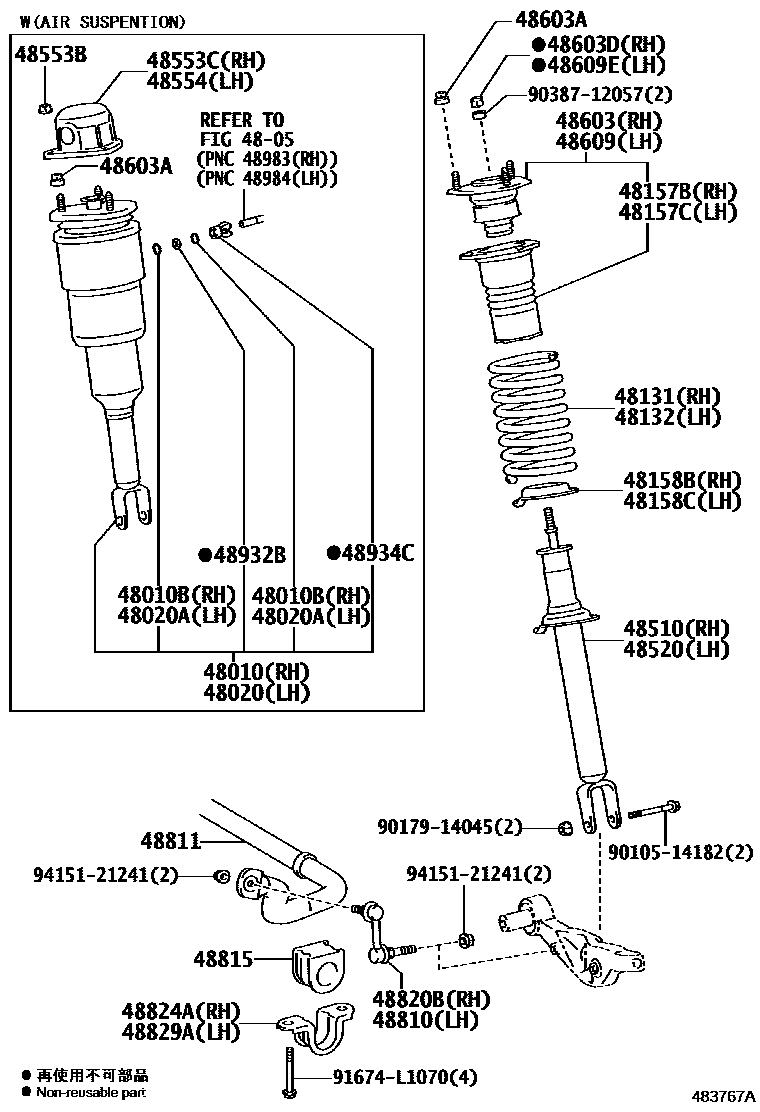

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50340iUSF45,46201209-201312

main48010-50341iUSF45,46201401

main48010-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48010-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48010-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48010-50360iUSF40..LHD..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48010-50360iUSF40..LHD..EUR201209-201309

TAIWAN SPEC

main48010-50370iUSF40..RHD201209-201312

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48010-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

THAILAND SPEC&SUSPENSION-COIL SPRING

main48010-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

VERSION L

main48010-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

SUSPENSION-AIR SUSPENTION

main48010-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48010-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

THAILAND SPEC&SUSPENSION-COIL SPRING

main48010-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48010-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

VERSION L

main48010-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SUSPENSION-AIR SUSPENTION

main48010-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

MOROCCO SPEC&SUSPENSION-COIL SPRING

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011iUSF40..RHD201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50340iUSF45,46201209-201312

main48020-50341iUSF45,46201401

main48020-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48020-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48020-50360iUSF41..LHD..D4..EUR201209-201309

TAIWAN SPEC

main48020-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48020-50360iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48020-50370iUSF40..RHD201209-201312

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48020-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

THAILAND SPEC&SUSPENSION-COIL SPRING

main48020-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

VERSION L

main48020-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

SUSPENSION-AIR SUSPENTION

main48020-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48020-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

THAILAND SPEC&SUSPENSION-COIL SPRING

main48020-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48020-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

VERSION L

main48020-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SUSPENSION-AIR SUSPENTION

main48020-50371iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

MOROCCO SPEC&SUSPENSION-COIL SPRING

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011iUSF40..RHD201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

48131SPRING, FRONT COIL, RH

main48131-50240iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48131-50250iUSF41..LHD..D4..EUR201209

48132SPRING, FRONT COIL, LH

main48131-50240iUSF40..GCC201209

SUSPENSION-COIL SPRING

main48131-50250iUSF41..HTWC201209

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-50030iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48157-50030iUSF41..LHD..D4..EUR201309

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-50030iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48157-50030iUSF41..LHD..D4..EUR201309

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48158-30020iUSF41..LHD..D4..EUR201309

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48158-30020iUSF41..LHD..D4..EUR201309

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80587iUSF40..RHD201209-201404

MARK 48510-50250

main48510-80587iUSF40..RHD201209-201404

MARK 48510-50250,SUSPENSION-COIL SPRING

main48510-80683iUSF40..RHD201404

MARK 48510-50251

main48510-80683iUSF40..RHD201404

MARK 48510-50251,SUSPENSION-COIL SPRING

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80587iUSF40..GCC;USF41..HTWC201209-201404

MARK 48510-50250,SUSPENSION-COIL SPRING

main48510-80587iUSF40..GCC;USF41..HTWC201209-201404

MARK 48510-50250

main48510-80683iUSF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR201404

MARK 48510-50251,SUSPENSION-COIL SPRING

main48510-80683iUSF40..RHD201404

MARK 48510-50251

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174iUSF41..HTWC..EUR201209

VERSION L

main90179-10174iUSF41..HTWC..EUR201209

SUSPENSION-AIR SUSPENTION

main90179-10174iUSF41..LHD..D4..EUR201209-201309

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120iUSF45,46201209

main48553-50130iUSF40..RHD201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48553-50130iUSF40..GCC201209

SUSPENSION-AIR SUSPENTION

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

VERSION L

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120iUSF45,46201209

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48553-50130iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

VERSION L

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-50120iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main48680-50120iUSF41..LHD..D4..EUR201309

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014iUSF4#201209

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-12002iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main90177-12002iUSF41..LHD..D4..EUR201309

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-50120iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main48680-50120iUSF41..LHD..D4..EUR201309

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-12002iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main90177-12002iUSF41..LHD..D4..EUR201309

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUSF4#201209

48811BAR, STABILIZER, FRONT

main48811-50120iUSF40,41201209

main48811-50150iUSF45,46201209

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50200iUSF40,41201209

main48815-50220iUSF45,46201209

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUSF4#201209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50040iUSF40,41201209

main48824-50060iUSF45,46201209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-50050iUSF40,41201209

main48829-50010iUSF45,46201209

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

9010514182

main90105-14182

9017914045

main90179-14045

9038712057

main90387-12057

91674L1070

main91674-L1070

9415121241

main94151-21241

34 parts on this diagram · 2 diagrams in section
