ROOF PANEL & BACK WINDOW GLASS

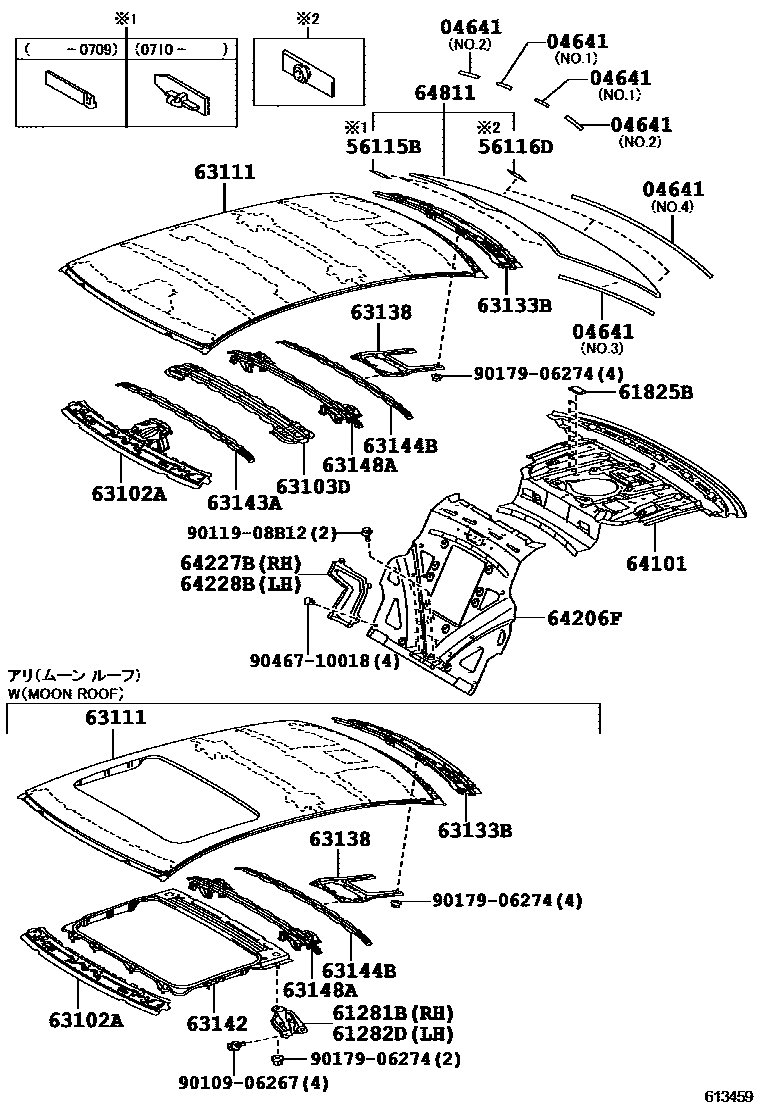

Parts diagram
04641DAM KIT, BACK WINDOW GLASS
main56118-50050×2i200608-200809
NO.3
main56118-50060i200809-200909
NO.4
main75573-50040×2i200809-200909
NO.1
main75573-50050i200909
NO.2 RH
main75573-50060i200909
NO.2 LH
56115BSTOPPER, BACK WINDOW GLASS, NO.1
main56115-30100×2i200702-200709
main56115-50070×2i200809-200811
main56115-50100×2i200909
56116DSTOPPER, BACK WINDOW GLASS, NO.2
main56116-50030×3i200608-200809
61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
main61281-50060i200608-200809
MOON ROOF-WITH
61282DBRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2
main61282-50020i200608-200809
MOON ROOF-WITH
61825BPLATE, NOISE CONTROL, NO.2
main61825-22050×2i200809-200909
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-50902supersedes 63102-50903i200608-200809
MOON ROOF-WITH
63103DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
main63103-50020i200608-200804
main63103-50021i200809-200909
63111PANEL, ROOF
main63111-50080supersedes 63111-50070i200909
MOON ROOF-WITH
main63111-50100supersedes 63111-50090i200809-200909
MOON ROOF-WITH
main63111-50130i200909
MAYDAY SYSTEM-WITH(G-BOOK)
63133BFRAME, BACK WINDOW
main63133-50040i200809-200909
main63133-50070i200909
63138BRACKET, DOME LAMP, NO.2
main63138-50010i200608-200805
main63138-50011i200909
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-50040i200608-200809
MOON ROOF-WITH
63143AREINFORCEMENT, ROOF PANEL
main63143-50040i200608-200809
63144BREINFORCEMENT, ROOF PANEL, NO.4
main63144-50030i200608-200809
63148AREINFORCEMENT, ROOF PANEL, NO.7
main63148-50040supersedes 63104-50030i200608-200809
MOON ROOF-WITH
64101PANEL SUB-ASSY, UPPER BACK
main64101-50200supersedes 64101-50190i200608-200809
VERSION U OR VERSION U I PACKAGE
main64101-50240supersedes 64101-50230i200909
VERSION U OR U I PACKAGE OR KOREA SPEC
64206FPANEL SUB-ASSY, ROOM PARTITION
main64206-50040i200608-200809
main64206-50060i200909-201110
main64206-50061i201111
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
main64227-50040i200608-200809
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
main64228-50040i200608-200809
64811GLASS, BACK WINDOW
main64810-50903i200608-200701
*UVCEHT,T=5.0,GREEN
main64810-50912i200702-200710
*UVCEHT,T=5.0,GREEN
main64810-50916i200710-200806
*UVCT,T=5.0,GREEN
main64810-50917i200809-200909
*UVCEHT,T=5.0,GREEN
main64810-50925i200909-201209
*UVCEHT,T=5.0,GREEN
main64810-50902i200608-200701
*UVCEHT,T=5.0,GREEN,AUSTRALIA SPEC; *UVCEHT,T=5.0,GREEN,BEIJING SPEC; *UVCEHT,T=5.0,GREEN,CHINA(EXCEPT BEIJING) SPEC; *UVCEHT,T=5.0,GREEN,FORMOSA SPEC; *UVCEHT,T=5.0,GREEN,HONG KONG SPEC; *UVCEHT,T=5.0,GREEN,MALAYSIA SPEC; *UVCEHT,T=5.0,GREEN,NEW ZEALAND SPEC; *UVCEHT,T=5.0,GREEN,SOUTH AMERICA SPEC
main64810-50911i200702-200710
*UVCEHT,T=5.0,GREEN,AUSTRALIA SPEC; *UVCEHT,T=5.0,GREEN,BEIJING SPEC; *UVCEHT,T=5.0,GREEN,CHINA(EXCEPT BEIJING) SPEC; *UVCEHT,T=5.0,GREEN,FORMOSA SPEC; *UVCEHT,T=5.0,GREEN,HONG KONG SPEC; *UVCEHT,T=5.0,GREEN,MALAYSIA SPEC; *UVCEHT,T=5.0,GREEN,NEW ZEALAND SPEC; *UVCEHT,T=5.0,GREEN,SOUTH AMERICA SPEC
main64810-50915i200710-200809
*UVCEHT,T=5.0,GREEN,AUSTRALIA SPEC; *UVCEHT,T=5.0,GREEN,BEIJING SPEC; *UVCEHT,T=5.0,GREEN,CHINA(EXCEPT BEIJING) SPEC; *UVCEHT,T=5.0,GREEN,FORMOSA SPEC; *UVCEHT,T=5.0,GREEN,HONG KONG SPEC; *UVCEHT,T=5.0,GREEN,MALAYSIA SPEC; *UVCEHT,T=5.0,GREEN,NEW ZEALAND SPEC; *UVCEHT,T=5.0,GREEN,SOUTH AMERICA SPEC
main64810-50924i200909-201209
*UVCEHT,T=5.0,GREEN,AUSTRALIA SPEC; *UVCEHT,T=5.0,GREEN,BEIJING SPEC; *UVCEHT,T=5.0,GREEN,BRAZIL SPEC; *UVCEHT,T=5.0,GREEN,CHINA(EXCEPT BEIJING) SPEC; *UVCEHT,T=5.0,GREEN,FORMOSA SPEC; *UVCEHT,T=5.0,GREEN,HONG KONG SPEC; *UVCEHT,T=5.0,GREEN,NEW ZEALAND SPEC; *UVCEHT,T=5.0,GREEN,SOUTH AMERICA SPEC
9010906267
main90109-06267
9011908B12
main90119-08B12
9017906274
main90179-06274
9046710018
main90467-10018

24 parts on this diagram · 3 diagrams in section
