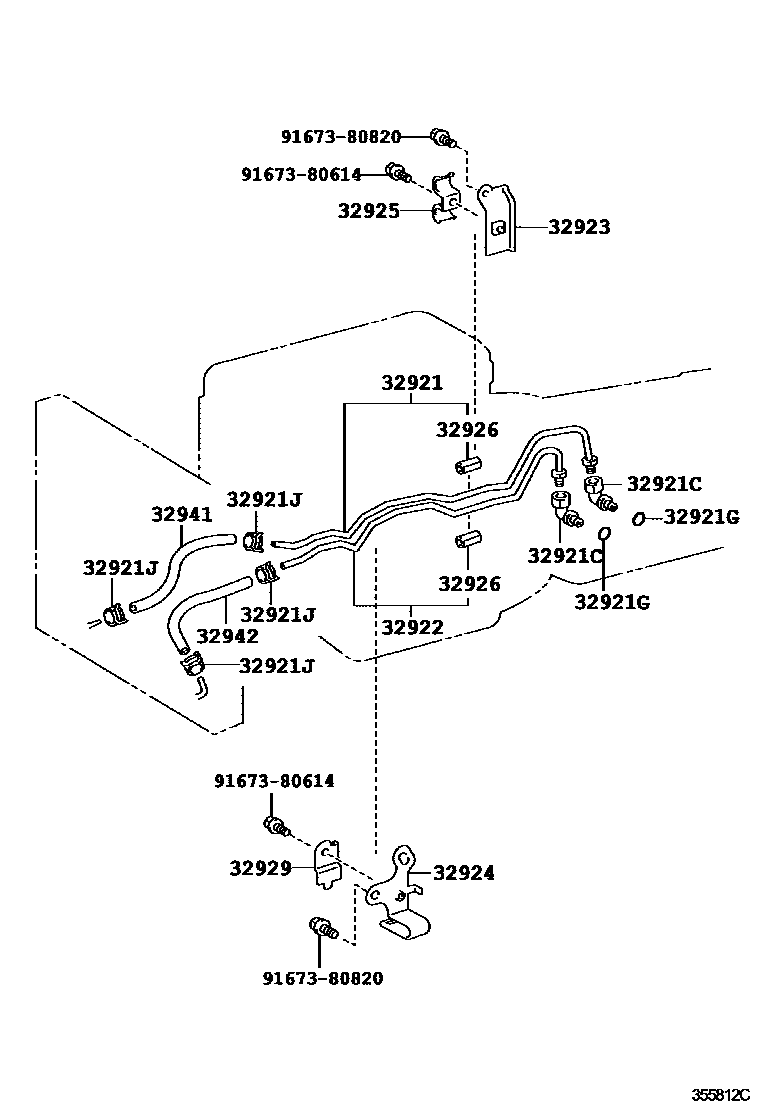

OIL COOLER & TUBE (ATM)

0001 1AA80E 0002 1AA80F

32921TUBE, OIL COOLER INLET, NO.1

main32921-50070iUSF40,41200909

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iUSF45,46200909

main90407-16037×2iUSF40,41200909

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iUSF4#200909

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×4iUSF4#200608-200809

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-50060iUSF4#200608-200809

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-50050iUSF40,41200909

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-50040iUSF40,41200809-200909

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-12074iUSF4#200608-200809

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-50040×2iUSF4#200608-200809

L=40,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-50030iUSF4#200608-200809

32941HOSE, OIL COOLER INLET, NO.1

main32941-50040iUSF40,41200809-200909

main32941-50100iUSF45,46200909

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-50040iUSF40,41200809-200909

main32942-50090iUSF45,46200909

9167380614

main91673-80614

9167380820

main91673-80820

14 parts on this diagram · 2 diagrams in section
