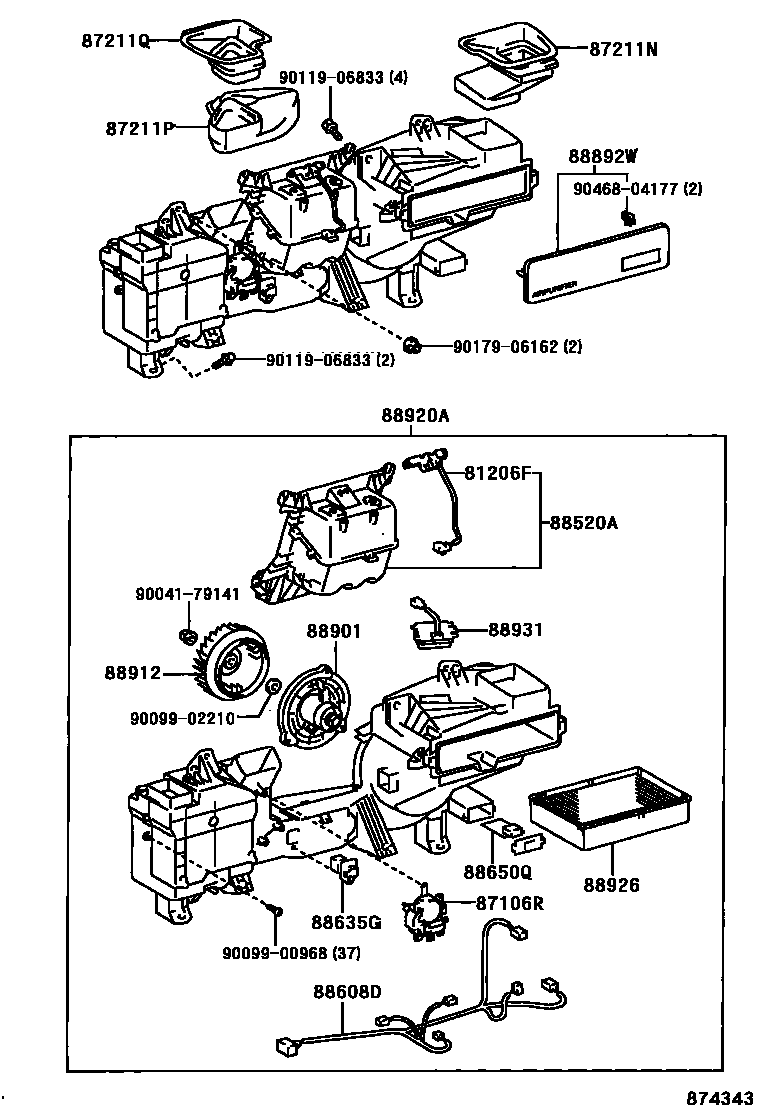

AIR PURIFIER OR ION GENERATOR

81206FLAMP SUB-ASSY, COOLING BOX

main81206-50030iUCF30..ARL,EUR200008-200107

87106RSERVO SUB-ASSY, DAMPER

main87106-30420iUCF30..ARL,EUR200008-200107

87211NDUCT, AIR PURIFIER AIR, NO.1

main87211-50060iUCF30..ARL,EUR200008-200107

87211PDUCT, AIR PURIFIER AIR, NO.2

main87211-50070iUCF30..ARL,EUR200008-200107

87211QDUCT, AIR PURIFIER AIR, NO.3

main87211-50080iUCF30..ARL,EUR200008-200107

88520ABOX ASSY, COOLING

main88520-50030iUCF30..ARL,EUR200008-200107

88608DHARNESS SUB-ASSY, WIRING AIR INDICATER, NO.2

main88608-50280iUCF30..ARL,EUR200008-200107

88635GRESISTOR, AIR PURIFIER BLOWER

main88635-30450iUCF30..ARL,EUR200008-200107

88650QAMPLIFIER ASSY, AIR CODITIONER

main88650-50340iUCF30200008-200307

88892WCOVER, AIR PURIFIER

main88891-30690-C0iUCF30..ARL,EUR200008-200107

BLACK,TRIM03,04,1#,2#

88901MOTOR SUB-ASSY, AIR PURIFIER

main87104-30520iUCF30..ARL,EUR200008-200107

88912FAN, AIR PURIFIER

main87134-30090iUCF30..ARL,EUR200008-200107

88920APURIFIER ASSY, AIR

main88920-50030iUCF30..ARL,EUR200008-200107

88926FILTER, AIR PURIFIER

main88508-30110iUCF30..ARL,EUR200008-200107

88931SENSOR, SMOKE

main88931-50040iUCF30..ARL,EUR200008-200107

9004179141

main90041-79141

9009900968

main90099-00968

9009902210

main90099-02210

9011906833

main90119-06833

9017906162

main90179-06162

9046804177

main90468-04177

21 parts on this diagram · 1 diagram in section
