MAT & CARPET

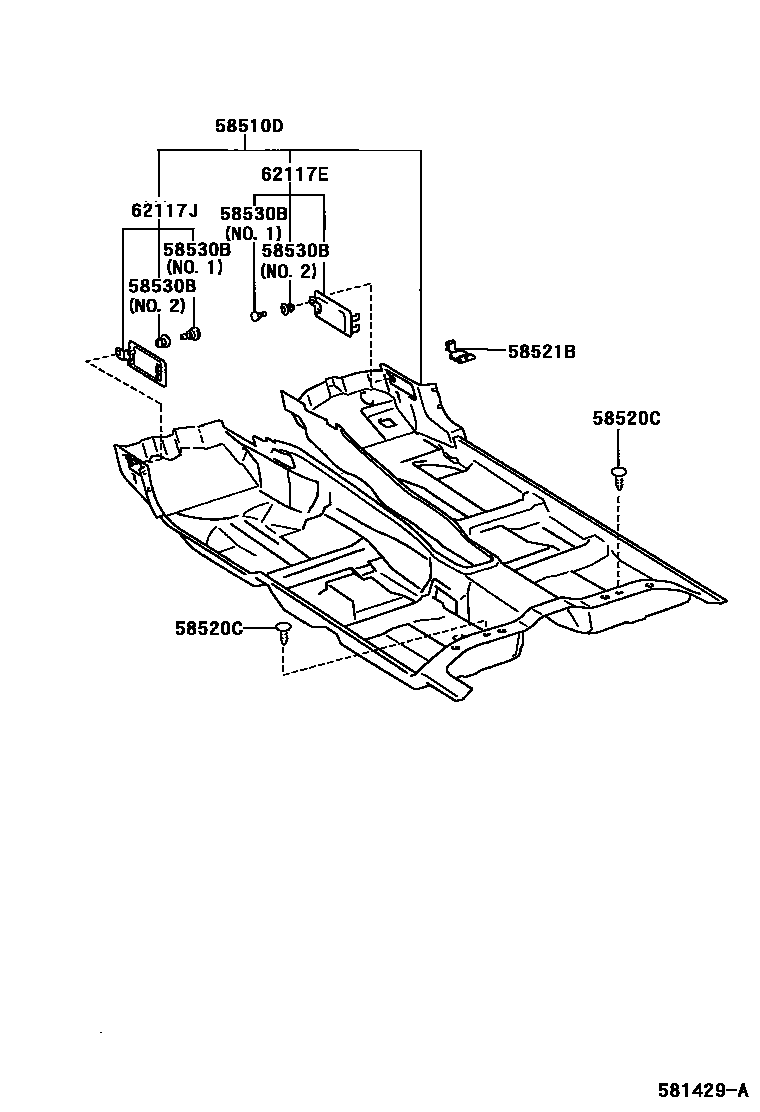

Parts diagram

58510DCARPET ASSY, FLOOR, FRONT

main58510-50480-A0i200008-200107

ECRU,TRIM03

main58510-50480-A1i200008-200107

IVORY,TRIM04

main58510-50480-B0i200008-200107

CHARCOAL,TRIM1#

main58510-50480-C0i200008-200107

BLACK,TRIM2#

main58510-50481-A0i200107-200302

ECRU,TRIM03

main58510-50481-A1i200107-200302

IVORY,TRIM04

main58510-50481-B0i200107-200302

CHARCOAL,TRIM1#

main58510-50481-C0i200107-200302

BLACK,TRIM2#

main58510-50482-A0i200302-200307

ECRU,TRIM03

main58510-50482-A1i200302-200307

IVORY,TRIM04

main58510-50482-B0i200302-200307

CHARCOAL,TRIM1#

main58510-50482-C0i200302-200307

BLACK,TRIM2#

main58510-50490-A0i200008-200107

ECRU,TRIM03

main58510-50490-A1i200008-200107

IVORY,TRIM04

main58510-50490-B0i200008-200107

CHARCOAL,TRIM1#

main58510-50490-C0i200008-200107

BLACK,TRIM2#

main58510-50491-A0i200107-200302

ECRU,TRIM03

main58510-50491-A1i200107-200302

IVORY,TRIM04

main58510-50491-B0i200107-200302

CHARCOAL,TRIM1#

main58510-50491-C0i200107-200302

BLACK,TRIM2#

main58510-50492-A0i200302-200307

ECRU,TRIM03

main58510-50492-A1i200302-200307

IVORY,TRIM04

main58510-50492-B0i200302-200307

CHARCOAL,TRIM1#

main58510-50492-C0i200302-200307

BLACK,TRIM2#

main58510-50510-A0i200307-200603

NEW IVORY,TRIM07

main58510-50510-A1i200307-200603

ECRU,TRIM00

main58510-50510-B0i200307-200603

NEW GRAY,TRIM1#

main58510-50510-C0i200307-200603

BLACK,TRIM21,24

main58510-50511-A0i200604-200608

NEW IVORY,TRIM07

main58510-50511-A1i200604-200608

ECRU,TRIM00

main58510-50511-B0i200604-200608

NEW GRAY,TRIM1#

main58510-50511-C0i200604-200608

BLACK,TRIM21,24

main58510-50520-A0i200307-200603

NEW IVORY,TRIM07

main58510-50520-A1i200307-200603

ECRU,TRIM00

main58510-50520-B0i200307-200603

NEW GRAY,TRIM1#

main58510-50520-C0i200307-200603

BLACK,TRIM21,24

main58510-50521-A0i200604-200608

NEW IVORY,TRIM07

main58510-50521-A1i200604-200608

ECRU,TRIM00

main58510-50521-B0i200604-200608

NEW GRAY,TRIM1#

main58510-50521-C0i200604-200608

BLACK,TRIM21,24

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-A1×2i200008-200201

IVORY,TRIM03,04,1#,2#

main90467-07049-A0×2i200201-200307

IVORY,TRIM03,04,1#,2#

58521BHOOK, FLOOR CARPET

main58521-50030×4i200307

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05015-A0×2i200008-200307

IVORY,TRIM04,NO.1

main90467-05015-A1×2i200008-200307

ECRU,TRIM03,NO.1

main90467-05015-A2×2i200307-200608

NEW IVORY,TRIM07,NO.1

main90467-05015-B2×2i200008-200307

MD.CHARCOAL,TRIM1#,NO.1

main90467-05015-B3×2i200307-200608

NEW GRAY,TRIM1#,NO.1

main90467-05015-C0×2i200008-200307

BLACK,TRIM2#,NO.1

main90467-08031-A0×2i200008-200307

IVORY,TRIM04,NO.2

main90467-08031-A1×2i200008-200307

ECRU,TRIM03,NO.2

main90467-08031-A2×2i200307-200608

NEW IVORY,TRIM07,NO.2

main90467-08031-B2×2i200008-200307

MD.CHARCOAL,TRIM1#,NO.2

main90467-08031-B3×2i200307-200608

NEW GRAY,TRIM1#,NO.2

main90467-08031-C0×2i200008-200307

BLACK,TRIM2#,NO.2

62117ECOVER, COWL SIDE TRIM SERVICE HOLE

main62117-50010-A0i200008-200307

IVORY,TRIM04

main62117-50010-A1i200307-200608

ECRU,TRIM00

main62117-50010-A2i200307-200608

NEW IVORY,TRIM07

main62117-50010-B0i200008-200307

MD.CHARCOAL,TRIM1#

main62117-50010-B1i200307-200608

NEW GRAY,TRIM1#

main62117-50010-C0i200008-200307

BLACK,TRIM2#

62117JCOVER, COWL SIDE TRIM SERVICE HOLE, LH

main62117-50010-A0i200008-200307

IVORY,TRIM04

main62117-50010-A1i200307-200608

ECRU,TRIM00

main62117-50010-A2i200307-200608

NEW IVORY,TRIM07

main62117-50010-B0i200008-200307

MD.CHARCOAL,TRIM1#

main62117-50010-B1i200307-200608

NEW GRAY,TRIM1#

main62117-50010-C0i200307-200608

BLACK,TRIM21,24

6 parts on this diagram · 1 diagram in section
