HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1REAR COOLER PIPE 0009 1REAR COOLER PIPE 0010 1O RING

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

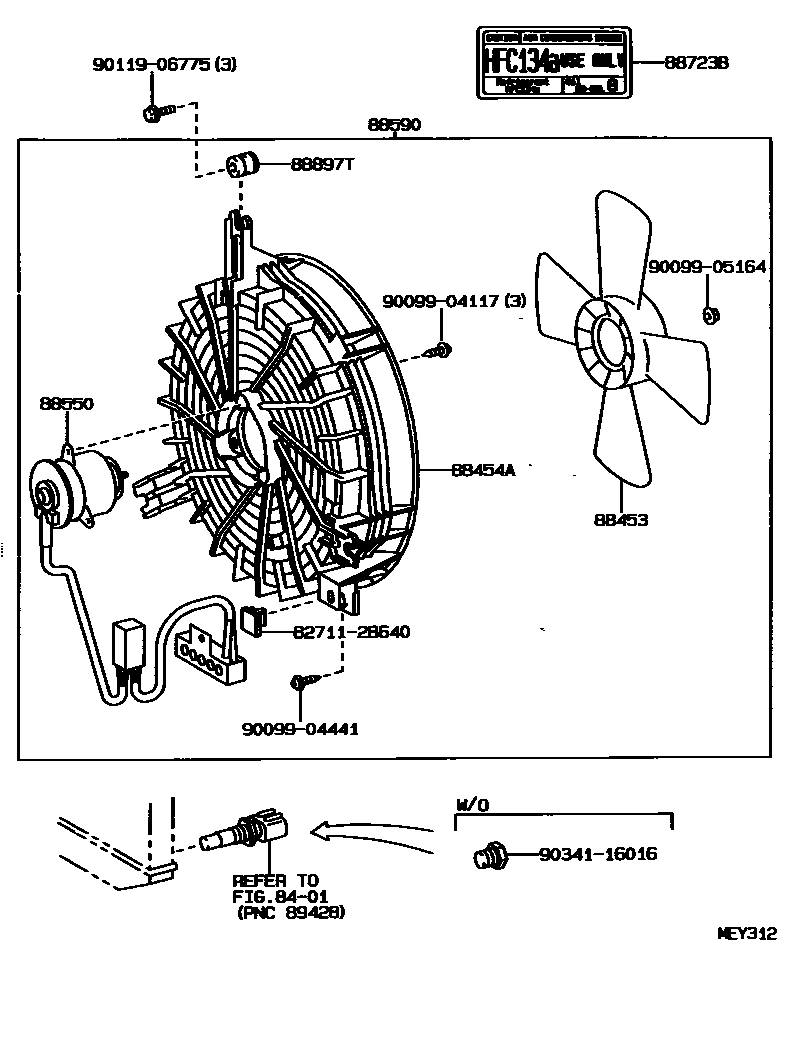

88453FAN, COOLING (FOR CONDENSER)

main88453-50010iUCF20..ARL,GEN; UCF20..RHD..EUR; UCF20..V199410

RH; SOUTH AFRICA SPEC

main88453-50020iUCF20..V199410

LH

88454ASHROUD, FAN

main88454-50030iUCF20..V199410

RH

main88454-50040iUCF20..V199410

LH

main88454-50050iUCF20..LHD..EUR199410-199707

ISRAEL SPEC

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-50040×2iUCF20..V199410

main88550-50060iUCF20..LHD..EUR199707

BRAZIL SPEC OR ISRAEL SPEC

88590BLOWER ASSY, W/SHROUD

main88590-50090iUCF20..V199410

RH

main88590-50100iUCF20..V199410

LH

main88590-50110iUCF20..LHD..EUR199410-199707

ISRAEL SPEC

88723BLABEL, COOLER SERVICE CAUTION

main88723-50150iUCF20199410

88897TGROMMET, COOLER

main88897-50020×3iUCF20..LHD..EUR; UCF20..RHD..EUR199410-199707

ISRAEL SPEC; SOUTH AFRICA SPEC

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

9009904117

main90099-04117

9009904441

main90099-04441

9009905164

main90099-05164

9011906775

main90119-06775

9034116016

main90341-16016

13 parts on this diagram · 10 diagrams in section
