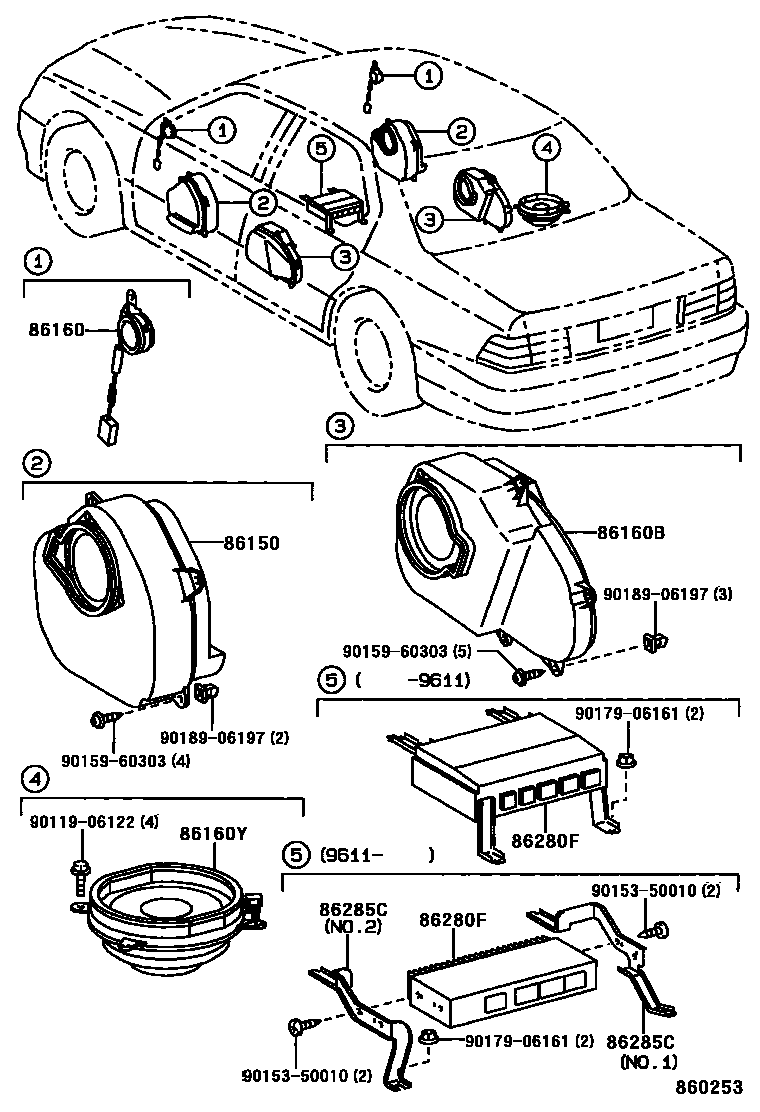

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-50170iUCF20199410-199707

RH

main86150-50180iUCF20199410-199707

LH

main86150-50250iUCF20199707

RH

main86150-50260iUCF20199707

LH

86160SPEAKER ASSY, FRONT NO.1

main86160-50120iUCF20199410

RH

main86160-50130iUCF20199410

LH

86160BSPEAKER ASSY, REAR

main86150-50210iUCF20199410-199508

RH

main86150-50211iUCF20199508

RH

main86150-50220iUCF20199410-199508

LH

main86150-50221iUCF20199508

LH

86160YSPEAKER ASSY, REAR NO.2

main86160-50100iUCF20199410

86280FAMPLIFIER ASSY, STEREO COMPONENT

main86280-50150iUCF20..LHD199410-199612

main86280-50151iUCF20..LHD199612-199707

main86280-50170iUCF20..RHD199410-199612

main86280-50171iUCF20..RHD199612-199707

main86280-50190iUCF20..LHD199707-199808

main86280-50191iUCF20..LHD199808

main86280-50200iUCF20..RHD199707-199808

main86280-50201iUCF20..RHD199808

86285CBRACKET, AMPLIFIER, NO.1

main86285-50010iUCF20199612-199707

NO.1

main86285-50020iUCF20199707

NO.1

main86286-50010iUCF20199612

NO.2

9011906122

main90119-06122

9015350010

main90153-50010

9015960303

main90159-60303

9017906161

main90179-06161

9018906197

main90189-06197

11 parts on this diagram · 1 diagram in section
