EPC Data

ARMREST & VISOR

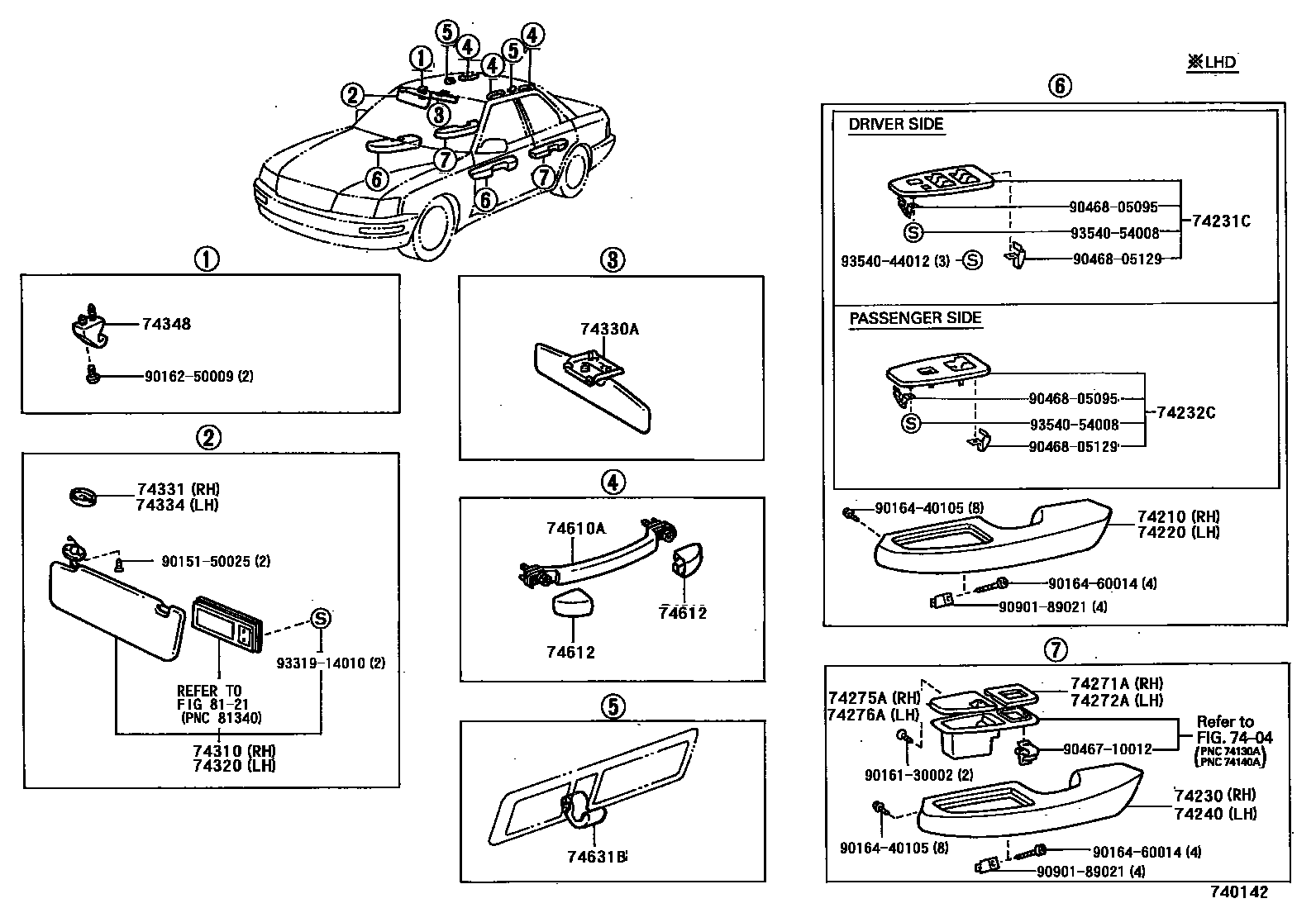

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-50040-A0i199410-199707
IVORY,TRIM0#
main74210-50040-A0i199410-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main74210-50040-B0i199410-199707
BLUE GRAY,TRIM1#
main74210-50040-B0i199410-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main74210-50040-C0i199410-199707
BLACK,TRIM2#
main74210-50040-C0i199410-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main74210-50040-G0i199410-199707
AGATE,TRIM6#
main74210-50040-G0i199410-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main74210-50060-A0i199410-199707
IVORY,TRIM0#
main74210-50060-B0i199410-199707
BLUE GRAY,TRIM1#
main74210-50060-C0i199410-199707
BLACK,TRIM2#
main74210-50060-G0i199410-199707
AGATE,TRIM6#
main74210-50070-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74210-50070-A0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),IVORY,TRIM0#
main74210-50070-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74210-50070-C0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),BLACK,TRIM2#
main74210-50070-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
main74210-50070-G0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),AGATE,TRIM6#
main74210-50090-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74210-50090-B0i199707
W(LEATHER SEAT),BLUE GRAY,TRIM1#
main74210-50090-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74210-50090-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
74220ARMREST ASSY, FRONT, LH
main74220-50040-A0i199410-199707
IVORY,TRIM0#
main74220-50040-A0i199410-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main74220-50040-B0i199410-199707
BLUE GRAY,TRIM1#
main74220-50040-B0i199410-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main74220-50040-C0i199410-199707
BLACK,TRIM2#
main74220-50040-C0i199410-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main74220-50040-G0i199410-199707
AGATE,TRIM6#
main74220-50040-G0i199410-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main74220-50060-A0i199410-199707
IVORY,TRIM0#
main74220-50060-B0i199410-199707
BLUE GRAY,TRIM1#
main74220-50060-C0i199410-199707
BLACK,TRIM2#
main74220-50060-G0i199410-199707
AGATE,TRIM6#
main74220-50070-A0i199707
W(REAR CURTAIN),IVORY,TRIM0#
main74220-50070-C0i199707
W(REAR CURTAIN),BLACK,TRIM2#
main74220-50070-G0i199707
W(REAR CURTAIN),AGATE,TRIM6#
main74220-50090-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74220-50090-B0i199707
W(LEATHER SEAT),BLUE GRAY,TRIM1#
main74220-50090-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74220-50090-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
74230ARMREST ASSY, REAR, RH
main74250-50040-A0i199410-199707
IVORY,TRIM0#
main74250-50040-A0i199410-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main74250-50040-B0i199410-199707
BLUE GRAY,TRIM1#
main74250-50040-B0i199410-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main74250-50040-C0i199410-199707
BLACK,TRIM2#
main74250-50040-C0i199410-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main74250-50040-G0i199410-199707
AGATE,TRIM6#
main74250-50040-G0i199410-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main74250-50060-A0i199410-199707
IVORY,TRIM0#
main74250-50060-B0i199410-199707
BLUE GRAY,TRIM1#
main74250-50060-C0i199410-199707
BLACK,TRIM2#
main74250-50060-G0i199410-199707
AGATE,TRIM6#
main74250-50070-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74250-50070-A0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),IVORY,TRIM0#
main74250-50070-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74250-50070-C0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),BLACK,TRIM2#
main74250-50070-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
main74250-50070-G0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),AGATE,TRIM6#
main74250-50090-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74250-50090-B0i199707
W(LEATHER SEAT),BLUE GRAY,TRIM1#
main74250-50090-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74250-50090-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
main74231-50030i199410-199707
WOOD TYPE
main74231-50040i199410-199707
WOOD TYPE
main74231-50050i199707
SINGAPORE OR THAILAND SPEC,WOOD TYPE
main74231-50050i199707
WOOD TYPE
main74231-50060i199707
WOOD TYPE
main74231-50070i199707
WOOD TYPE
main74231-50090-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.BROWN,TRIM03,15,27
main74231-50090-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LT.BROWN,TRIM27
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
main74232-50030i199410-199707
WOOD TYPE
main74232-50040i199707
WOOD TYPE
main74232-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.BROWN,TRIM03,15,27
main74232-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LT.BROWN,TRIM27
74240ARMREST ASSY, REAR, LH
main74260-50040-A0i199410-199707
IVORY,TRIM0#
main74260-50040-A0i199410-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main74260-50040-B0i199410-199707
BLUE GRAY,TRIM1#
main74260-50040-B0i199410-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main74260-50040-C0i199410-199707
BLACK,TRIM2#
main74260-50040-C0i199410-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main74260-50040-G0i199410-199707
AGATE,TRIM6#
main74260-50040-G0i199410-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main74260-50060-A0i199410-199707
IVORY,TRIM0#
main74260-50060-B0i199410-199707
BLUE GRAY,TRIM1#
main74260-50060-C0i199410-199707
BLACK,TRIM2#
main74260-50060-G0i199410-199707
AGATE,TRIM6#
main74260-50070-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74260-50070-A0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),IVORY,TRIM0#
main74260-50070-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74260-50070-C0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),BLACK,TRIM2#
main74260-50070-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
main74260-50070-G0i199707
SOUTH AFRICA SPEC & W(LEATHER SEAT),AGATE,TRIM6#
main74260-50090-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main74260-50090-B0i199707
W(LEATHER SEAT),BLUE GRAY,TRIM1#
main74260-50090-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main74260-50090-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-50030i199410-199707
main74271-50040i199707
main74271-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LT.BROWN,TRIM27
main74271-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.BROWN,TRIM03,15,27
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-50030i199410-199707
main74272-50040i199707
main74272-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.BROWN,TRIM03,15,27
main74272-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LT.BROWN,TRIM27
74275APLATE, REAR DOOR ARMREST BASE FINISH,RH
main74275-50030i199410-199707
main74275-50040i199707
main74275-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.BROWN,TRIM03,15,27
main74275-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LT.BROWN,TRIM27
74276APLATE, REAR DOOR ARMREST BASE FINISH,LH
main74276-50030i199410-199707
main74276-50040i199707
main74276-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LT.BROWN,TRIM27
main74276-50050-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.BROWN,TRIM03,15,27
74310VISOR ASSY, RH
main74310-50080-A0i199410-199602
IVORY,TRIM0#
main74310-50080-B0i199410-199602
BLUE GRAY,TRIM1#,2#
main74310-50080-G0i199410-199602
AGATE,TRIM6#
main74310-50081-A0i199602-199611
IVORY,TRIM0#
main74310-50081-B0i199602-199611
BLUE GRAY,TRIM1#,2#
main74310-50081-G0i199602-199611
AGATE,TRIM6#
main74310-50082-A0i199611-199707
IVORY,TRIM0#
main74310-50082-B0i199611-199707
BLUE GRAY,TRIM1#,2#
main74310-50082-G0i199611-199707
AGATE,TRIM6#
main74310-50120-A1i199707-199908
IVORY,TRIM0#
main74310-50120-B1i199707-199908
BLUE GRAY,TRIM1#,2#
main74310-50120-G1i199707-199908
AGATE,TRIM6#
main74310-50130-A1i199707-199908
IVORY,TRIM0#
main74310-50130-B1i199707-199908
BLUE GRAY,TRIM1#,2#
main74310-50130-G1i199707-199908
AGATE,TRIM6#
main74310-50131-A1i199908
IVORY,TRIM0#
main74310-50131-B1i199908
BLUE GRAY,TRIM1#,2#
main74310-50131-G1i199908
AGATE,TRIM6#
main74310-50170-A0i199908
IVORY,TRIM0#
main74310-50170-B0i199908
BLUE GRAY,TRIM1#,2#
main74310-50170-G0i199908
AGATE,TRIM6#
74320VISOR ASSY, LH
main74320-50070-A0i199410-199602
IVORY,TRIM0#
main74320-50070-B0i199410-199602
BLUE GRAY,TRIM1#,2#
main74320-50070-G0i199410-199602
AGATE,TRIM6#
main74320-50071-A0i199602-199611
IVORY,TRIM0#
main74320-50071-B0i199602-199611
BLUE GRAY,TRIM1#,2#
main74320-50071-G0i199602-199611
AGATE,TRIM6#
main74320-50072-A0i199611-199707
IVORY,TRIM0#
main74320-50072-B0i199611-199707
BLUE GRAY,TRIM1#,2#
main74320-50072-G0i199611-199707
AGATE,TRIM6#
main74320-50110-A1i199707-199908
IVORY,TRIM0#
main74320-50110-B1i199707-199908
BLUE GRAY,TRIM1#,2#
main74320-50110-G1i199707-199908
AGATE,TRIM6#
main74320-50120-A1i199707-199908
IVORY,TRIM0#
main74320-50120-B1i199707-199908
BLUE GRAY,TRIM1#,2#
main74320-50120-G1i199707-199908
AGATE,TRIM6#
main74320-50130-A1i199707-199908
IVORY,TRIM0#
main74320-50130-B1i199707-199908
BLUE GRAY,TRIM1#,2#
main74320-50131-A1i199908
IVORY,TRIM0#
main74320-50131-B1i199908
BLUE GRAY,TRIM1#,2#
main74320-50160-A0i199908
IVORY,TRIM0#
main74320-50160-B0i199908
BLUE GRAY,TRIM1#,2#
main74320-50160-G0i199908
AGATE,TRIM6#
74330AVISOR ASSY, CENTER
main74330-50030-A0i199410-199601
IVORY,TRIM0#
main74330-50030-B0i199410-199601
BLUE GRAY,TRIM1#,2#
main74330-50030-G0i199410-199601
AGATE,TRIM6#
main74330-50031-A0i199603-199707
IVORY,TRIM0#
main74330-50031-B0i199603-199707
BLUE GRAY,TRIM1#,2#
main74330-50031-G0i199603-199707
AGATE,TRIM6#
main74330-50040-A1i199707
IVORY,TRIM0#
main74330-50040-B1i199707
BLUE GRAY,TRIM1#,2#
main74330-50040-G1i199707
AGATE,TRIM6#
74331CASE, VISOR ARM, RH
main74331-50030-A0i199410-199707
IVORY,TRIM0#
main74331-50030-A1i199707
IVORY,TRIM0#
main74331-50030-B0i199410
BLUE GRAY,TRIM1#,2#
main74331-50030-G0i199410
AGATE,TRIM6#
74334CASE, VISOR ARM, LH
main74331-50030-A0i199410-199707
IVORY,TRIM0#
main74331-50030-A1i199707
IVORY,TRIM0#
main74331-50030-B0i199410
BLUE GRAY,TRIM1#,2#
main74331-50030-G0i199410
AGATE,TRIM6#
74348HOLDER, VISOR
main74348-50020-A0i199410-199707
IVORY,TRIM0#
main74348-50020-A1i199707
IVORY,TRIM0#
main74348-50020-B0i199410
BLUE GRAY,TRIM1#,2#
main74348-50020-G0i199410
AGATE,TRIM6#
74610AGRIP SUB-ASSY, ASSIST
main74610-50020-A0i199410-199707
IVORY,TRIM0#
main74610-50020-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main74610-50020-G0i199410-199707
AGATE,TRIM6#
main74610-50030-A0i199707
IVORY,TRIM0#
main74610-50030-B0i199707
BLUE GRAY,TRIM1#,2#
main74610-50030-G0i199707
AGATE,TRIM6#
74612COVER, ASSIST GRIP
main74612-50020-A0i199410-199707
IVORY,TRIM0#
main74612-50020-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main74612-50020-G0i199410-199707
AGATE,TRIM6#
main74612-50030-A0i199707
IVORY,TRIM0#
main74612-50030-B0i199707
BLUE GRAY,TRIM1#,2#
main74612-50030-G0i199707
AGATE,TRIM6#
74631BHOOK, COAT
main74605-50010-A0i199410-199707
IVORY,TRIM0#
main74605-50010-B0i199410-199707
BLUE GRAY,TRIM1#,2#
main74605-50010-G0i199410-199707
AGATE,TRIM6#
main74605-50020-A0i199707
IVORY,TRIM0#
main74605-50020-B0i199707
BLUE GRAY,TRIM1#,2#
main74605-50020-G0i199707
AGATE,TRIM6#
8121INTERIOR LAMP
→ Go to FIG 81-21
9015150025
main90151-50025
9016130002
main90161-30002
9016250009
main90162-50009
9016440105
main90164-40105
9016460014
main90164-60014
9046710012
main90467-10012
9046805095
main90468-05095
9046805129
main90468-05129
9090189021
main90901-89021
9331914010
main93319-14010
9354044012
main93540-44012
9354054008
main93540-54008

32 parts on this diagram · 1 diagram in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
