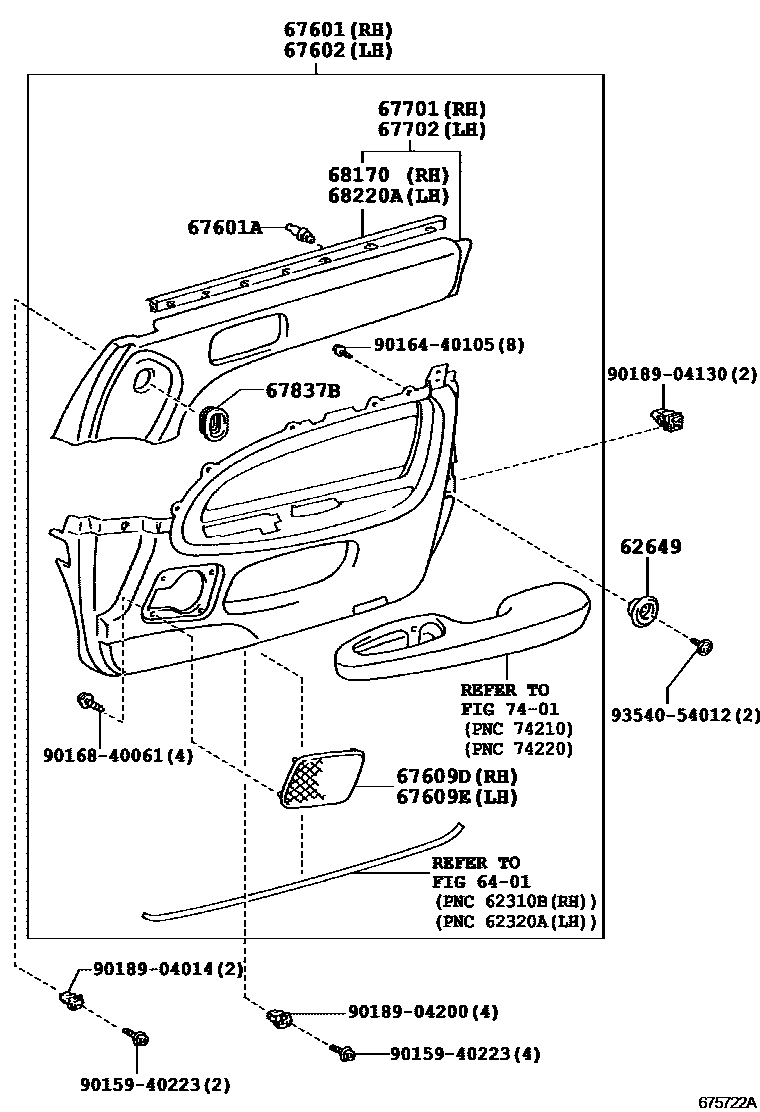

FRONT DOOR PANEL & GLASS
62649BRACKET, SIDE TRIM
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
BRAZIL SPEC,IVORY,TRIM0#; IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
BLUE GRAY,TRIM1#; BRAZIL SPEC,BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
BLACK,TRIM2#; BRAZIL SPEC,BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67609DGRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67609EGRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67701COVER SUB-ASSY, FRONT DOOR TRIM, RH
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
67702COVER SUB-ASSY, FRONT DOOR TRIM, LH
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
67837BSEAL, FRONT DOOR DUST PROOF
SOUTH AFRICA SPEC
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
7401ARMREST & VISOR
9015940223
main90159-40223
9016440105
main90164-40105
9016840061
main90168-40061
9018904014
main90189-04014
9018904130
main90189-04130
9018904200
main90189-04200
9354054012
main93540-54012
20 parts on this diagram · 2 diagrams in section
