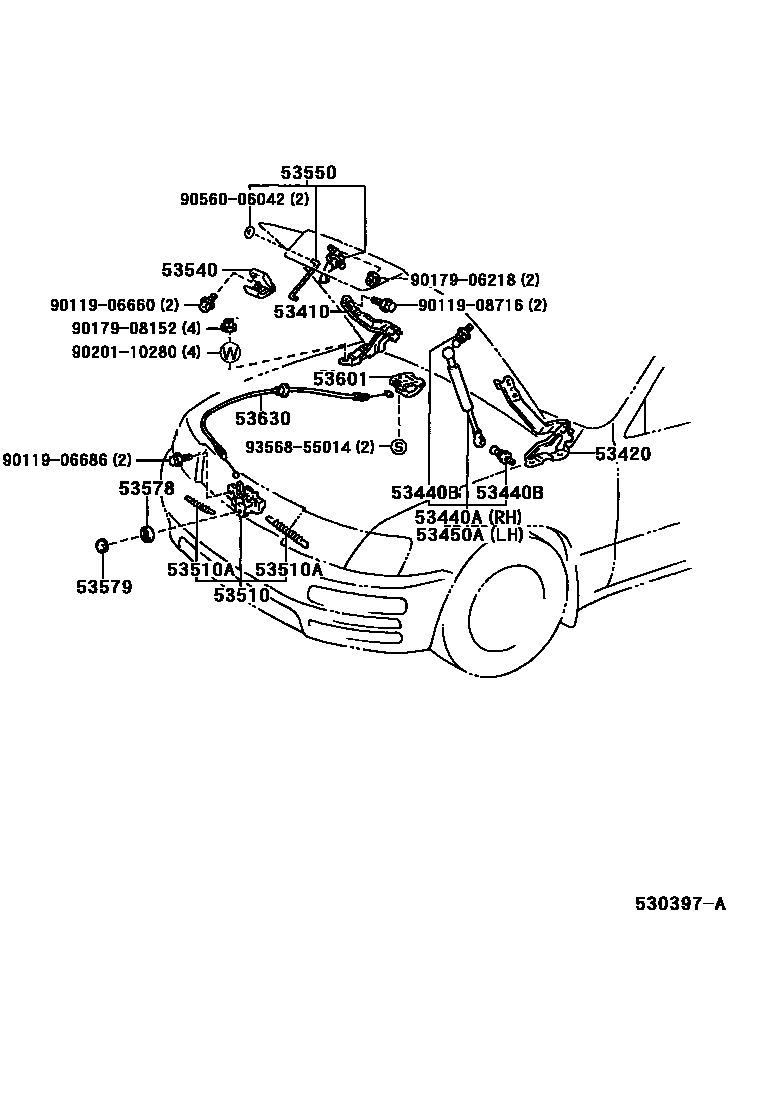

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-50020iUCF20199410

53420HINGE ASSY, HOOD, LH

main53420-50020iUCF20199410

53440ASUPPORT ASSY, HOOD, RH

main53440-59025iUCF20199410-199707

main53440-59035iUCF20199707

53440BBOLT, HOOD SUPPORT, NO.1

main68961-50010×4iUCF20199410

53450ASUPPORT ASSY, HOOD, LH

main53440-59025iUCF20199410-199707

main53440-59035iUCF20199707

53510LOCK ASSY, HOOD

main53510-33010iUCF20..LHD..EUR199410-199608

main53510-50020iUCF20..V199410-199608

main53510-50060iUCF20..RHD199410

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iUCF20199707

WD=0.9,CW=20.5

main90506-18068iUCF20199410-199707

WD=1.8,CW=18,OD=15,L=52

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30010iUCF20199410

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-50020iUCF20199410-199707

main53550-50030iUCF20199707

53578NUT, HOOD LOCK

main53578-50010iUCF20199410

53579CAP, HOOD LOCK NUT

main53579-50010iUCF20199410

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-A0iUCF20199410-199707

IVORY,TRIM0#

main53601-20060-A1iUCF20199707

IVORY,TRIM0#

main53601-20060-B1iUCF20199410

BLUE GRAY,TRIM1#

main53601-20060-C0iUCF20199410

BLACK,TRIM2#

main53601-20060-G0iUCF20..ARL,EUR,GEN199410

AGATE,TRIM6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-50050iUCF20199410

9011906660

main90119-06660

9011906686

main90119-06686

9011908716

main90119-08716

9017906218

main90179-06218

9017908152

main90179-08152

9020110280

main90201-10280

9056006042

main90560-06042

9356855014

main93568-55014

21 parts on this diagram · 1 diagram in section
