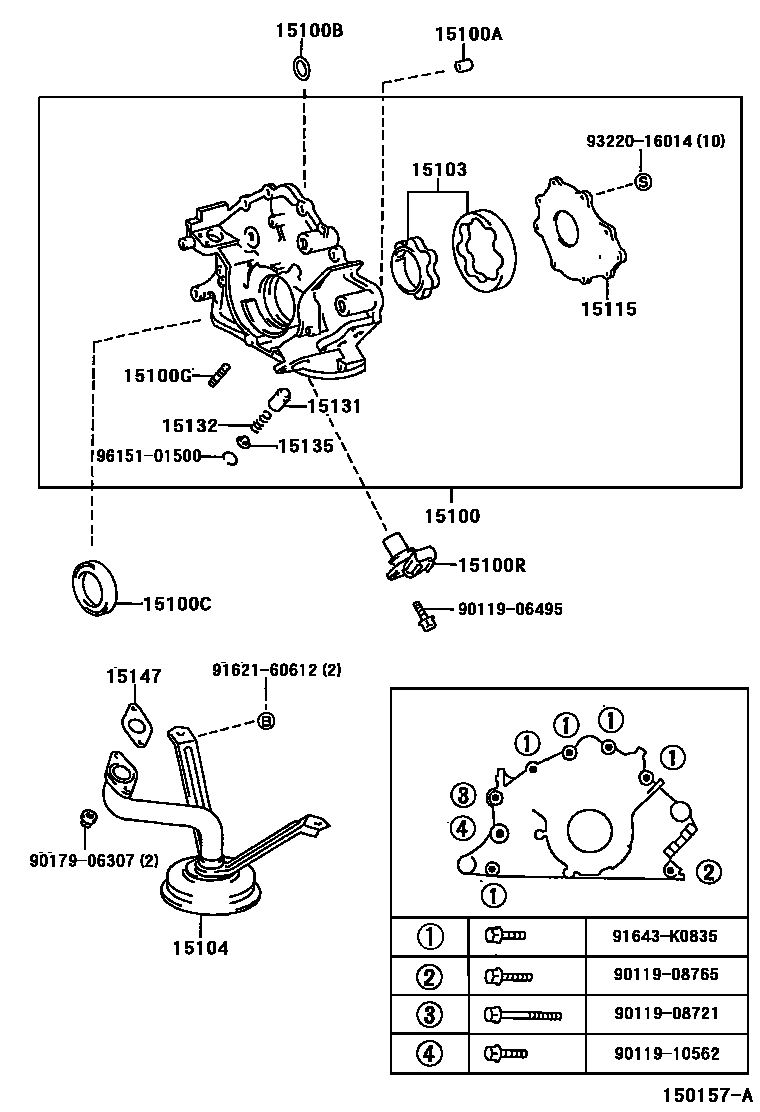

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-50022i1UZFE..UCF20199410-199707

main15100-50040i1UZFE..UCF20199707-200008

15100APIN, RING(FOR OIL PUMP SET)

main90253-13017×2i1UZFE..UCF20199410

15100BRING, O(FOR OIL PUMP)

main96721-24025i1UZFE..UCF20199410-200008

15100CSEAL(FOR OIL PUMP)

main90311-43004i1UZFE..UCF20199410-199712

main90311-43006i1UZFE..UCF20199712-200008

15100GBOLT,STUD(FOR OIL PUMP)

main16193-15010×2i1UZFE..UCF20199410-200007

15100RSENSOR, CRANK POSITION

main90919-05002i1UZFE..UCF20199410-199707

main90919-05035i1UZFE..UCF20199707

15103GEAR SET, OIL PUMP

main15103-50020i1UZFE..UCF20199410-199707

main15103-50040i1UZFE..UCF20199707-200003

main15103-50041i1UZFE..UCF20200003-200007

15104STRAINER SUB-ASSY, OIL

main15104-50021i1UZFE..UCF20199410-199707

main15104-50100i1UZFE..UCF20199707

15115COVER, OIL PUMP

main15115-50022i1UZFE..UCF20199410-199707

main15115-50040i1UZFE..UCF20199707-200007

15131VALVE, OIL PUMP RELIEF

main15131-24010i1UZFE..UCF20199410-199707

main15131-46060i1UZFE..UCF20199707-200007

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i1UZFE..UCF20199707-200007

main15132-62010i1UZFE..UCF20199410-199707

15135RETAINER, OIL PUMP RELIEF VALVE

main15133-17010i1UZFE..UCF20199707-200007

main15135-15010i1UZFE..UCF20199410-199707

15147GASKET, OIL STRAINER

main15147-50010i1UZFE..UCF20199410-199707

main15147-50011i1UZFE..UCF20199707

9011906495

main90119-06495

9011908721

main90119-08721

9011908765

main90119-08765

9011910562

main90119-10562

9017906307

main90179-06307

9162160612

main91621-60612

91643K0835

main91643-K0835

9322016014

main93220-16014

9615101500

main96151-01500

22 parts on this diagram · 2 diagrams in section
