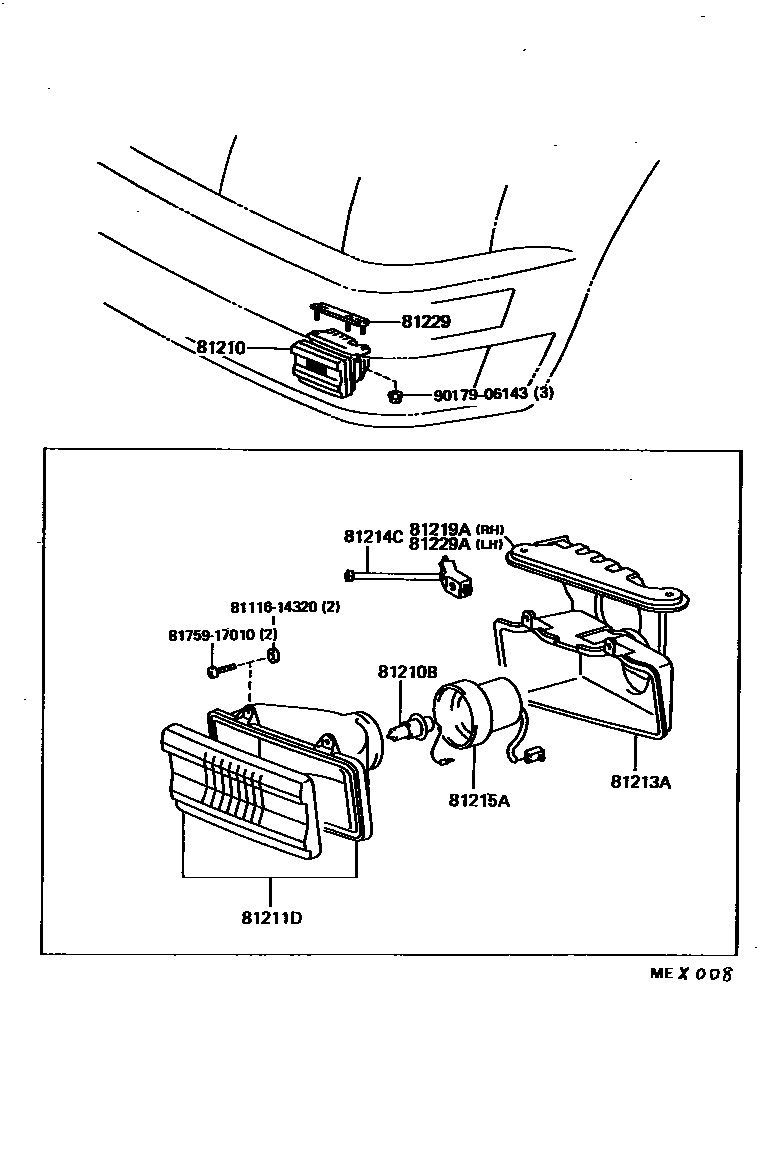

FOG LAMP

81210LAMP ASSY, FOG

main81210-50010iUCF10..EUR,GEN,V198912-199410

RH

main81220-50010iUCF10..EUR,GEN,V198912-199410

LH

81210BBULB, FOG LAMP

main90981-13018×2iUCF10..EUR,GEN,V198912-199410

12V 55W,HALOGEN

81211DLAMP UNIT, FOG LAMP

main81211-50010iUCF10..EUR,GEN,V198912-199410

RH

main81221-50010iUCF10..EUR,GEN,V198912-199410

LH

81213ABODY, FOG LAMP

main81213-50010iUCF10..EUR,GEN,V198912-199410

RH

main81223-50010iUCF10..EUR,GEN,V198912-199410

LH

81214CGEAR UNIT,FOG LAMP

main81214-50010×2iUCF10..EUR,GEN,V198912-199410

81215ASOCKET & WIRE, FOG LAMP

main81215-50010×2iUCF10..EUR,GEN,V198912-199410

81219ABRACKET, FOG LAMP, RH

main81219-50010iUCF10..EUR,GEN,V198912-199410

81229BRACKET, FOG LAMP

main81481-50010×2iUCF10..EUR,GEN,V198912-199410

81229ABRACKET, FOG LAMP, LH

main81229-50010iUCF10..EUR,GEN,V198912-199410

8111614320COVER, SEALED BEAM UNIT

main81116-14320

8175917010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-17010

9017906143

main90179-06143

12 parts on this diagram · 1 diagram in section
