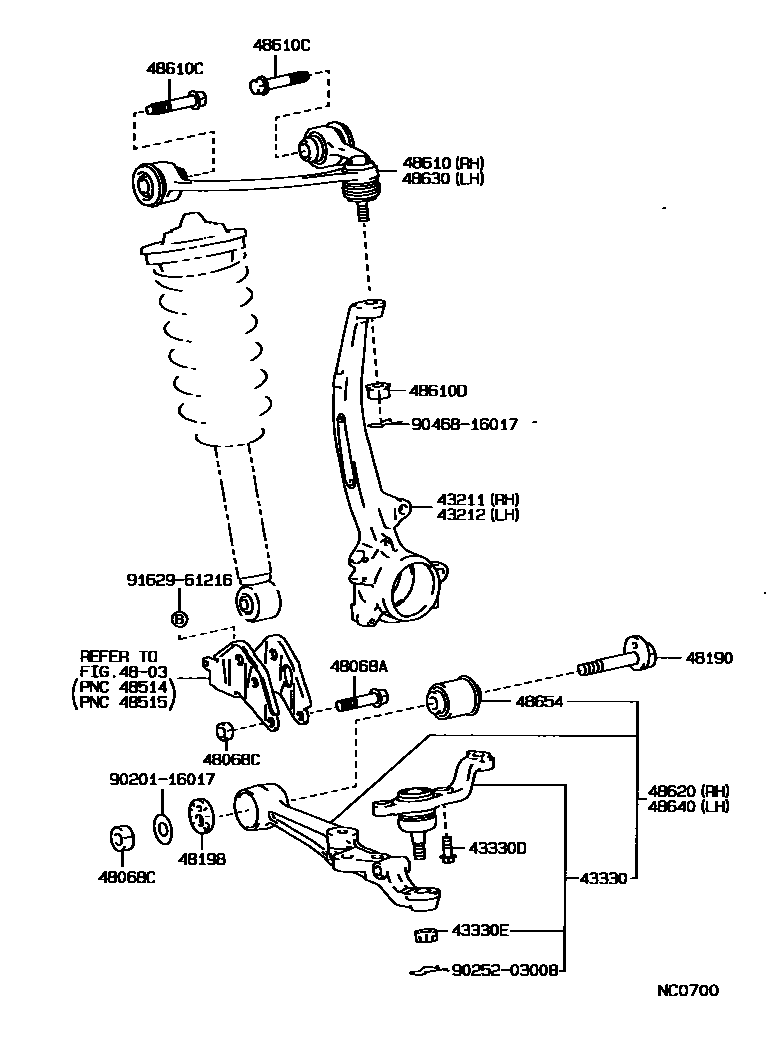

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-50010iUCF10198912-199208

main43211-50030iUCF10199208-199410

43212KNUCKLE, STEERING, LH

main43212-50010iUCF10198912-199208

main43212-50030iUCF10199208-199410

43330JOINT ASSY, LOWER BALL, FRONT

main43330-59015iUCF10198912-199208

RH

main43330-59025iUCF10199208-199410

RH

main43340-59015iUCF10198912-199208

LH

main43340-59025iUCF10199208-199410

LH

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-12141×4iUCF10198912-199410

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-16050×2iUCF10198912-199410

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12101×2iUCF10198912-199410

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-12091×2iUCF10198912-199410

SHOCK ABSORBER SIDE

main94115-71600×2iUCF10198912-199410

BODY SIDE

48190CAM ASSY, CAMBER ADJUST

main48190-50020×2iUCF10198912-199410

48198CAM, CAMBER ADJUST, NO.2

main48198-50020×2iUCF10198912-199410

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-50010iUCF10198912-199208

main48610-50020iUCF10199208-199410

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90105-12173×4iUCF10198912-199301

main90105-12258×4iUCF10199301-199410

48610DNUT(FOR SUSPENSION UPPER ARM)

main90171-12002×2iUCF10198912-199410

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-50010iUCF10198912-199208

main48620-50020iUCF10199208-199410

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-50010iUCF10198912-199208

main48630-50020iUCF10199208-199410

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-50010iUCF10198912-199208

main48640-50020iUCF10199208-199410

48654BUSH, LOWER ARM

main48654-50010×2iUCF10198912-199410

9020116017

main90201-16017

9025203008

main90252-03008

9046816017

main90468-16017

9162961216

main91629-61216

21 parts on this diagram · 1 diagram in section
