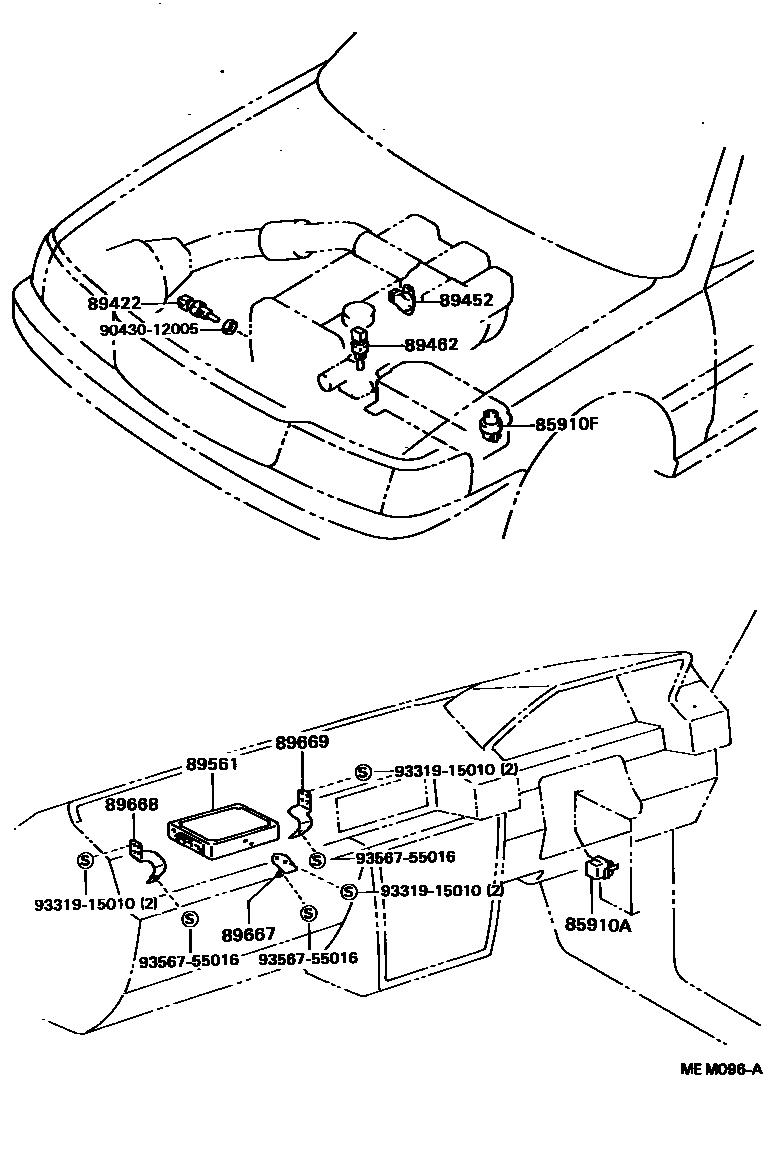

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iGX71,MX75198812-199205

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGX71,MX75198812-199205

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGX71,MX75198812-199205

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iMX75198812-199205

main89452-22010iGX71198812-199205

89462SWITCH, START INJECTOR TIME

main89462-20020iGX71198812-199012

main89462-20030iMX75198812-199012

89561COMPUTER, FUEL INJECTION

main89561-22090iGX71198812-199205

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-22060iGX71,MX75198812-199205

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-22120iGX71,MX75198812-199205

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-22120iGX71,MX75198812-199205

9043012005

main90430-12005

9331915010

main93319-15010

9356755016

main93567-55016

12 parts on this diagram · 2 diagrams in section
