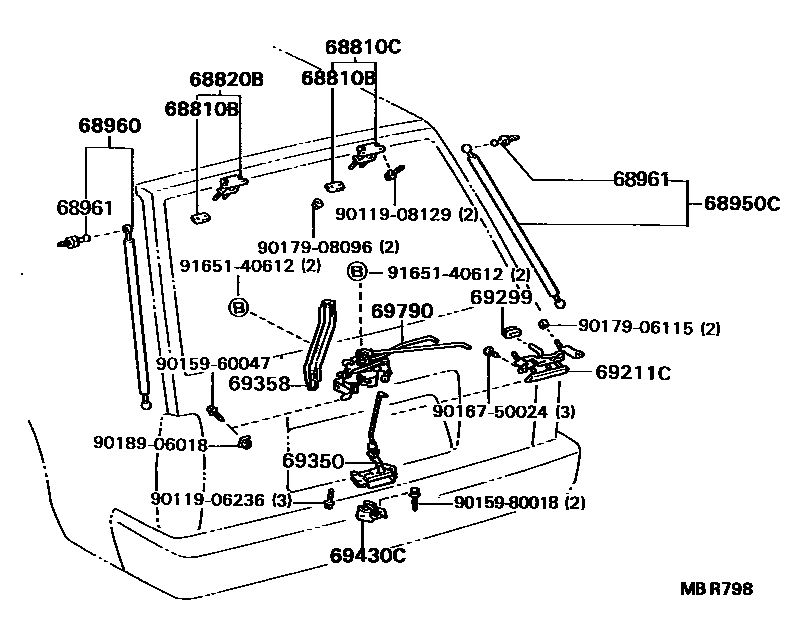

BACK DOOR LOCK & HANDLE

68810BPAD, BACK DOOR HINGE

main68838-23011iRX72198810-199302

68810CHINGE ASSY, BACK DOOR, RH

main68810-23011iRX72198810-199302

68820BHINGE ASSY, BACK DOOR, LH

main68810-23011iRX72198810-199302

68950CSTAY ASSY, BACK DOOR, RH

main68950-29395iRX72..GEN,V198810-199302

main68950-29405iRX72..GEN,V198810-199302

W(REAR WIPER)

main68950-29405iRX72..SA198812-199205

68960STAY ASSY, BACK DOOR, LH

main68960-29235iRX72..GEN,V198810-199302

main68960-29245iRX72..SA198812-199205

main68960-29245iRX72..GEN,V198810-199302

W(REAR WIPER)

68961BOLT, BACK DOOR STAY

main68961-23010iRX72198810-199302

69211CHANDLE, BACK DOOR OUTSIDE

main69209-23010iRX72198810-199302

69299GROMMET, BACK DOOR HANDLE

main69299-91701iRX72198810-199302

69350LOCK ASSY, BACK DOOR

main69350-91610iRX72198810-199302

69358PROTECTOR, BACK DOOR LOCK

main69358-23010iRX72198810-199302

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-23010iRX72198810-199302

69790CONTROL ASSY, BACK DOOR LOCK

main69790-23010iRX72..4FC;RX72..XL..(GEN,V)198810-199302

main69790-23020iRX72..SA;RX72..5F..GL198810-199302

W(POWER WINDOW)

9011906236

main90119-06236

9011908129

main90119-08129

9015960047

main90159-60047

9015980018

main90159-80018

9016750024

main90167-50024

9017906115

main90179-06115

9017908096

main90179-08096

9018906018

main90189-06018

9165140612

main91651-40612

21 parts on this diagram · 1 diagram in section
