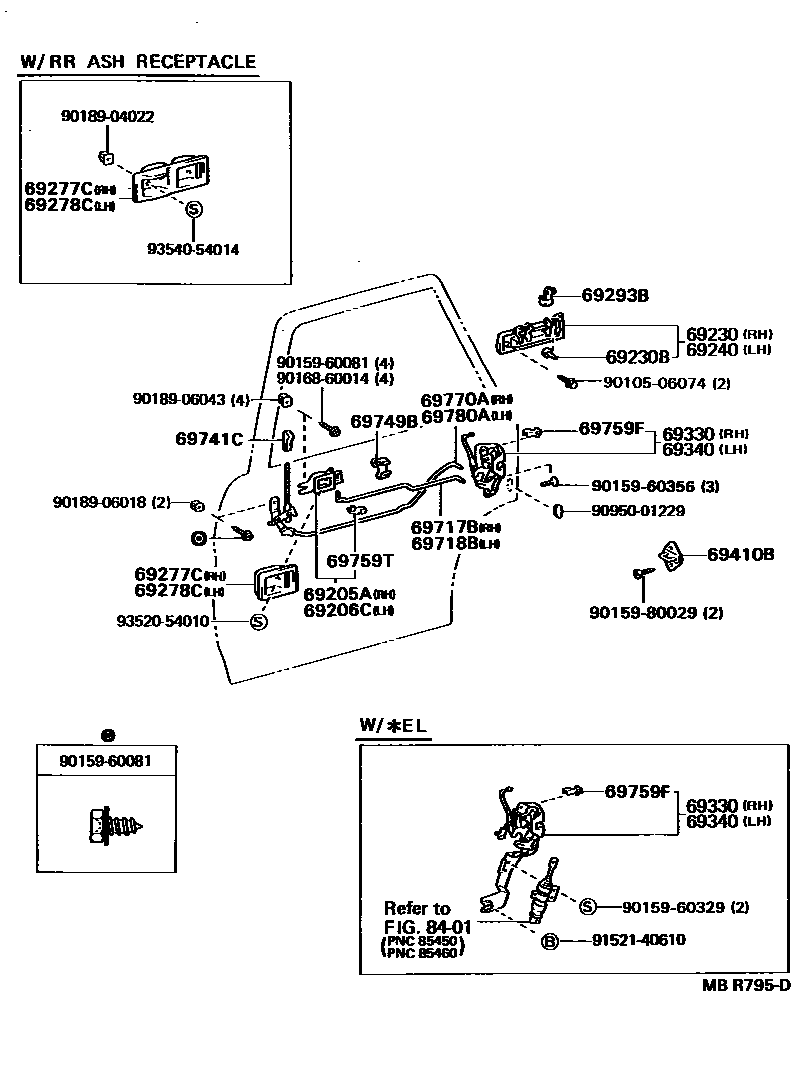

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-91601-02iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main69205-91601-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main69205-91601-04iRX72..GEN,V198810-199008

BLUE,TRIM8#

main69205-91601-06iGX71,MX75,RX7#198810-199302

SABLE,TRIM4#

main69205-91601-13iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-91601-02iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main69206-91601-03iGX71,MX75,RX7#..SA198812-199009

COOL GRAY,TRIM1#

main69206-91601-04iRX72..GEN,V198810-199008

BLUE,TRIM8#

main69206-91601-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

main69206-91601-13iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-22080iGX71,MX75,RX7#,YX72198810-199302

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×4iGX71,MX75,RX7#,YX72198810-199302

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-22070iGX71,MX75,RX7#,YX72198810-199302

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22050-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main69277-22050-06iRX72..4FC; RX72..5F..GL198810-199302

SABLE,TRIM4#; W(POWER WINDOW),SABLE,TRIM4#

main69277-22050-13iRX72..5F..GL199008-199009

MEDIUM GRAY,TRIM1#

main69277-22050-14iRX72..4FC; RX72..5F..GL198810-199008

BLUE,TRIM8#; W(POWER WINDOW),BLUE,TRIM8#

main69277-22050-22iRX72..4FC; RX72..5F..GL198810-199302

NEW MAROON,TRIM3#; W(POWER WINDOW),NEW MAROON,TRIM3#

main69297-22010-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main69297-22010-06iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main69297-22010-13iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL199009-199302

MEDIUM GRAY,TRIM1#

main69297-22010-14iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main69297-22010-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69277-22050-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main69277-22050-06iRX72..4FC; RX72..5F..GL198810-199302

SABLE,TRIM4#; W(POWER WINDOW),SABLE,TRIM4#

main69277-22050-13iRX72..4FC199008-199302

W(POWER WINDOW),MEDIUM GRAY,TRIM1#

main69277-22050-14iRX72..4FC; RX72..5F..GL198810-199008

BLUE,TRIM8#; W(POWER WINDOW),BLUE,TRIM8#

main69277-22050-22iRX72..4FC; RX72..5F..GL198810-199302

NEW MAROON,TRIM3#; W(POWER WINDOW),NEW MAROON,TRIM3#

main69298-22010-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main69298-22010-06iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main69298-22010-13iRX72..4FC;RX72..XL..(GEN,V)199008-199009

MEDIUM GRAY,TRIM1#

main69298-22010-14iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main69298-22010-22iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iGX71,MX75,RX7#,YX72..SA; RX72..GEN,V199008-199302

RH; WHITE

main69293-12060iGX71,MX75,RX7#,YX72..SA; RX72..GEN,V199008-199302

LH; YELLOW

69330LOCK ASSY, REAR DOOR, RH

main69330-22131iRX72..4FC; RX72..5F..GL198810-199302

W(POWER WINDOW)

main69330-22140iRX72..4FC;RX72..XL..V198810-199302

main69330-22200iMX75,RX7#,YX72..(GL,STD,XL)..(GEN,SA)198810-199302

main69330-22210iGX71,MX75..GLX198812-199205

69340LOCK ASSY, REAR DOOR, LH

main69340-22141iRX72..4FC; RX72..5F..GL198810-199302

W(POWER WINDOW)

main69340-22150iRX72..4FC;RX72..XL..V198810-199302

main69340-22210iMX75,RX7#,YX72..(GL,STD,XL)..(GEN,SA)198810-199302

main69340-22220iGX71,MX75..GLX198812-199205

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070×2iRX72..GEN,V198810-199210

main69410-87001×2iGX71,MX75,RX7#,YX72..SA198812-199210

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22041iGX71,MX75,RX7#,YX72198810-199302

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22041iGX71,MX75,RX7#,YX72198810-199302

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-30030-03×2iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main69741-30030-13×2iGX71,MX75,RX7#,YX72199009-199302

MEDIUM GRAY,TRIM1#

main69741-30030-16×2iRX72..GEN,V198810-199302

SABLE,TRIM4#

main69741-30030-32×2iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main69741-30030-34×2iRX72..GEN,V199008-199302

BLUE

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040×2iGX71,MX75,RX7#,YX72198810-199302

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040×2iGX71,MX75,RX7#,YX72198810-199302

YELLOW

main69759-20050iGX71,MX75,RX7#,YX72198810-199008

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-22040iGX71,MX75,RX7#,YX72198810-199302

ORANGE

main69759-22050iGX71,MX75,RX7#,YX72198810-199302

VIOLET

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-22040iGX71,MX75,RX7#,YX72198810-199302

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-22040iGX71,MX75,RX7#,YX72198810-199302

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506074

main90105-06074

9015960081

main90159-60081

9015960329

main90159-60329

9015960356

main90159-60356

9015980029

main90159-80029

9016860014

main90168-60014

9018904022

main90189-04022

9018906018

main90189-06018

9018906043

main90189-06043

9095001229

main90950-01229

9152140610

main91521-40610

9352054010

main93520-54010

9354054014

main93540-54014

33 parts on this diagram · 1 diagram in section
