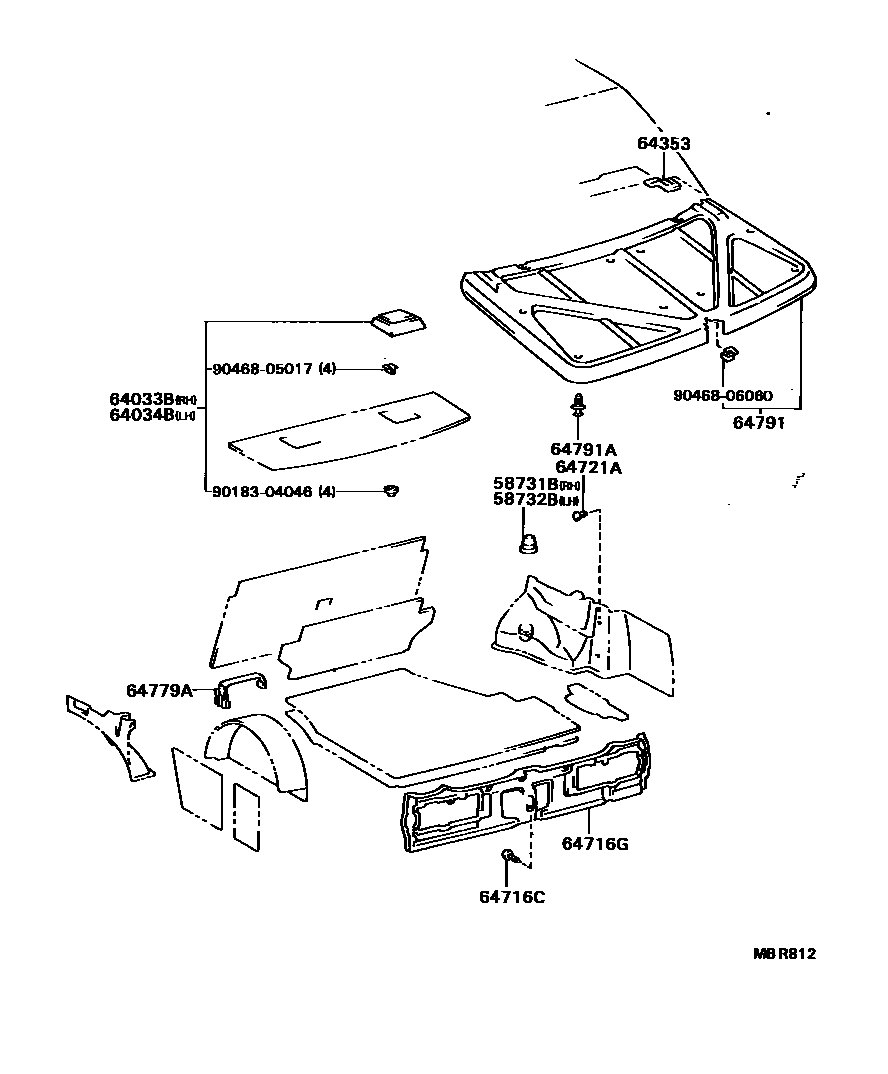

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58731BCAP, REAR ABSORBER, RH

main58731-22020-23iGX71,MX75,RX73,YX72198812-199009

GRAY,TRIM1#,4#

58732BCAP, REAR ABSORBER, LH

main58731-22020-23iGX71,MX75,RX73,YX72198812-199009

GRAY,TRIM1#,4#

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040-13iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main64033-22040-16iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040-13iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

main64033-22040-16iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-22010iRX73,YX72198812-199205

RH

main64354-22010iRX73,YX72198812-199205

LH

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-01×12iGX71,MX75198812-199205

BLACK

main90467-05004-33×12iGX71,MX75198812-199205

GRAY,TRIM1#,4#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-22150iGX71,MX75198812-199205

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-B0×4iGX71,MX75,RX73198812-199205

LIGHT GRAY,TRIM1#,4#

64779ASTOPPER, SPARE WHEEL COVER

main64779-22010iGX71,MX75,RX73,YX72198812-199205

64791COVER, BACK DOOR TRIM

main64791-22010iGX71,MX75..GLX198812-199205

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07067×18iGX71,MX75..GLX198812-199205

9018304046

main90183-04046

9046805017

main90468-05017

9046806060

main90468-06060

14 parts on this diagram · 1 diagram in section
