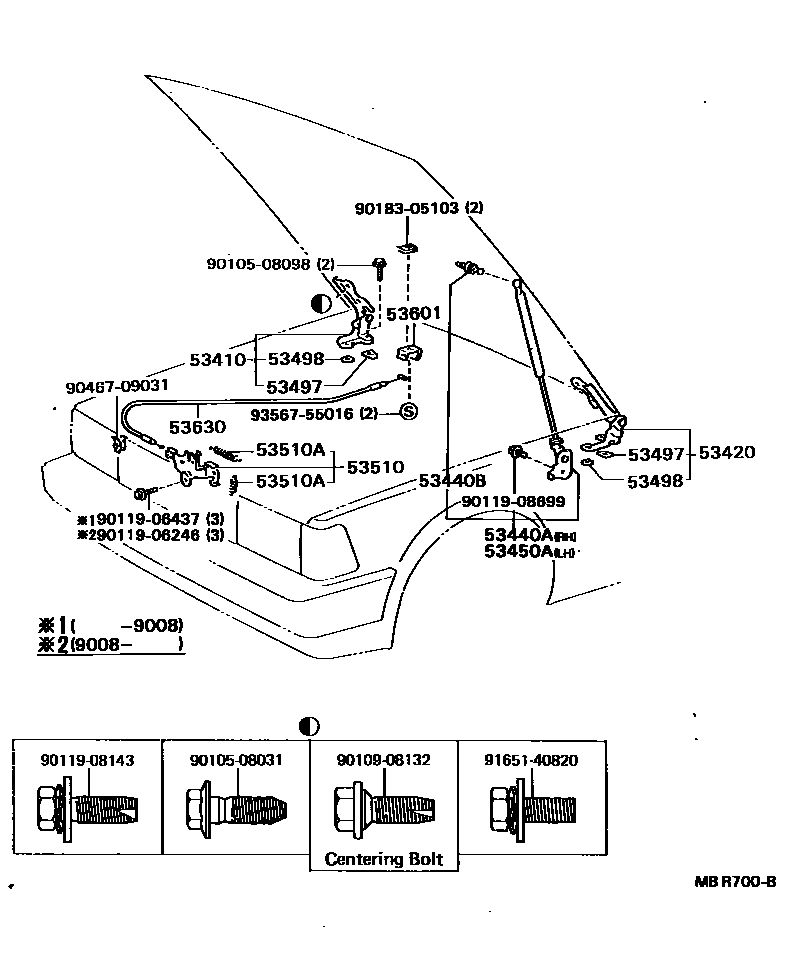

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22051iRX72..GEN,V198810-199302

53420HINGE ASSY, HOOD, LH

main53420-22051×2iGX71,MX75,RX7#,YX72..SA198812-199205

53440ASUPPORT ASSY, HOOD, RH

main53440-29035iRX72..GEN,V198810-199302

53440BBOLT, HOOD SUPPORT, NO.1

main68961-22010×2iGX71,MX75,RX7#,YX72198810-199302

53450ASUPPORT ASSY, HOOD, LH

main53450-29035iRX72..GEN,V198810-199302

53497PAD, HOOD HINGE, NO.1

main53497-17011iGX71,MX75,RX7#,YX72198810-199302

53498PAD, HOOD HINGE, NO.2

main53498-12011iGX71,MX75,RX7#,YX72198810-199008

53510LOCK ASSY, HOOD

main53510-22230iGX71,MX75,RX7#,YX72..RHD198810-199302

main53510-91602iRX72..LHD198810-199302

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iGX71,MX75,RX7#,YX72..SA; RX72..GEN,V199008-199302

WD=0.9,CW=26.5, WD=0.9; WD=0.9,CW=26.5,WD=0.9

main90506-18061iGX71,MX75,RX7#,YX72198812-199008

WD=1.8,CW=18,CW=18, WD=1.9

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-10iRX72..GEN,V198810-199008

DARK BLUE,TRIM8#

main53601-20060-23iGX71,MX75,RX7#,YX72..SA198812-199009

GRAY,TRIM1#

main53601-20060-33iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

main53601-20060-36iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

main53601-20060-42iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22110iRX72..RHD..GEN198810-199302

main53630-22130iRX72..LHD198810-199302

main53630-22150iGX71,MX75,RX7#,YX72..SA198812-199205

9010508031

main90105-08031

9010508098

main90105-08098

9010908132

main90109-08132

9011906246

main90119-06246

9011906437

main90119-06437

9011908143

main90119-08143

9011908699

main90119-08699

9018305103

main90183-05103

9046709031

main90467-09031

9165140820

main91651-40820

9356755016

main93567-55016

22 parts on this diagram · 1 diagram in section
