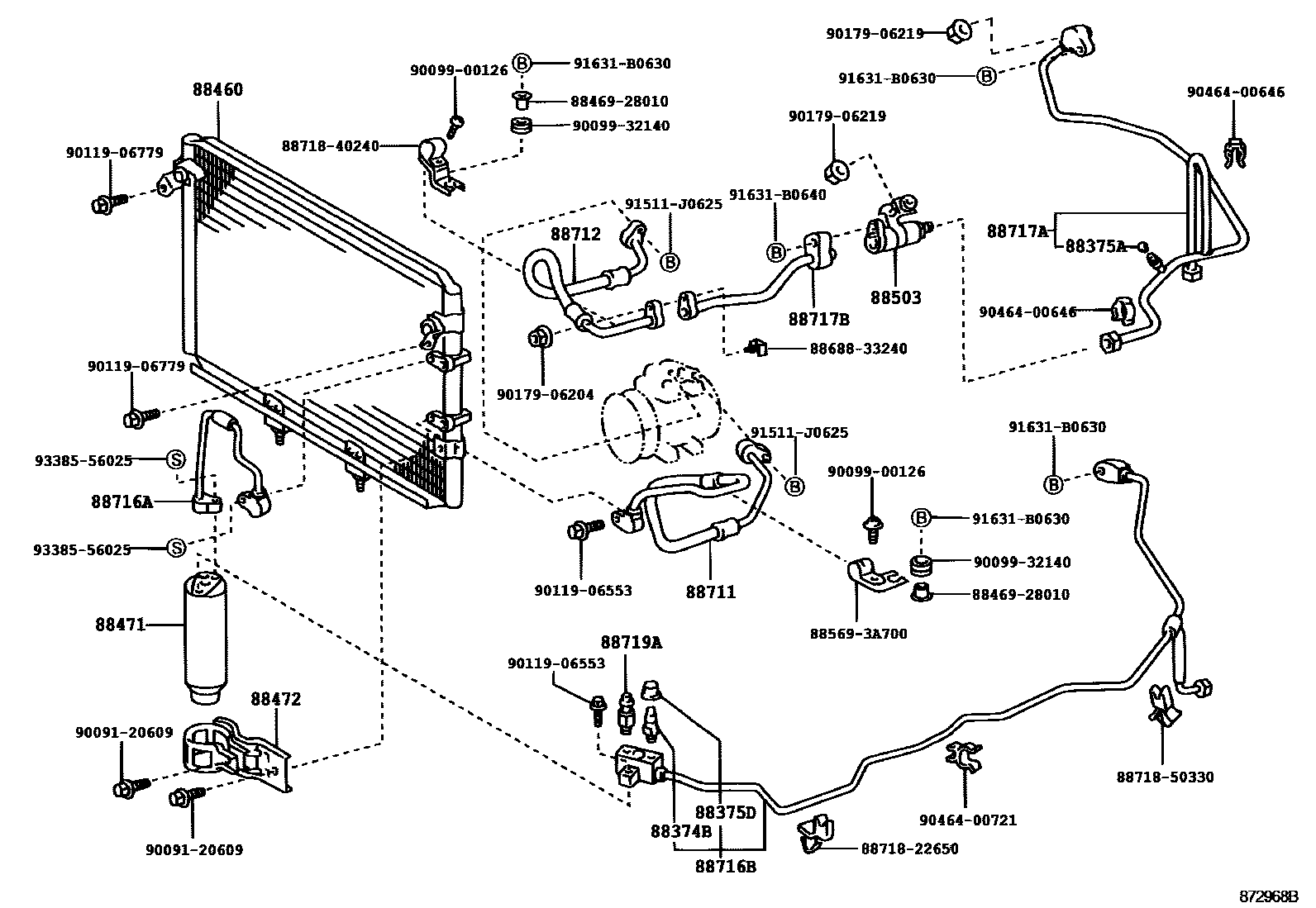

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1REAR COOLER PIPE 0004 1O RING

88374BVALVE, SERVICE, NO.1

main88374-30010iGZG50199810

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30290iGZG50..LHD199810

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGZG50..LHD199810-200203

88460CONDENSER ASSY, COOLER

main88460-40090iGZG50199810

88471TANK, RECEIVER AIR CONDITIONER

main88471-30370iGZG50199810

88472BRACKET, RECEIVER TANK, NO.1

main88472-40080iGZG50199810

88503REGULATOR ASSY, PRESSURE

main88503-40040iGZG50199810

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-40160iGZG50199810

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-40120iGZG50199810

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-40700iGZG50199810

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-40710iGZG50..RHD199810-200203

main88716-40711iGZG50..RHD200203

main88716-40760iGZG50..LHD199810-200203

main88716-40761iGZG50..LHD200203

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-40370iGZG50..RHD199810

main88717-40380iGZG50..LHD199810

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-40350iGZG50199810

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-40020iGZG50199810

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

885693A700CLAMP (FOR COOLER RELAY)

main88569-3A700

8868833240BRACKET, COOLER DIAPHRAGM

main88688-33240

8871822650PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22650

8871840240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-40240

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009120609

main90091-20609

9009900126

main90099-00126

9009932140

main90099-32140

9011906553

main90119-06553

9011906779

main90119-06779

9017906204

main90179-06204

9017906219

main90179-06219

9046400646

main90464-00646

9046400721

main90464-00721

91511J0625

main91511-J0625

91631B0630

main91631-B0630

91631B0640

main91631-B0640

9338556025

main93385-56025

33 parts on this diagram · 4 diagrams in section
