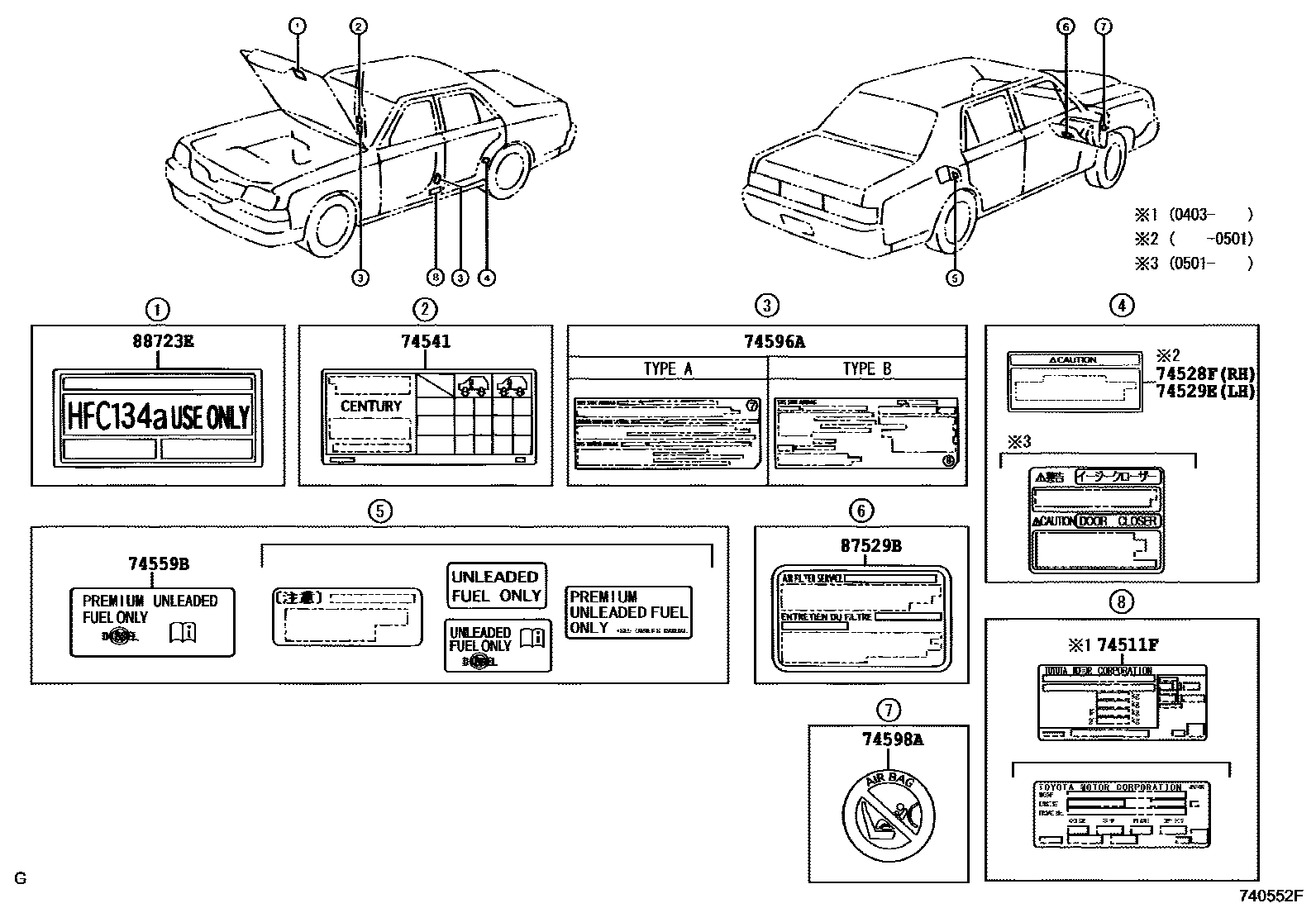

CAUTION PLATE (EXTERIOR & INTERIOR)

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iGZG50..RHD200403

*111,W/DESTINATION PACKAGE

main74511-48020iGZG50200403

*111

main74511-48030iGZG50..LHD200403

*111,CHINA SPEC

74528FLABEL, DOOR CLOSER CAUTION, RH

main74528-40020iGZG50199810-200412

main74528-50010iGZG50200501-200606

main74528-50011iGZG50200606

74529ELABEL, DOOR CLOSER CAUTION, LH

main74528-50010iGZG50200501-200606

main74528-50011iGZG50200606

main74529-40020iGZG50199810-200501

74541PLATE, TIRE PRESSURE CAUTION

main42661-40170iGZG50199810

74559BLABEL, FUEL INFORMATION

main74559-14050iGZG50199810-201409

main74559-20140iGZG50201410

main74559-40010iGZG50..LHD199810

CHINA SPEC

main74559-50010iGZG50..RHD199810-201501

BRUNEI OR SINGAPORE OR THAILAND SPEC

main74559-60030iGZG50..RHD201502

BRUNEI OR SINGAPORE OR THAILAND SPEC

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12011iGZG50199810

TYPE A:REFER TO ILLUSTRATION

main74596-30050iGZG50..LHD199810

TYPE B:REFER TO ILLUSTRATION

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-30040iGZG50199810

87529BLABEL, A/C FILTER INFORMATION

main87529-50010iGZG50199810

88723ELABEL, COOLER SERVICE CAUTION

main88723-20040iGZG50199810

9 parts on this diagram · 1 diagram in section
