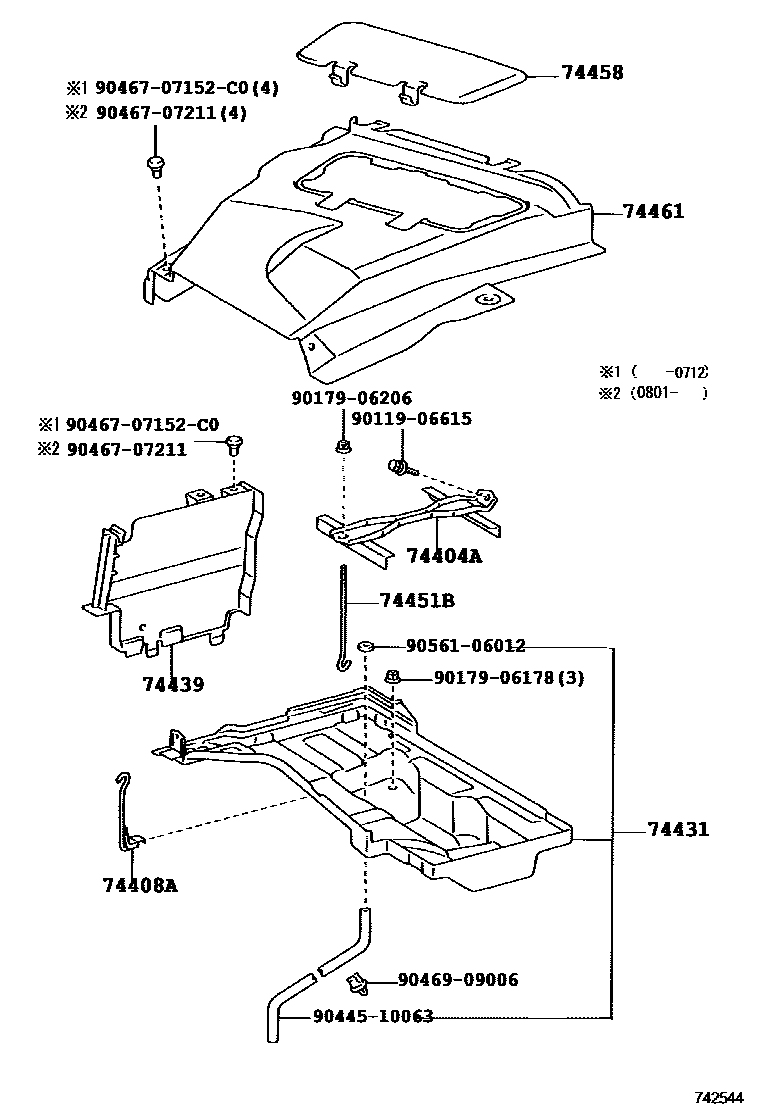

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-40010iGZG50199810

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-40010iGZG50199810

74431TRAY, BATTERY

main74431-40010iGZG50..RHD199810

main74431-40020iGZG50..LHD199810

74439PLATE, BATTERY INSULATOR

main74439-40010iGZG50..RHD199810

74451BBOLT, BATTERY CLAMP

main74451-40010iGZG50199810

74458LID, BATTERY COVER, NO.1

main74458-40010iGZG50..RHD199810

74461COVER, BATTERY

main74461-40010iGZG50..RHD199810

9011906615

main90119-06615

9017906178

main90179-06178

9017906206

main90179-06206

9044510063

main90445-10063

9046707152C0

main90467-07152C0

9046707211

main90467-07211

9046909006

main90469-09006

9056106012

main90561-06012

15 parts on this diagram · 1 diagram in section
