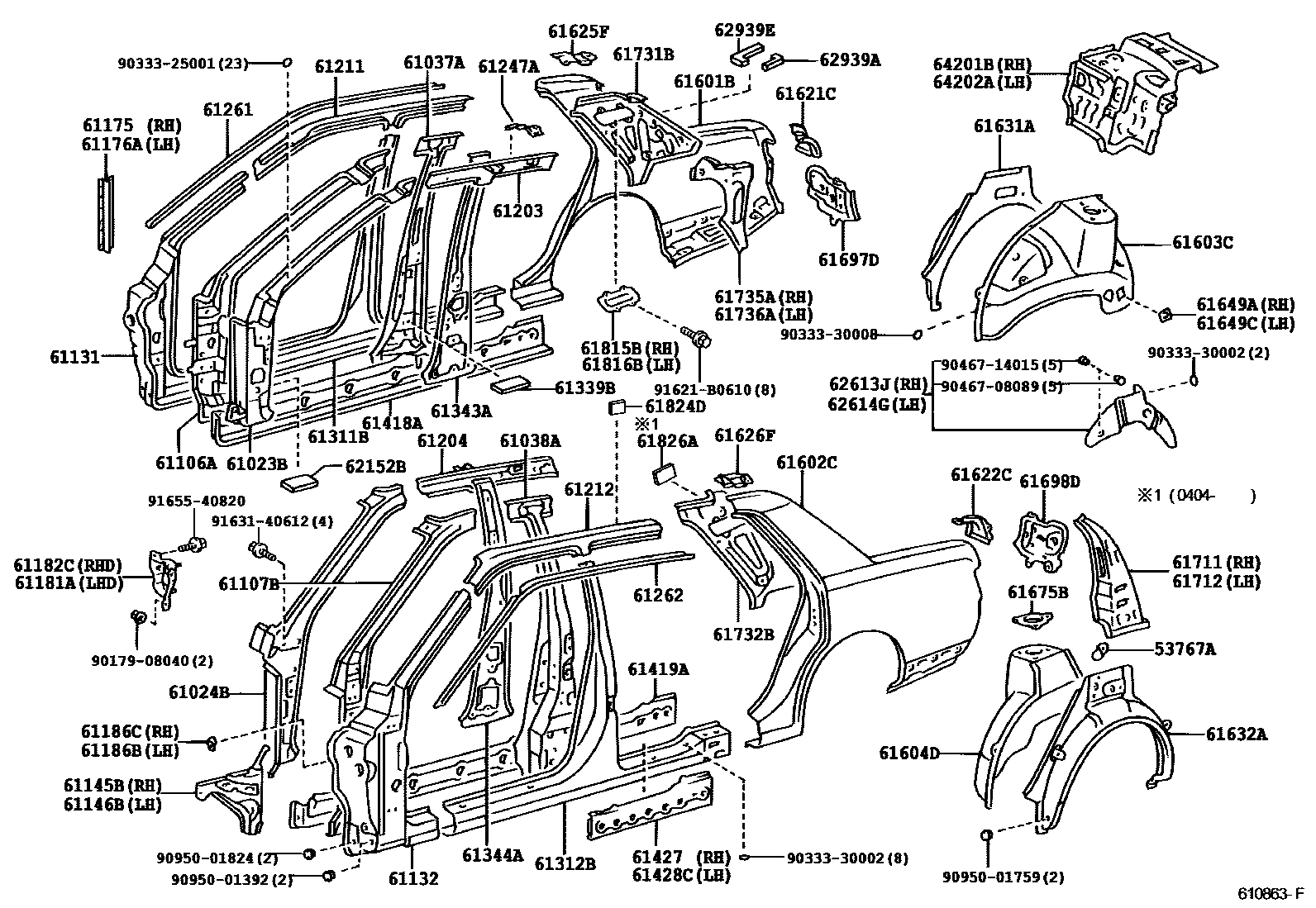

SIDE MEMBER
53767ABRACKET, BATTERY WIRRING HARNESS
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61181ABRACKET, INSTRUMENT SIDE, RH
61182CBRACKET, INSTRUMENT SIDE, LH
61186BBRACKET, INSTRUMENT PANEL SIDE, NO.3 LH
61186CBRACKET, FRONT PILLAR TO COWL SIDE PANEL, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61247AREINFORCEMENT, ROOF SIDE RAIL, INNER
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61601BPANEL SUB-ASSY, QUARTER, RH
61602CPANEL SUB-ASSY, QUARTER, LH
CHINA SPEC;SINGAPORE OR HONG KONG OR THAILAND OR BRUNEI SPEC
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61649APLATE, QUARTER WHEEL HOUSE
61649CPLATE, QUARTER WHEEL HOUSE, LH
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61815BCOVER, ROOF SIDE, INNER UPPER RH
61816BCOVER, ROOF SIDE, INNER UPPER LH
61824DPLATE, NOISE CONTROL, NO.1
61826APLATE, NOISE CONTROL, NO.3
62152BPAD, COWL SIDE SILENCER, NO.2
62613JINSURATOR, QUARTER WHEEL HOUSE, NO.2 RH
62614GINSURATOR, QUARTER WHEEL HOUSE, NO.2 LH
62939ASILENCER, QUARTER VENT
62939ESILENCER, QUARTER VENT
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
64202ASTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH
9017908040
main90179-08040
9033325001
main90333-25001
9033330002
main90333-30002
9033330008
main90333-30008
9046708089
main90467-08089
9046714015
main90467-14015
9095001392
main90950-01392
9095001759
main90950-01759
9095001824
main90950-01824
91621B0610
main91621-B0610
9163140612
main91631-40612
9165540820
main91655-40820
77 parts on this diagram · 1 diagram in section
