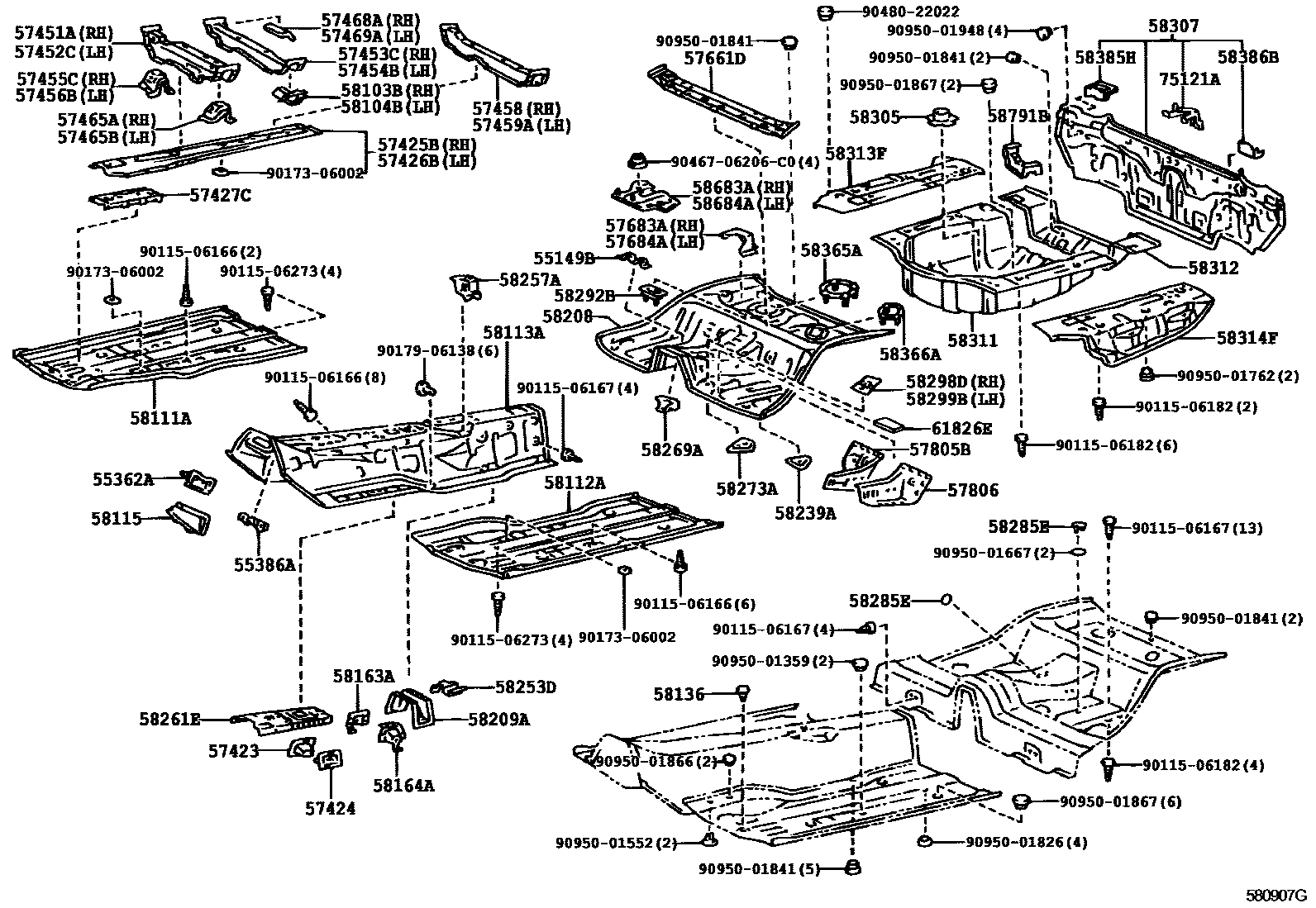

FLOOR PAN & LOWER BACK PANEL

55149BBRACKET, JUNCTION BLOCK

main55149-40010iGZG50199810

55362ABRACKET, PARKING BRAKE MOUNTING

main55362-40020iGZG50..RHD199810

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-40020iGZG50199810

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-50010iGZG50199810

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-50010iGZG50199810

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-50020iGZG50199810

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-50020iGZG50199810

57427CREINFORCEMENT, FRONT FLOOR, UPPER

main57427-50010×2iGZG50199810

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-50020iGZG50199810

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-50020iGZG50199810

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-40020iGZG50199810

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-40010iGZG50199810

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-50020iGZG50199810

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-50020iGZG50199810

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57458-40030iGZG50199810

57459AMEMBER, FRONT FLOOR CROSS, NO.2

main57459-40010iGZG50199810

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-50020iGZG50199810

57465BBRACKET, FRONT SEAT, INNER

main57466-50020iGZG50199810

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-50020iGZG50199810

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-50020iGZG50199810

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-40011iGZG50199810

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-50020iGZG50199810

57684ABRACKET, FUEL TANK MOUNTING, NO.2

main57684-50020iGZG50199810

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-50020iGZG50199810

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-50020iGZG50199810

58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH

main58103-40010iGZG50199810

58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH

main58104-40010iGZG50199810

58111APAN, FRONT FLOOR, RH

main58111-50902iGZG50199810

58112APANEL, FRONT FLOOR, LH

main58112-40903iGZG50..LHD199810

main58112-50902iGZG50..RHD199810

58113APANEL, FRONT FLOOR, CENTER

main58113-40901iGZG50..RHD199810-200406

main58113-40903iGZG50..LHD199810

main58113-40905iGZG50..RHD200406

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-40010iGZG50..RHD199810

58136COVER, FRONT FLOOR HOLE

main58136-30020×2iGZG50199810-200404

main90333-30002×2iGZG50200405

58163ARETAINER, CONSOLE BOX MOUNTING, NO.1

main58163-40020iGZG50199810

58164ARETAINER, CONSOLE BOX MOUNTING

main58164-40010iGZG50199810

58208PAN, CENTER FLOOR

main58211-50080iGZG50199810

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-50020iGZG50199810

58239APLATE, BELT ANCHOR NUT

main58239-50020×2iGZG50199810

58253DBRACKET, PARKING BRAKE CABLE

main58253-50010iGZG50199810

58257ACLAMP, PARKING BRAKE CABLE, NO.2

main58257-50010iGZG50199810

58261ECOVER, TRANSMISSION

main58261-40030iGZG50200412

main58261-50020iGZG50199810-200412

58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3

main58269-50010iGZG50199810

58273AREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, RH

main58273-50020×2iGZG50199810

58285ECOVER, CENTER FLOOR HOLE

main58285-50010×4iGZG50199810

58292BREINFORCEMENT, FUEL FILTER MOUNTING

main58292-50020iGZG50199810

58298DREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-40020iGZG50199810

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58299-40020iGZG50199810

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-50010iGZG50199810

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-40010iGZG50..RHD199810-201701

HONG KONG OR SINGAPORE OR THAILAND SPEC

main58307-40040iGZG50..LHD; GZG50..RHD199810-201701

HONG KONG SPEC & EMBASSY PACKAGE OR THAILAND SPEC & EMBASSY PACKAGE

58311PAN, REAR FLOOR

main58311-40020iGZG50199810

58312PANEL, REAR BODY FLOOR, NO.1

main58312-40010iGZG50199810

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-40020iGZG50199810

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-40020iGZG50199810

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-50010iGZG50199810

58366ABRACKET, FUEL TANK SUPPORT, LH

main58366-50010iGZG50199810

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-40010×2iGZG50199810

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-40010×2iGZG50199810

58683APANEL, CENTER FLOOR SILENCER, RH

main58683-40020iGZG50199810

58684APANEL, CENTER FLOOR SILENCER, LH

main58684-40010iGZG50199810

58791BCARRIER, JACK

main58791-50030iGZG50199810

61826EPLATE, NOISE CONTROL, NO.3

main61826-22010×2iGZG50199810

75121ABRACKET, REAR LICENSE PLATE

main75121-40020×2iGZG50..RHD199810

9011506166

main90115-06166

9011506167

main90115-06167

9011506182

main90115-06182

9011506273

main90115-06273

9017306002

main90173-06002

9017906138

main90179-06138

9046706206C0

main90467-06206C0

9048022022

main90480-22022

9095001359

main90950-01359

9095001552

main90950-01552

9095001667

main90950-01667

9095001762

main90950-01762

9095001826

main90950-01826

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095001948

main90950-01948

78 parts on this diagram · 1 diagram in section
