FLOOR SIDE MEMBER

51681BRACKET, FLEXIBLE HOSE

main51681-50030iGZG50199810

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-50030iGZG50199810

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-40010iGZG50199810

53879KRETAINER, FRONT FENDER LINER

main53879-50010×6iGZG50199810

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-40010iGZG50199810-199904

main57016-40020iGZG50199904

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-40010iGZG50199810-199904

main57017-40020iGZG50199904

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-40020iGZG50..LHD199810

main57101-40030iGZG50..RHD199810

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-40020iGZG50..LHD199810

main57102-40030iGZG50..RHD199810

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-40020iGZG50199810

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-40020iGZG50199810

57111MEMBER, FRONT SIDE, RH

main57111-40020iGZG50..LHD199810

main57111-40030iGZG50..RHD199810

57112MEMBER, FRONT SIDE, LH

main57112-40020iGZG50..LHD199810

main57112-40030iGZG50..RHD199810

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-40010iGZG50199810

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-40010iGZG50199810

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-40010iGZG50199810

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-40010iGZG50199810

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-50010iGZG50199810

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-50010iGZG50199810

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57177-40010iGZG50..RHD199810-201701

main57177-40030iGZG50..LHD199810-201701

57185REINFORSEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER RH

main57185-40010iGZG50..RHD199810-201701

main57185-40020iGZG50..LHD199810-201701

57186REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER LH

main57186-40010iGZG50..RHD199810-201701

main57186-40020iGZG50..LHD199810-201701

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-40010iGZG50199810

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-50020iGZG50199810

57258BBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-50020iGZG50199810

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-40021iGZG50199810-201701

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-40010iGZG50199810-201701

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-40010iGZG50199810-201701

57417CREINFORCEMENT, FRONT FLOOR UNDER

main57417-50020iGZG50199810

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-40010iGZG50199810

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-40031iGZG50199810-201701

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-40031iGZG50199810-201701

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-40901iGZG50199810

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-40901iGZG50199810

57618BREINFORCEMENT, REAR BUMPER RETAINER, RH

main57618-40010iGZG50199810

57619AREINFORCEMENT, REAR BUMPER RETAINER, LH

main57619-40010iGZG50199810

57631CEXTENSION, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-40010iGZG50199810

57632CEXTENSION, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-40010iGZG50199810

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-50021iGZG50199810

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57605-50900iGZG50199810-200501

main57653-50020iGZG50200501

57715REINFORCEMENT, REAR BUMPER STAY, RH

main57715-40010iGZG50199810

57716REINFORCEMENT, REAR BUMPER STAY, LH

main57716-40010iGZG50199810

58149BPLATE, FRONT FLOOR REINFORCE NUT

main58149-50010×2iGZG50199810

58285CCOVER, REAR FLOOR HOLE

main58285-50010×2iGZG50199810

61826KPLATE, NOISE CONTROL

main61826-22010×2iGZG50199810

9011506167

main90115-06167

9011506182

main90115-06182

9011506273

main90115-06273

9011906684

main90119-06684

9011908636

main90119-08636

9011912299

main90119-12299

9011912300

main90119-12300

9017908241

main90179-08241

9033320001

main90333-20001

9033325001

main90333-25001

9033330002

main90333-30002

9033330008

main90333-30008

9095001356

main90950-01356

9095001552

main90950-01552

9095001665

main90950-01665

9095001666

main90950-01666

9095001668

main90950-01668

9095001676

main90950-01676

9095001678

main90950-01678

9095001680

main90950-01680

9095001710

main90950-01710

9095001759

main90950-01759

9095001761

main90950-01761

9095001808

main90950-01808

9095001841

main90950-01841

91655B1040

main91655-B1040

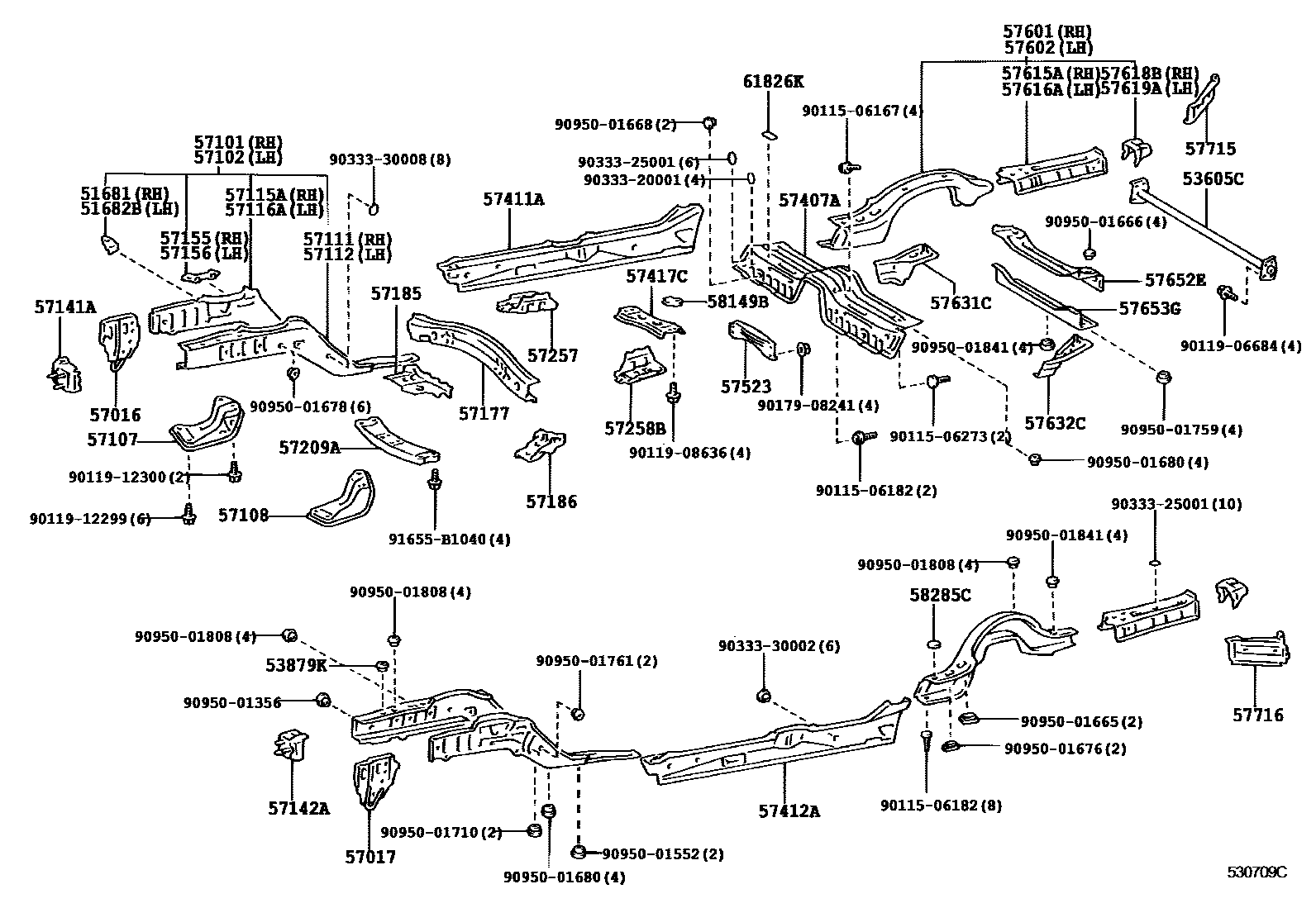

70 parts on this diagram · 1 diagram in section
