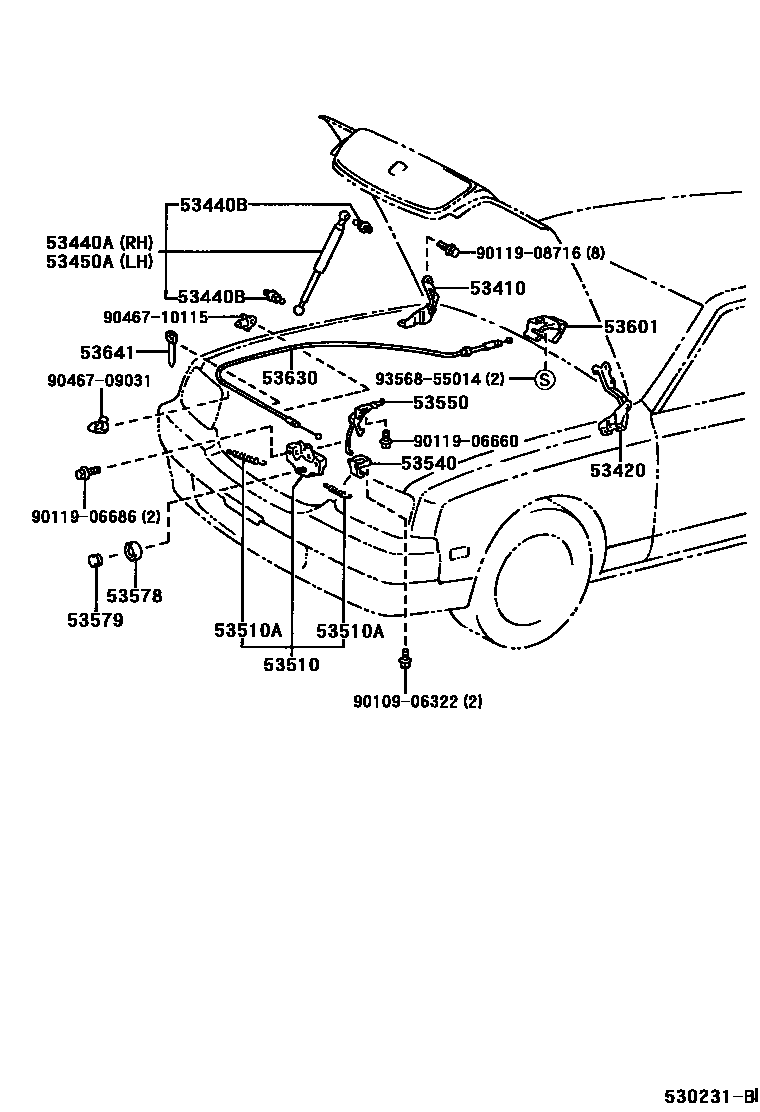

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-40010iGZG50..RHD199810-201701

main53410-40020iGZG50..LHD199810-201101

53420HINGE ASSY, HOOD, LH

main53420-40010iGZG50..RHD199810-201101

main53420-40020iGZG50..LHD199810-201701

53440ASUPPORT ASSY, HOOD, RH

main53440-49105iGZG50199810

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×4iGZG50199810

53450ASUPPORT ASSY, HOOD, LH

main53450-49075iGZG50199810

53510LOCK ASSY, HOOD

main53510-40020iGZG50..RHD199810

main53510-40030iGZG50..LHD199810

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iGZG50199810

WD=0.9,CW=20.5

main90506-18078iGZG50199810

WD=1.8,CW=18

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30010iGZG50199810-200002

main53540-30020iGZG50200002

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-40010iGZG50199810-200002

main53550-40011iGZG50200002

53578NUT, HOOD LOCK

main53578-50010iGZG50199810

53579CAP, HOOD LOCK NUT

main53579-50010iGZG50199810

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-E4iGZG50199810-201701

ORCHID,TRIM4#

main53601-20060-S4iGZG50199810-201701

MD.GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-40030iGZG50..RHD199810

main53630-40040iGZG50..LHD199810

53641CLAMP, HOOD LOCK CONTROL WIRE

main90463-13003iGZG50199810

9010906322

main90109-06322

9011906660

main90119-06660

9011906686

main90119-06686

9011908716

main90119-08716

9046709031

main90467-09031

9046710115

main90467-10115

9356855014

main93568-55014

21 parts on this diagram · 1 diagram in section
