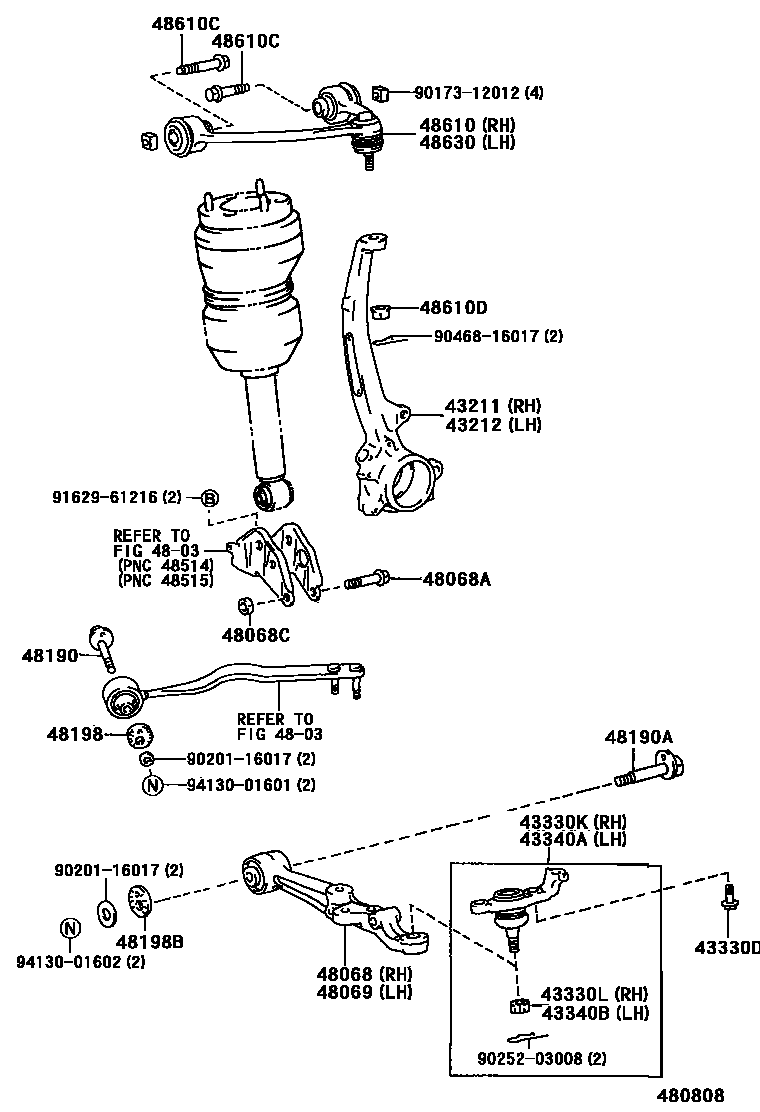

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-50050iGZG50199810

43212KNUCKLE, STEERING, LH

main43212-50050iGZG50199810

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-12141iGZG50199810

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-59036iGZG50199810

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16007iGZG50199810

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-59036iGZG50199810

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16007iGZG50199810

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-50020iGZG50199810

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12281iGZG50199810

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-12025iGZG50199810

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-50020iGZG50199810

48190CAM ASSY, CAMBER ADJUST

main48190-24020iGZG50199810

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-50040iGZG50199810

48198CAM, CAMBER ADJUST, NO.2

main48198-50030iGZG50199810

48198BCAM, CAMBER ADJUST, NO.2

main48198-50020iGZG50199810

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-59015iGZG50199810

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90105-12258iGZG50199810

48610DNUT(FOR SUSPENSION UPPER ARM)

main90171-12002iGZG50199810

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-59015iGZG50199810

9017312012

main90173-12012

9020116017

main90201-16017

9025203008

main90252-03008

9046816017

main90468-16017

9162961216

main91629-61216

9413001601

main94130-01601

9413001602

main94130-01602

27 parts on this diagram · 1 diagram in section
