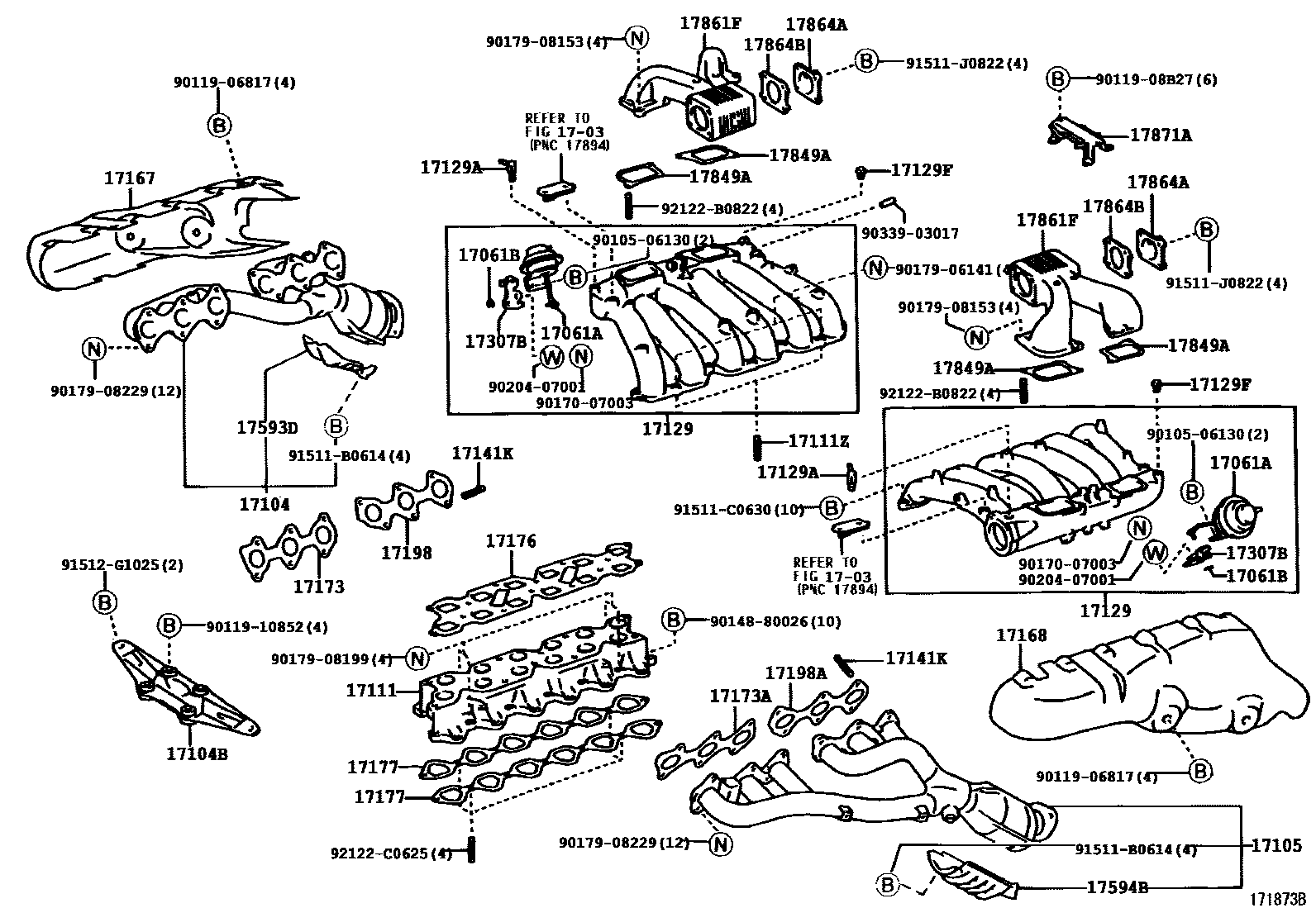

MANIFOLD
1703AIR CLEANER
17061ADIAPHRAGM SUB-ASSY
17061BRING, E(FOR SURGE TANK DIAPHRGM)
17104MANIFOLD SUB-ASSY, EXHAUST, RH
HONG KONG SPEC
17104BBRACKET SUB-ASSY, EXHAUST MANIFOLD
HONG KONG SPEC
17105MANIFOLD SUB-ASSY, EXHAUST, LH
HONG KONG SPEC
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17129TANK, INTAKE AIR SURGE
17129AUNION, NO.1
17129FPLUG, INTAKE MANIFOLD SUCTION HOLE
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17198GASKET, EXHAUST MANIFOLD, NO.2
17198AGASKET, EXHAUST MANIFOLD, NO.3
17307BLEVER SUB-ASSY, INTAKE AIR CONTROL
17593DPROTECTOR, EXHAUST PIPE, LOWER NO.1
HONG KONG SPEC
17594BPROTECTOR, EXHAUST PIPE, LOWER NO.2
HONG KONG SPEC
17849AGASKET, INTAKE AIR CONNECTOR
17861FCONNECTOR, INTAKE AIR
17864ACOVER, INTAKE AIR CONNECTOR
17864BGASKET, INTAKE AIR CONNECTOR COVER
17871ASTAY, AIR CONNECTOR
9010506130
main90105-06130
9011906817
main90119-06817
9011908B27
main90119-08B27
9011910852
main90119-10852
9014880026
main90148-80026
9017007003
main90170-07003
9017906141
main90179-06141
9017908153
main90179-08153
9017908199
main90179-08199
9017908229
main90179-08229
9020407001
main90204-07001
9033903017
main90339-03017
91511B0614
main91511-B0614
91511C0630
main91511-C0630
91511J0822
main91511-J0822
91512G1025
main91512-G1025
92122B0822
main92122-B0822
92122C0625
main92122-C0625
46 parts on this diagram · 1 diagram in section
