HEATING & AIR CONDITIONING - COMPRESSOR

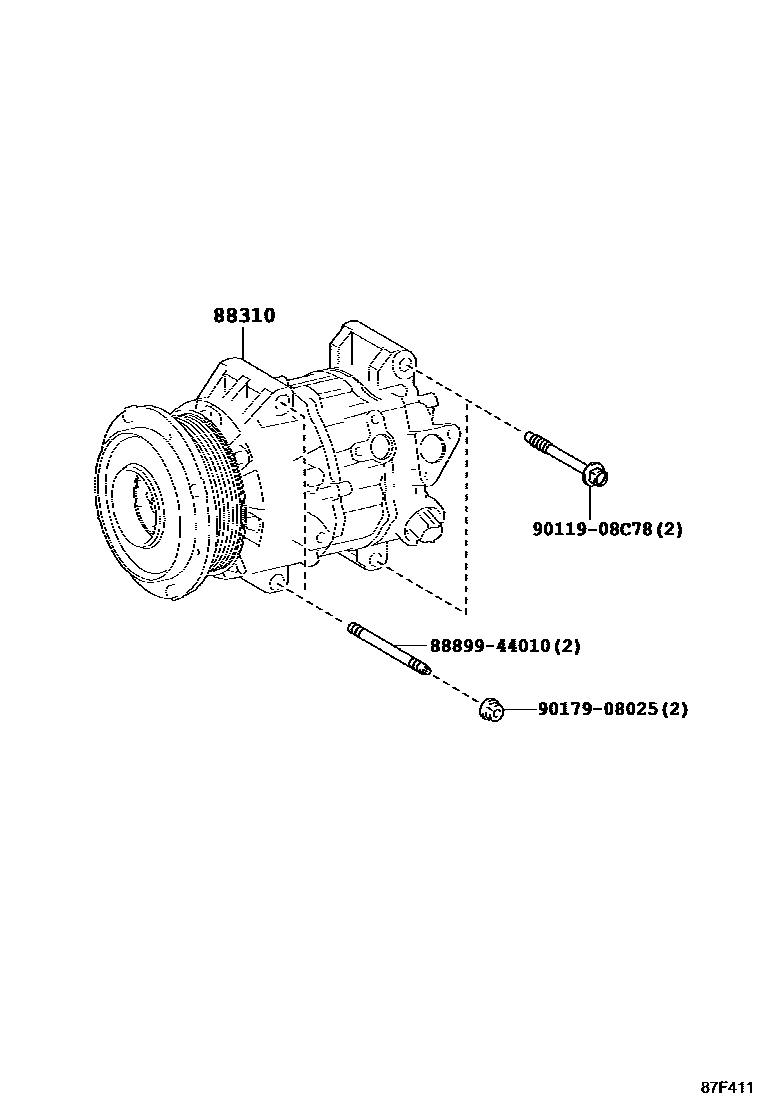

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-24190i201510-201511

main88310-24191i201512-201804

8889944010COVER, EVAPORATOR

main88899-44010

9011908C78

main90119-08C78

9017908025

main90179-08025

4 parts on this diagram · 1 diagram in section
