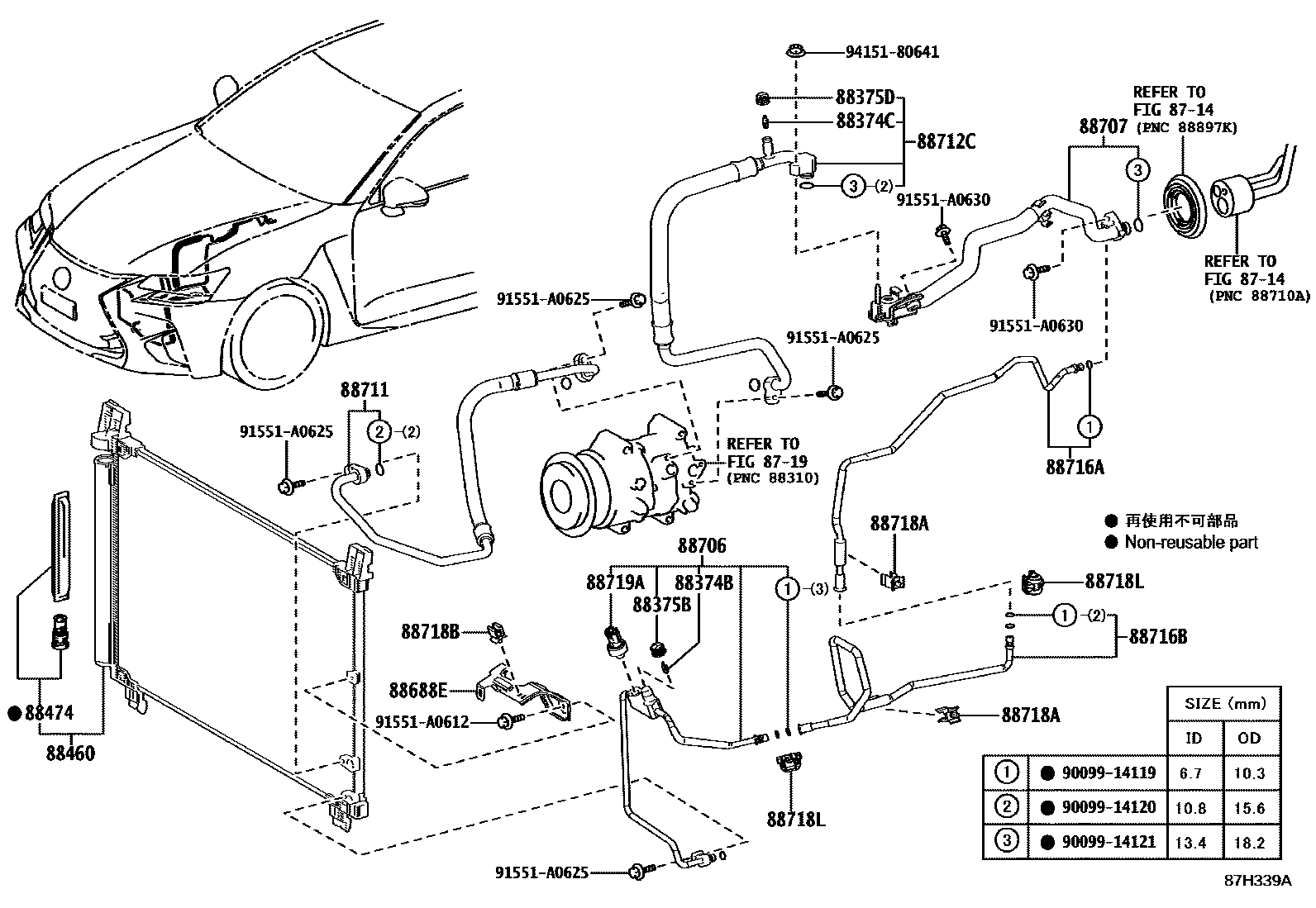

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iURL10201510-201804

88374CVALVE, SERVICE, NO.2

main88374-30010iURL10201510-201804

88375BCAP, SERVICE VALVE, NO.1

main88375-30320iURL10201510-201804

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iURL10201510-201804

88460CONDENSER ASSY, COOLER

main88460-30C70iURL10201510-201804

88474DRYER, COOLER

main88474-12010iURL10201510-201804

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iURL10201510-201804

88706PIPE SUB-ASSY, LIQUID

main88706-24170iURL10201510-201804

88707PIPE SUB-ASSY, SUCTION

main88707-24040iURL10201510-201804

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24190iURL10201510-201804

88712CHOSE, SUCTION

main88712-24230iURL10201510-201804

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-24330iURL10201510-201804

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-24340iURL10201510-201804

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-1A430iURL10201510-201804

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-32220iURL10201510-201804

88718LCLAMP, PIPING

main88718-2D150iURL10201510-201804

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iURL10201510-201804

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

26 parts on this diagram · 1 diagram in section
