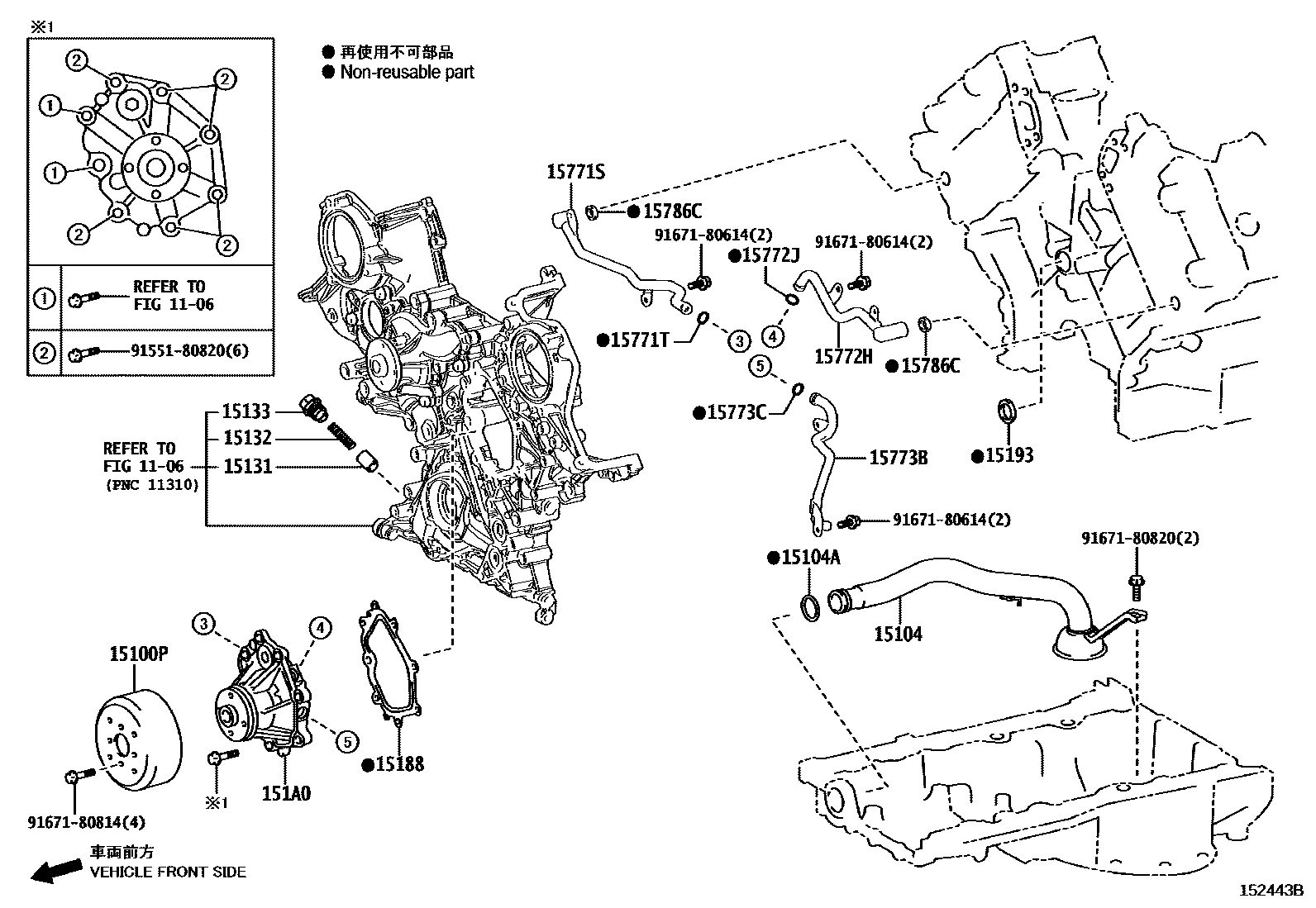

ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-38020i2URGSE..URL10201510-201804

15104STRAINER SUB-ASSY, OIL

main15104-38060i2URGSE..URL10201510-201804

15104ARING, O(FOR OIL STRAINER)

main96721-24028i2URGSE..URL10201510-201804

15131VALVE, OIL PUMP RELIEF

main15131-38070i2URGSE..URL10201510-201804

15132SPRING, OIL PUMP RELIEF VALVE

main15132-38070i2URGSE..URL10201510-201804

15133PLUG, OIL PUMP RELIEF VALVE

main15133-38070i2URGSE..URL10201510-201804

15188GASKET, OIL PUMP

main15193-38030i2URGSE..URL10201510-201804

15193GASKET, OIL PUMP

main15193-38010i2URGSE..URL10201510-201804

151A0PUMP ASSY, SCAVENGING

main151A0-38010i2URGSE..URL10201510-201804

15771SPIPE, OIL, NO.1

main15771-38010i2URGSE..URL10201510-201804

15771TRING, O(FOR OIL PIPE NO.1)

main90301-11019i2URGSE..URL10201510-201804

15772HPIPE, OIL, NO.2

main15772-38010i2URGSE..URL10201510-201804

15772JRING, O(FOR OIL PIPE NO.2)

main90301-11019i2URGSE..URL10201510-201804

15773BPIPE, OIL, NO.3

main15773-38020i2URGSE..URL10201510-201804

15773CRING, O(FOR OIL PIPE NO.3)

main90301-11019i2URGSE..URL10201510-201804

15786CSEAL, OIL PIPE

main15786-38010×2i2URGSE..URL10201510-201804

9155180820

main91551-80820

9167180614

main91671-80614

9167180814

main91671-80814

9167180820

main91671-80820

21 parts on this diagram · 1 diagram in section
