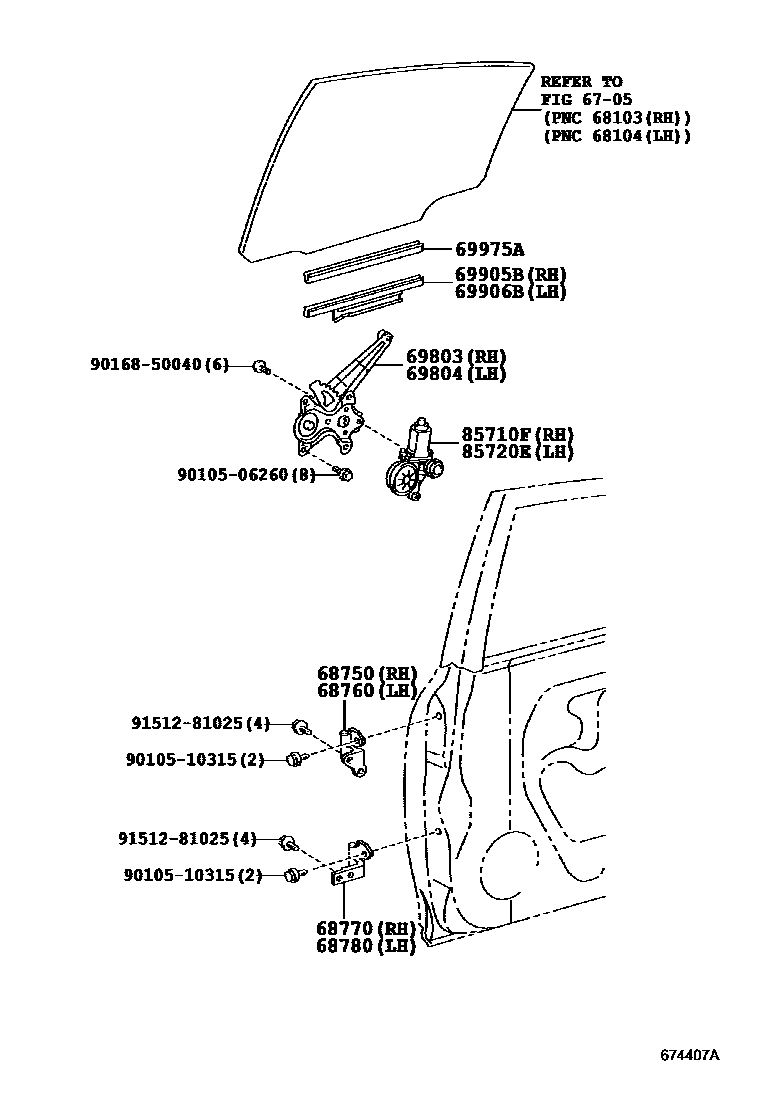

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68730-30180iGWS191200602-200709

68760HINGE ASSY, REAR DOOR, UPPER LH

main68740-30080iGWS191200602-200709

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30140iGWS191200602-200709

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30150iGWS191200602-200709

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iGWS191200602-200709

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iGWS191200602-200709

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iGWS191200602-200709

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iGWS191200602-200709

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60040×2iGWS191200602-200709

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30380iGWS191200709-200901

main85720-53060iGWS191200902

main85720-58010iGWS191200602-200709

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30430iGWS191200709-200901

main85710-53060iGWS191200902

main85710-58010iGWS191200602-200709

9010506260

main90105-06260

9010510315

main90105-10315

9016850040

main90168-50040

9151281025

main91512-81025

16 parts on this diagram · 1 diagram in section
