FLOOR SIDE MEMBER

1107MOUNTING

→ Go to FIG 11-07

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iGWS191200709

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iGWS191200602-200709

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-30010iGWS191200602-200709

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-30010iGWS191200602-200709

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30180iGWS191200709

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30160iGWS191200709

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30021iGWS191..RHD200709-201112

main57103-30030iGWS191..LHD200602-200709

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30061iGWS191200602-200709

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30080iGWS191200709

57111MEMBER, FRONT SIDE, RH

main57111-30092iGWS191200602-200709

57112MEMBER, FRONT SIDE, LH

main57112-30102iGWS191200602-200709

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGWS191200602-200709

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGWS191200602-200709

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iGWS191200602-200709

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iGWS191200602-200709

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGWS191200602-200709

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGWS191200602-200709

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGWS191200602-200709

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGWS191200709

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iGWS191200602-200709

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iGWS191200602-200709

57197BOX, TORQUE, FRONT RH

main57197-30040iGWS191200602-200709

57198BOX, TORQUE, FRONT LH

main57198-30041iGWS191200602-200709

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30101iGWS191200602-200709

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30091iGWS191200602-200709

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011iGWS191200602-200709

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-30050iGWS191200602-200709

57533BRACE, FRONT FLOOR, CENTER

main57533-30050iGWS191200602-200709

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30917iGWS191200602-200709

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30928iGWS191200602-200709

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-53020iGWS191200602-200709

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-53030iGWS191200602-200709

57623BPLATE. REAR FLOOR SIDE MEMBER, REAR RH

main57623-30030iGWS191200602-200709

57624APLATE. REAR FLOOR SIDE MEMBER, REAR LH

main57624-30030iGWS191200602-200709

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30040iGWS191200602-200709

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30050iGWS191200602-200709

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iGWS191200602-200709

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iGWS191200602-200709

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011506242

main90115-06242

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

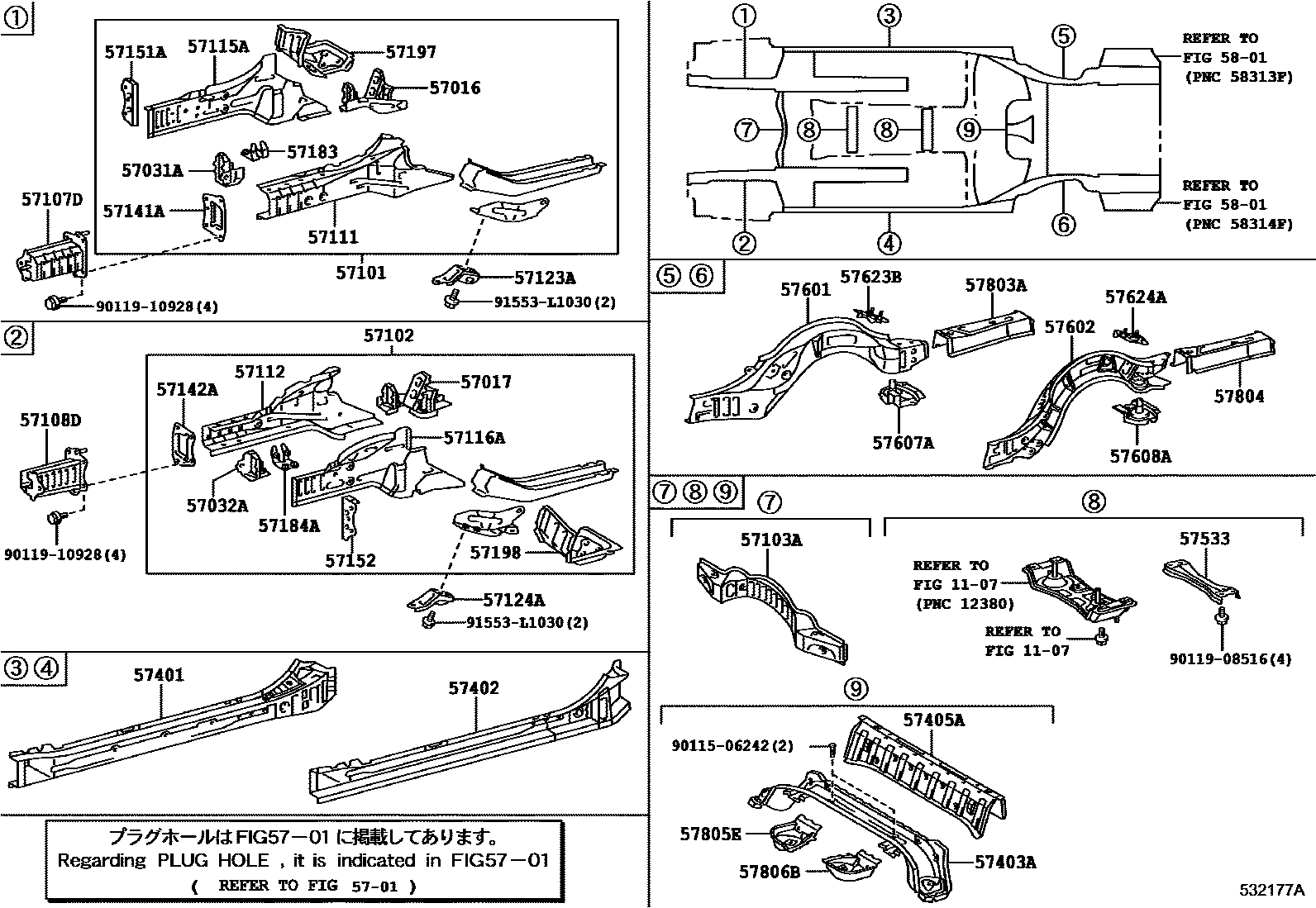

45 parts on this diagram · 1 diagram in section
