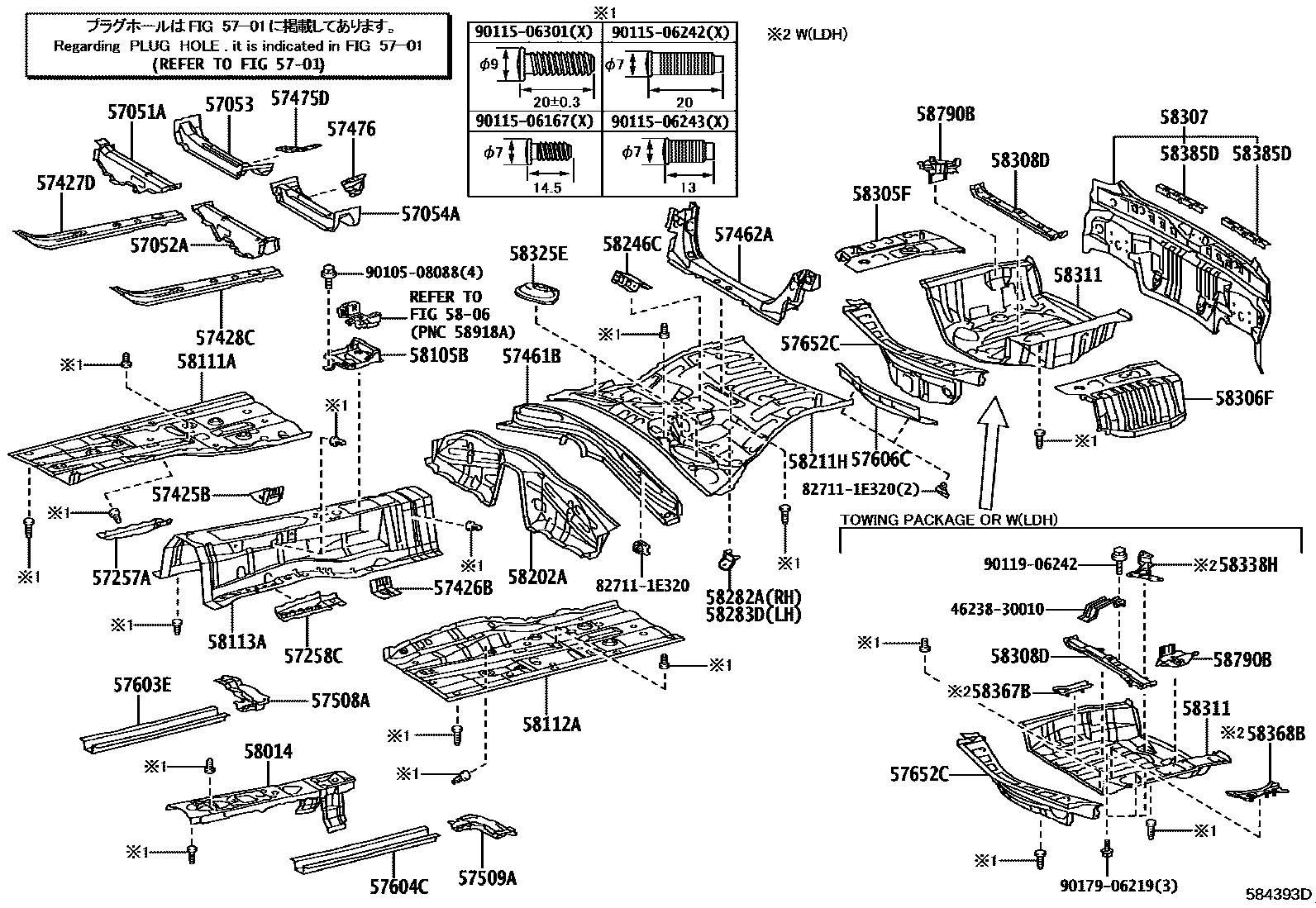

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR PANEL & LOWER BACK PANE0003 1FLOOR PANEL & LOWER BACK PANE0004 1FLOOR UNDER COVER

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30100iAWL10,GRL1#,GWL10201201-201510

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30100iARL10,AWL10,GWL10201510-201809

main57052-30110iGRL15201201-201510

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30080iARL10,AWL10,GRL16,GWL10201510-201809

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30080iARL10,AWL10,GRL16,GWL10201510-201809

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30041iAWL10,GRL11,GWL10201203-201405

main57257-30042iAWL10,GRL11,GWL10201405-201510

main57257-30050iGRL15201201-201312

main57257-30070iGRL15201401-201510

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57208-30020iGRL15201201-201312

main57208-30030iGRL15201401-201510

main57258-30091iAWL10,GRL11,GWL10201203-201510

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30030iAWL10,GRL1#,GWL10201201-201510

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30030iAWL10,GRL1#,GWL10201201-201510

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30040iAWL10,GRL11,GWL10201201-201311

main57427-30041iAWL10,GRL1#,GWL10201312-201510

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30040iAWL10,GRL1#,GWL10201201-201311

main57427-30041iAWL10,GRL1#,GWL10201312-201510

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-30121iAWL10,GRL1#,GWL10201201-201510

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-30070iGRL1#,GWL10201201-201212

main57405-30080iARL10,AWL10,GRL16,GWL10201801-201804

main57405-30081iARL10,AWL10,GRL16,GWL10201804-201809

main57405-53020iAWL10,GRL1#,GWL10201301-201510

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57455-30060iAWL10,GRL1#,GWL10201201-201510

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57456-30040iAWL10,GRL1#,GWL10201201-201510

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-30030iGRL1#,GWL10201201-201309

main57508-30031iAWL10,GRL1#,GWL10201310-201510

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-30030iGRL1#,GWL10201201-201309

main57509-30031iAWL10,GRL1#,GWL10201310-201510

57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57603-30070iAWL10,GRL1#,GWL10201201-201510

57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57603-30070iAWL10,GRL1#,GWL10201201-201510

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57653-30150iAWL10,GRL1#,GWL10201201-201510

main57653-30151iARL10,AWL10,GRL16,GWL10201801-201809

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30130iGRL1#201201-201510

main57652-30140supersedes 57652-30130iAWL10,GWL10; GRL11201203-201510

TOWING PACKAGE-1600KG

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-30110iARL10,AWL10,GWL10201510-201809

main58014-30130iGRL15201201-201307

main58014-30131iGRL15201308-201411

main58014-30132iGRL15201412-201510

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-30050iAWL10,GRL1#,GWL10201201-201510

58111APAN, FRONT FLOOR, RH

main58111-30450iGRL1#,GWL10201201-201309

main58111-30451iGRL15201310-201311

main58111-30460iGRL15201311-201510

main58111-30520iARL10,AWL10,GRL16,GWL10201510-201809

58112APANEL, FRONT FLOOR, LH

main58112-30161iGRL11,GWL10201203-201309

main58112-30162iAWL10,GRL11,GWL10201310-201510

main58112-30170iGRL15201201-201309

main58112-30171iGRL15201310-201510

main58112-30200iARL10,AWL10,GWL10201510-201809

main58112-30210iGRL16201510-201809

58113APANEL, FRONT FLOOR, CENTER

main58113-30190iARL10,AWL10,GWL10201510-201809

main58113-30200iGRL16201510-201809

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-30131iGRL1#,GWL10201201-201212

main58202-53010iAWL10,GRL1#,GWL10201301-201510

58211HPAN, CENTER FLOOR

main58211-30400iGRL1#201201-201510

main58211-30401iARL10,GRL16201707-201809

main58211-30410iAWL10,GWL10201203-201510

main58211-30411iAWL10,GWL10201707-201809

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30020iARL10,AWL10,GRL16,GWL10201510-201809

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-30040iAWL10,GRL1#,GWL10201201-201510

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-30030iAWL10,GRL1#,GWL10201201-201510

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-30230iAWL10,GRL1#,GWL10201201-201510

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-30220iGRL1#201201-201510

main58306-30230iAWL10,GWL10201203-201510

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30800iAWL10,GRL1#,GWL10201201-201510

main58307-30820iARL10,AWL10,GRL16,GWL10201510-201809

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-30020iGRL1#201201-201510

main58308-30030supersedes 58308-30020iAWL10,GWL10; GRL11201203-201510

TOWING PACKAGE-1600KG

58311PAN, REAR FLOOR

main58311-30350iGRL1#201201-201411

main58311-30351iGRL1#201412-201510

main58311-30380iGRL11; GWL10201203-201301

TOWING PACKAGE-1600KG

main58311-30381iGRL11; GRL15; GWL10201301-201411

TOWING PACKAGE-1000KG; TOWING PACKAGE-1600KG

main58311-30382supersedes 58311-30351iGRL11; GRL15; GWL10201412-201510

TOWING PACKAGE-1000KG; TOWING PACKAGE-1600KG

main58311-30401iAWL10; GWL10..LHD..STD201409-201411

THE CRAFTED LINE

main58311-30402iAWL10; GWL10..LHD..STD; GWL10..STD201412-201510

F SPORT; THE CRAFTED LINE

main58311-30400iGWL10..STD201203-201301

F SPORT

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30030×2iAWL10,GRL1#,GWL10201201-201510

58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH

main58338-30060iAWL10; GWL10..LHD..STD201409-201510

THE CRAFTED LINE

58367BBRACKET, FUEL TUBE

main58367-30100iARL10,AWL10; GWL10..STD201510-201809

F SPORT

58368BBRACKET, FUEL TUBE, NO.2

main58368-30060iAWL10; GWL10..LHD..STD201409-201501

THE CRAFTED LINE

main58368-30061iAWL10; GWL10..LHD..STD; GWL10..STD201502-201510

F SPORT; THE CRAFTED LINE

58385DBRACKET, REAR BUMPER COVER

main58385-30080×2iAWL10,GRL1#,GWL10201201-201510

58790BCARRIER ASSY, JACK

main58790-30030supersedes 58790-30040iAWL10,GWL10; GRL11201203-201510

TOWING PACKAGE-1600KG

main58790-30040iGRL1#201201-201510

4623830010PROTECTOR, PLUNGER LOCK PIN

main46238-30010

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010508088

main90105-08088

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011506301

main90115-06301

9011906242

main90119-06242

9017906219

main90179-06219

52 parts on this diagram · 4 diagrams in section
