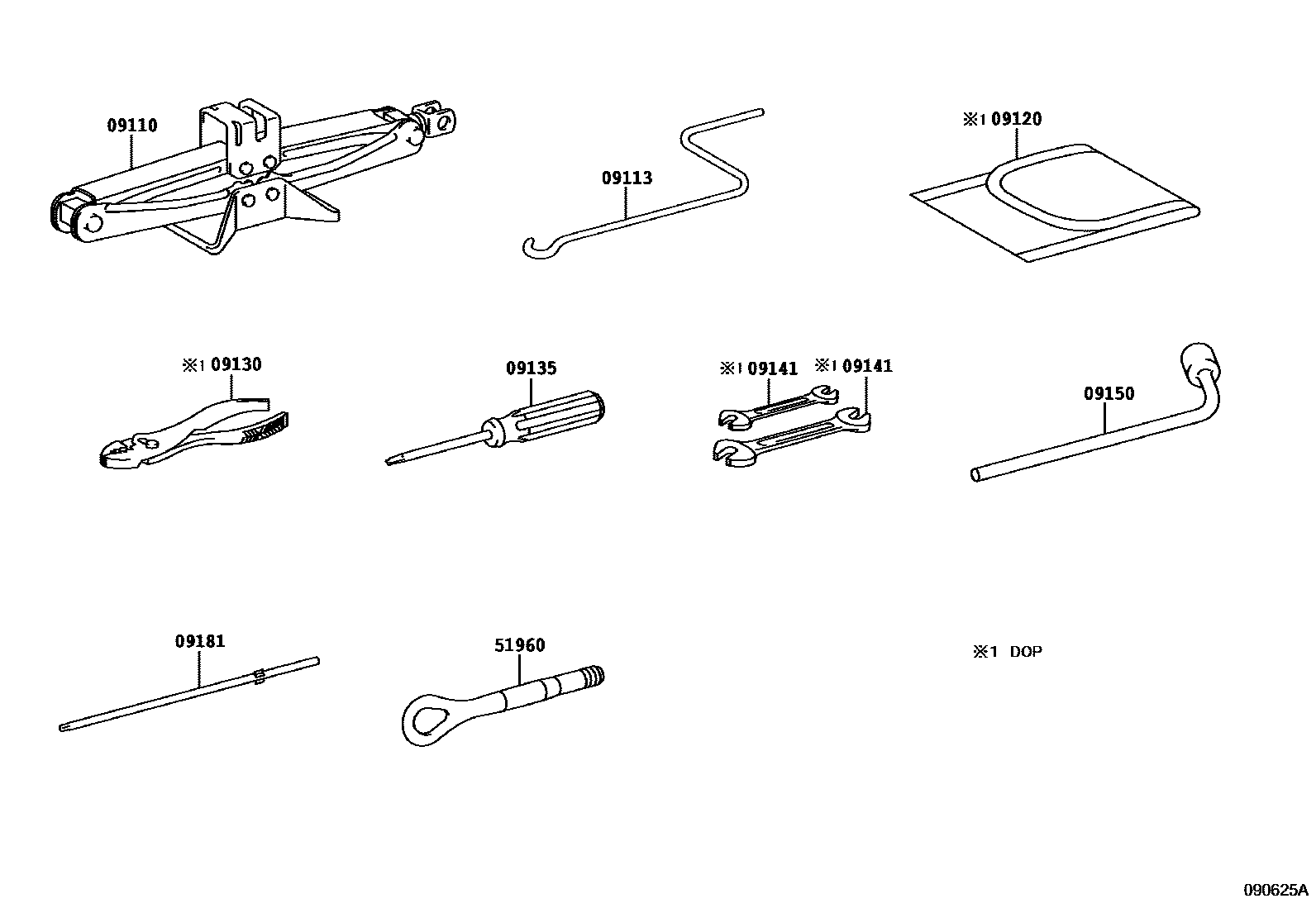

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-30160iAWL10,GRL1#,GWL10201201-201510

main09111-30180iARL10,AWL10,GRL16,GWL10201603-201809

09113HANDLE, JACK

main09113-30050iARL10,AWL10,GRL16,GWL10201510-201809

09120BAG, TOOL

main09120-24020iAWL10,GRL1#,GWL10201201-201510

TOOL(DOP)-BAG,SPANNER X 2,PLIERS

09130PLIERS

main09130-50040iAWL10,GRL1#,GWL10201201-201510

TOOL(DOP)-BAG,SPANNER X 2,PLIERS

09135DRIVER, SCREW

main09135-50060iARL10,AWL10,GRL16,GWL10201510-201809

09141SPANNER

main09141-60010iAWL10,GRL1#,GWL10201201-201510

8 X 10,TOOL(DOP)-BAG,SPANNER X 2,PLIERS

main09141-60020iAWL10,GRL1#,GWL10201201-201510

12 X 14,TOOL(DOP)-BAG,SPANNER X 2,PLIERS

09150WRENCH, HUB NUT BOX

main09150-48010iGRL1#,GWL10201201-201207

main09150-76020iAWL10,GRL1#,GWL10201208-201510

09181ROD, PARKING BRAKE RELEASE

main09181-30010iAWL10,GRL1#,GWL10201201-201510

51960HOOK ASSY, FRONT

main51961-53010iAWL10,GRL1#,GWL10201201-201510

9 parts on this diagram · 2 diagrams in section
