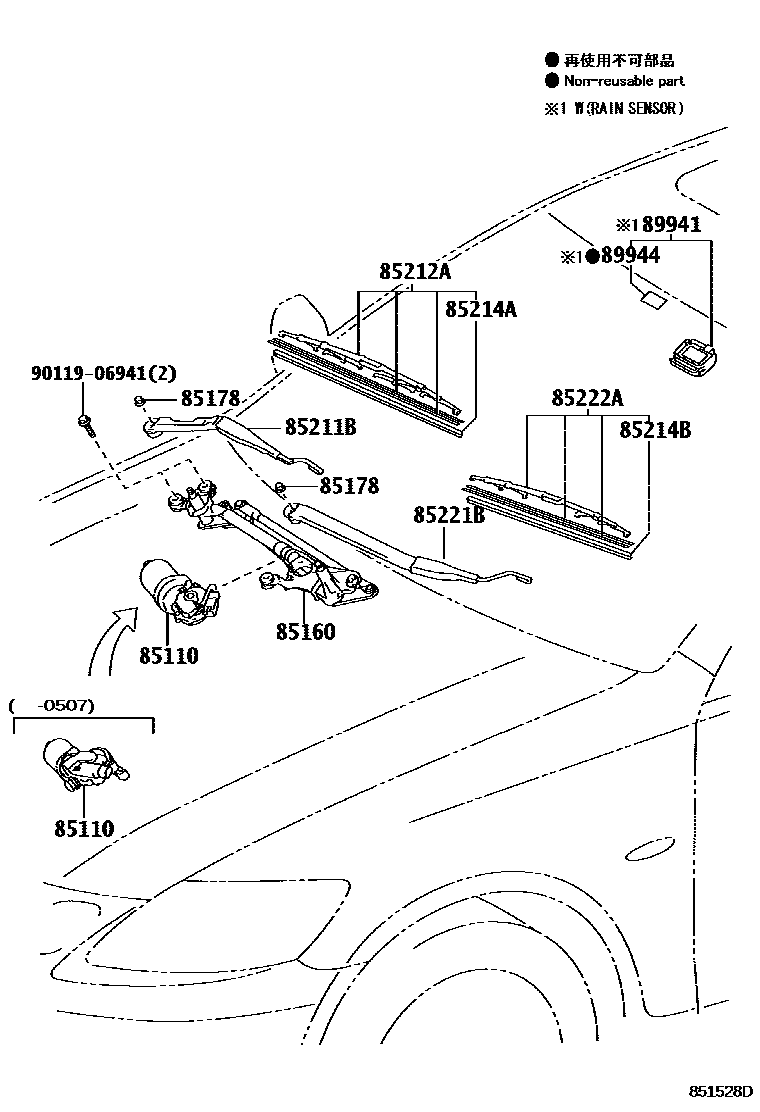

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30510iGRS190,UZS190..RHD200501-200507

main85110-30520iGRS190,UZS190..LHD200501-200709

main85110-30540iGRS190,UZS190..RHD200507-200709

main85110-30590iGRS19#,URS190,UZS190..LHD200709

main85110-30600iGRS190,URS190..RHD200709

85160LINK ASSY, WINDSHIELD WIPER

main85150-30570iGRS190,UZS190..RHD200501-200507

main85150-30580iGRS190,URS190,UZS190..LHD200709-200710

main85150-30630iGRS190,UZS190..RHD200507-200709

main85150-30680iGRS190,URS190..RHD200710

main85150-30690iGRS19#,URS190,UZS190..LHD200710

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGRS190,UZS190200501-200709

85211BARM, FRONT WIPER, RH

main85211-30660iGRS190..GEN200501-200508

main85211-30670iGRS190,UZS190..RHD..EUR200501-200508

main85211-30680iGRS190,UZS190..LHD200501-200508

main85211-30710iGRS190..GEN; GRS190..RHD..EUR200709

SINGAPORE SPEC

main85211-30720iGRS190,URS190..RHD..EUR200709

main85211-30730iGRS190,UZS190..LHD200508-200709

85212ABLADE, FR WIPER, RH

main85212-30370iGRS190..GEN200501-200508

main85212-30380iGRS190,UZS190..RHD..EUR200501-200508

main85212-30410iGRS190,URS190..RHD200709-201112

main85212-33230iGRS190,UZS190..LHD200508-200609

main85212-33231iGRS19#,URS190,UZS190..LHD200709-201112

main85212-48040iGRS190,UZS190..LHD200501-200508

85214ARUBBER, WIPER, RH

main85214-30380iGRS190,URS190..RHD200709

main85214-30390iGRS190,UZS190..LHD200508-200709

main85214-48020iGRS190,UZS190..LHD200501-200508

main85214-50100iGRS190,UZS190..RHD200501-200508

85214BRUBBER, WIPER, LH

main85214-30380iGRS190,UZS190..LHD200508-200709

main85214-30390iGRS190,UZS190..RHD200508-200709

main85214-48020iGRS190,UZS190..RHD200501-200508

main85214-50100iGRS190,UZS190..LHD200501-200508

85221BARM, FRONT WIPER, LH

main85221-30560iGRS190,UZS190..RHD200501-200508

main85221-30570iGRS190,UZS190..GCC200501-200508

main85221-30580iGRS190,UZS190..LHD..EUR; GRS190..GCC200501-200508

CHINA SPEC

main85221-30610iGRS190,UZS190..RHD200508-200709

main85221-30620iGRS190,URS190,UZS190..GCC; URS190..LHD..EUR200709

TAIWAN SPEC

main85221-30630iGRS190,UZS190..LHD..EUR; GRS190..GCC200508-200709

CHINA SPEC

85222ABLADE, FR WIPER, LH

main85222-24080iGRS190,UZS190..GCC200501-200508

main85222-30560iGRS190,UZS190..LHD..EUR; GRS190..GCC200501-200508

CHINA SPEC

main85222-30580iGRS190,URS190..RHD200709-201112

main85222-33240iGRS190,UZS190..LHD200508-200609

main85222-33241iGRS190,UZS190..LHD200610-200709

main85222-48030iGRS190,UZS190..RHD200501-200508

89941SENSOR, RAIN

main89941-30012iGRS190,URS190..RHD..EUR; GRS190..GCC,GEN;GRS190..LHD..EUR;URS190,UZS190..LHD200709-200808

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-30010iGRS190,UZS190200501-200508

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-30011iGRS190,UZS190200509-200709

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-30013iGRS19#,URS190200809-200909

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main89941-30014iGRS19#,URS190200909

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-30020iGRS190,URS190..RHD..EUR200709-200809

main89944-50011iGRS190,UZS190200501-200509

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906941

main90119-06941

12 parts on this diagram · 4 diagrams in section
