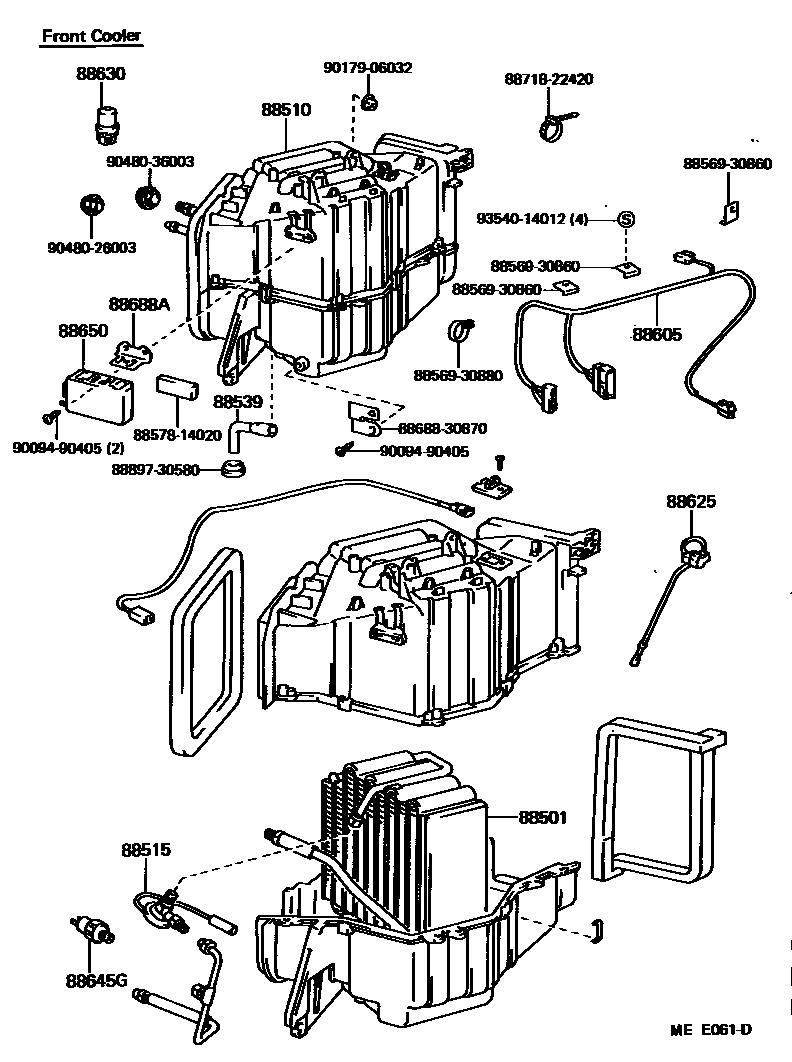

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1SINGAPORE SPEC 0003 1 0004 1 0005 1 0006 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30580iMS12#..(HT,SED)..(ROY,SAL)198308-198708

RR COOLER

main88501-30590iMS12#,YS120..RHD198308-198601

FR COOLER

main88501-30591iMS12#,YS120..RHD198601-198708

FR COOLER

main88501-30600iLS120,MS12#,YS120..LHD198308-198601

FR COOLER

main88501-30601iLS120,MS122,125,YS120..LHD198601-198708

FR COOLER

main88501-30610iLS120..RHD198308-198601

main88501-30611iLS120..RHD198601-198708

88510UNIT ASSY, COOLER

main88510-30860iMS12#..SED198308-198509

RR COOLER

main88510-30880iMS12#..RHD..ROY198308-198504

FR COOLER

main88510-30881iMS12#..RHD..ROY198504-198509

FR COOLER

main88510-30890iMS12#..LHD..ROY198308-198504

FR COOLER

main88510-30891iMS122,125..LHD..ROY198504-198509

FR COOLER

main88510-3A010iMS122..RHD..SAL198308-198708

FR COOLER,W/HEATER

main88510-3A020iMS122,123..LHD..SAL198308-198509

FR COOLER,W/HEATER

main88510-3A030iMS122..RHD..SAL; YS120..RHD198308-198708

FR COOLER; FR COOLER,W/*BV

main88510-3A040iMS122..LHD..(DLX,SAL); YS120..LHD198308-198708

FR COOLER; FR COOLER,W/*BV

main88510-3A070iLS120..RHD198308-198708

main88510-3A080iLS120..LHD198308-198708

main88510-3A090iMS122..RHD..4FC..SAL198401-198708

FR COOLER,W/*BV,SINGAPORE SPEC

main88510-3A110iMS12#..RHD..ROY198509-198708

FR COOLER

main88510-3A120iMS122,125..LHD..ROY198509-198708

FR COOLER

main88510-3A150iMS12#..(HT,SED)..(ROY,SAL)198509-198708

RR COOLER

88515VALVE, COOLER EXPANSION

main88515-20040iLS120,YS120; MS122..SAL198308-198708

FR COOLER; FR COOLER,W/*BV

main88515-22070iMS12#..RHD198308-198509

FR COOLER,W/HEATER

main88515-30310iMS12#..(HT,SED)..(ROY,SAL)198308-198708

RR COOLER

main88515-30320iMS12#..RHD198510-198708

FR COOLER,W/HEATER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30580iMS12#..(HT,SED)..(ROY,SAL)198308-198708

RR COOLER

main88539-30590iLS120,MS12#,YS120198308-198708

FR COOLER

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88608-30470iMS12#..(HT,SED)..(ROY,SAL)198308-198708

RR COOLER

main88608-30480iMS12#..RHD..ROY198308-198504

main88608-30481iMS12#..RHD..ROY198504-198509

main88608-30490iMS12#..LHD..ROY198308-198504

main88608-30491iMS122,125..LHD..ROY198504-198509

main88608-30500iMS122..DLX,SAL;MS122..LHD..ROY; YS120;LS120..4F,5F;LS120..LHD..STD198308-198708

W/BOOST VENTILATOR

main88608-30510iLS120..RHD..4H198308-198708

main88608-30550iMS12#..RHD..ROY198509-198708

main88608-30560iMS122,125..LHD..ROY198509-198708

88625THERMISTOR, COOLER, NO.1

main88625-20040iLS120,YS120198308-198708

FR COOLER

88630RELAY ASSY, COOLER

main90987-02002iMS12#..(HT,SED)..(ROY,SAL)198509-198708

M4 TYPE,RR COOLER

main90987-02004iMS12#..SED198308-198509

M4 TYPE,RR COOLER

main90987-03001×3iLS120,MS12#,YS120198308-198708

B4 TYPE,FR COOLER

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLS120..RHD..4H198308-198605

FR COOLER

main88650-14051iMS122,125198509-198708

FR COOLER,W/*BV

main88650-30450iMS12#..(HT,SED)..(ROY,SAL)198308-198708

RR COOLER

main88650-30470iMS12#..ROY198308-198509

FR COOLER

main88650-30520iLS120..RHD..4H198605-198708

FR COOLER

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-30830iLS120198308-198708

main88688-3A060iMS12#..RHD..ROY198509-198708

8856930860CLAMP (FOR COOLER RELAY)

main88569-30860

8856930880CLAMP (FOR COOLER RELAY)

main88569-30880

8857814020PAKING, COOLER AIR DUCT

main88578-14020

8868830870BRACKET, COOLER DIAPHRAGM

main88688-30870

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8889730580VALVE, COOLER MAGNET

main88897-30580

9009490405

main90094-90405

9017906032

main90179-06032

9048026003

main90480-26003

9048036003

main90480-36003

9354014012

main93540-14012

20 parts on this diagram · 5 diagrams in section
