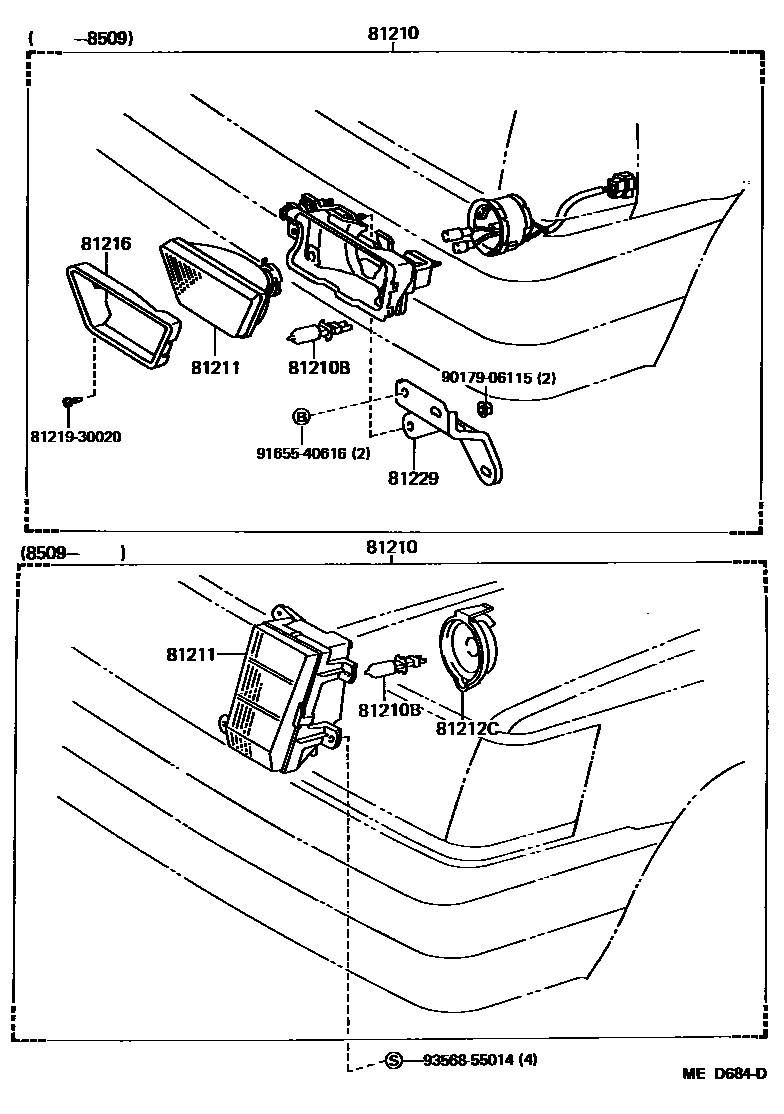

FOG LAMP

81210LAMP ASSY, FOG

main81210-30031iMS122..HT198509-198708

RH

main81210-30061iMS122..(SED,WG)..(DLX,SAL)198509-198708

RH

main81210-30070iMS122,125..SED..ROY198509-198708

RH

main81210-30080iMS125..HT198509-198708

RH

main81210-39125iMS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)198308-198509

RH

main81210-39135iMS122..WG;LS120..SAL198308-198509

RH

main81220-30021iMS122..HT198509-198708

LH

main81220-30051iMS122..(SED,WG)..(DLX,SAL)198509-198708

LH

main81220-30060iMS122,125..SED..ROY198509-198708

LH

main81220-30070iMS125..HT198509-198708

LH

main81220-39065iMS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)198308-198509

LH

main81220-39075iMS122..WG;LS120..SAL198308-198509

LH

81210BBULB, FOG LAMP

main90981-13031×2iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

12V 55W,HALOGEN,12V 55W

81211LENS, FOG LAMP

main81211-30020iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

RH

main81211-30031iMS122..HT198509-198708

RH

main81211-30061iMS122..(SED,WG)..(DLX,SAL)198509-198708

RH

main81211-30070iMS122,125..SED..ROY198509-198708

RH

main81211-30080iMS125..HT198509-198708

RH

main81221-30010iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

LH

main81221-30021iMS122..HT198509-198708

LH

main81221-30051iMS122..(SED,WG)..(DLX,SAL)198509-198708

LH

main81221-30060iMS122,125..SED..ROY198509-198708

LH

main81221-30070iMS125..HT198509-198708

LH

81212CCOVER, FOG LAMP

main81212-30030×2iMS122,125198509-198708

81216RIM, FOG LAMP, NO.1

main81216-30020iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

RH

main81226-30010iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

LH

81229BRACKET, FOG LAMP

main52125-30020×2iMS122..WG;LS120..SAL198308-198509

main52125-30030×2iMS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)198308-198509

8121930020BOLT, FOG LAMP

main81219-30020

9017906115

main90179-06115

9165540616

main91655-40616

9356855014

main93568-55014

10 parts on this diagram · 1 diagram in section
