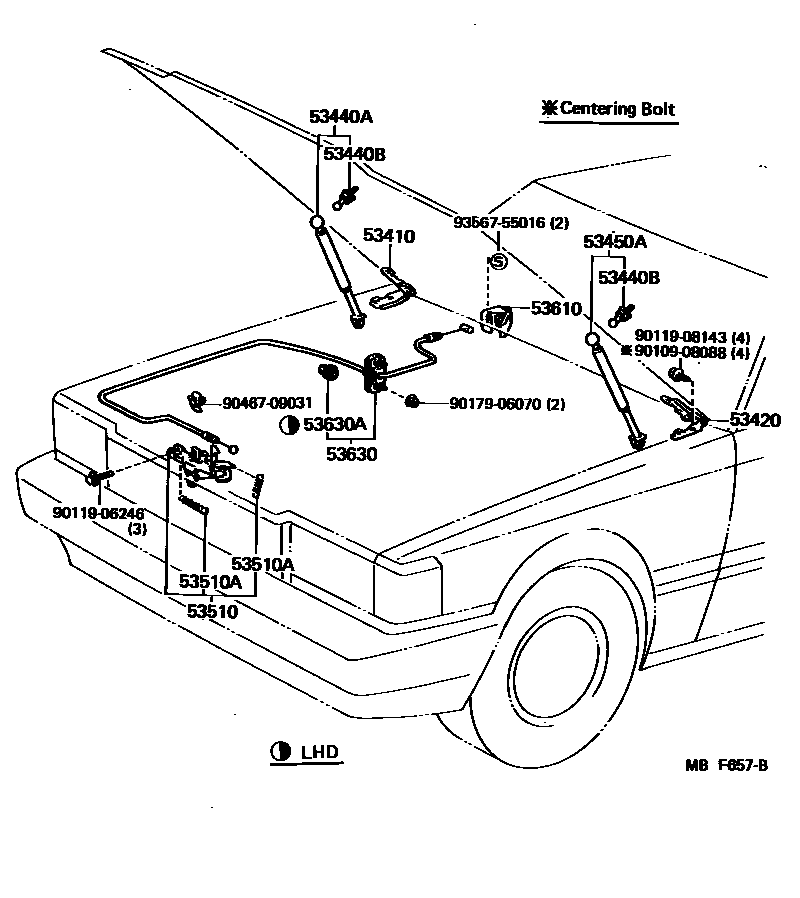

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-30060iLS120,MS12#,YS120198308-198708

53420HINGE ASSY, HOOD, LH

main53420-30060iLS120,MS12#,YS120198308-198708

53440ASUPPORT ASSY, HOOD, RH

main53440-39025iLS120,MS12#,YS120198308-198708

53440BBOLT, HOOD SUPPORT, NO.1

main68961-22010iLS120,MS12#,YS120198410-198708

main68961-30010iLS120,MS12#,YS120198308-198410

53450ASUPPORT ASSY, HOOD, LH

main53450-39025iLS120,MS12#,YS120198308-198708

53510LOCK ASSY, HOOD

main53510-30120iLS120,MS12#,YS120..RHD198308-198708

main53510-30130iLS120,MS12#,YS120..LHD198308-198708

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iLS120,MS12#,YS120198308-198708

WD=0.9,L=40

main90506-18024iLS120,MS12#,YS120198308-198708

L=54

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-30040-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main53601-30040-04iLS120,MS12#,YS120..RHD198308-198604

BLUE,BLUE,TRIM8#

main53601-30040-05iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

main53601-30040-06iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

main53601-30040-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

main53601-30040-14iLS120,MS12#,YS120..RHD198604-198708

BLUE,BLUE,TRIM8#

main53601-30050-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main53601-30050-04iLS120,MS12#,YS120..SED..LHD198308-198604

BLUE,BLUE,TRIM8#

main53601-30050-05iLS120,MS12#,YS120..LHD198308-198509

BEIGE,BEIGE,TRIM4#

main53601-30050-06iMS125..SED..LHD;LS120,MS122,YS120..(HT,SED)..LHD198509-198708

BROWN,BROWN,TRIM4#

main53601-30050-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main53601-30050-14iLS120,MS122,125,YS120..LHD198604-198708

BLUE,BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30120iLS120,MS12#,YS120..RHD198308-198708

main53630-30140iLS120,MS12#,YS120..LHD198308-198708

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15194iLS120,MS12#,YS120..LHD198308-198708

9010908088

main90109-08088

9011906246

main90119-06246

9011908143

main90119-08143

9017906070

main90179-06070

9046709031

main90467-09031

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
