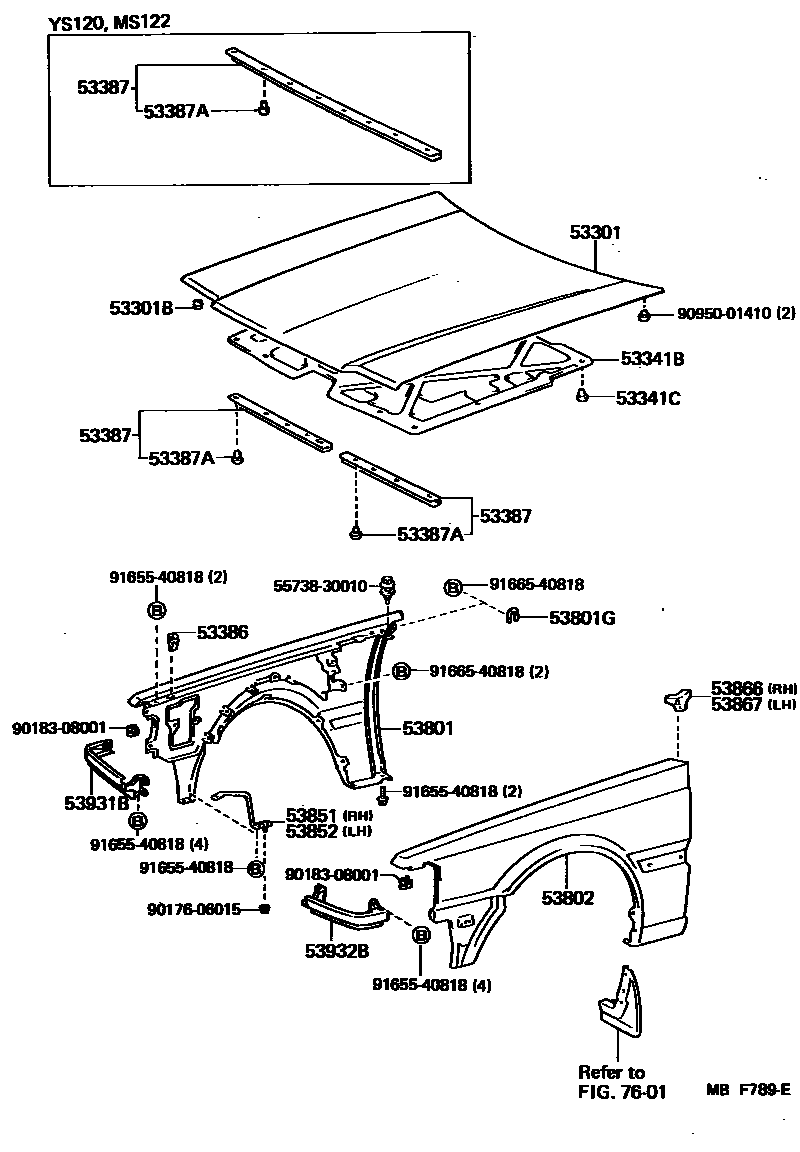

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-30100iLS120,MS12#,YS120..ARL,GEN,SAA198308-198509

main53301-30110iMS123..SAL198308-198509

main53301-30140iMS122,125..(SED,WG)..SAA198509-198708

MIDDLE EAST SPEC

main53301-30150iLS120,MS12#,YS120..ARL,GEN198509-198708

main53301-30170iMS122,125..HT198509-198708

53301BCUSHION, HOOD BUMPER

main90541-15004iLS120,MS12#,YS120198511-198708

main90541-15111iLS120,MS12#,YS120198308-198511

53341BINSULATOR, HOOD

main53341-30070iMS12#,YS120198308-198708

main53341-30090iLS120198308-198509

main53341-30091iLS120198509-198708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008iLS120,MS12#,YS120198308-198608

main90467-09008-01iLS120,MS12#,YS120198608-198708

BLACK

53386BUMPER, HOOD, REAR

main53382-30060iLS120,MS12#,YS120198308-198708

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-30050iLS120,MS123,125198308-198708

RH

main53381-30060iMS122,YS120198308-198708

main53382-30070iLS120,MS123,125198308-198708

LH

53387ACLIP(FOR HOOD TO RADIATOR SUPPORT SET)

main90467-08011iLS120,MS123,125198308-198708

53801FENDER SUB-ASSY, FRONT RH

main53801-3A140iLS120,YS120..STD198308-198507

main53801-3A160iMS122..WG198308-198509

main53801-3A161iMS122..WG198509-198708

main53801-3A270iMS123..SAL198308-198509

*GIS

main53801-3A270iLS120,YS120..STD198507-198509

main53801-3A271iLS120,MS122,YS120..DLX,STD198509-198708

main53801-3A390iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

*GIS,W/FENDER MARKER

main53801-3A391iMS12#..SED..(ROY,SAL)198509-198708

main53801-3A490iMS122,125..HT198509-198708

53801GSPACER, FRONT FENDER TO COWL PANEL

main53878-30010iLS120,MS12#,YS120198308-198708

53802FENDER SUB-ASSY, FRONT LH

main53802-30830iLS120,YS120..STD198308-198507

main53802-30850iMS122..WG198308-198509

main53802-30851iMS122..WG198509-198708

main53802-3A110iMS123..SAL198308-198509

*GIS

main53802-3A110iLS120,YS120..STD198507-198509

main53802-3A111iLS120,MS122,YS120..DLX,STD198509-198708

main53802-3A190iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

*GIS,W/FENDER MARKER

main53802-3A191iMS12#..SED..(ROY,SAL)198509-198708

main53802-3A290iMS122,125..HT198509-198708

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-30010iLS120,MS12#,YS120198308-198708

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-30010iLS120,MS12#,YS120198308-198708

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30010iLS120,MS12#,YS120..SED,WG198308-198708

main53866-30020iMS122,125..HT198509-198708

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30010iLS120,MS12#,YS120..SED,WG198308-198708

main53867-30020iMS122,125..HT198509-198708

53931BPANEL, FRONT END, RH

main53903-30161iMS122,125..HT198509-198708

main53903-30170iLS120,MS12#,YS120..SED,WG198509-198708

53932BPANEL, FRONT END, LH

main53904-30161iMS122,125..HT198509-198708

main53904-30170iLS120,MS12#,YS120..SED,WG198509-198708

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

5573830010GARNISH, COWL VENTILATOR, LH

main55738-30010

9017606015

main90176-06015

9018308001

main90183-08001

9095001410

main90950-01410

9165540818

main91655-40818

9166540818

main91665-40818

23 parts on this diagram · 1 diagram in section
